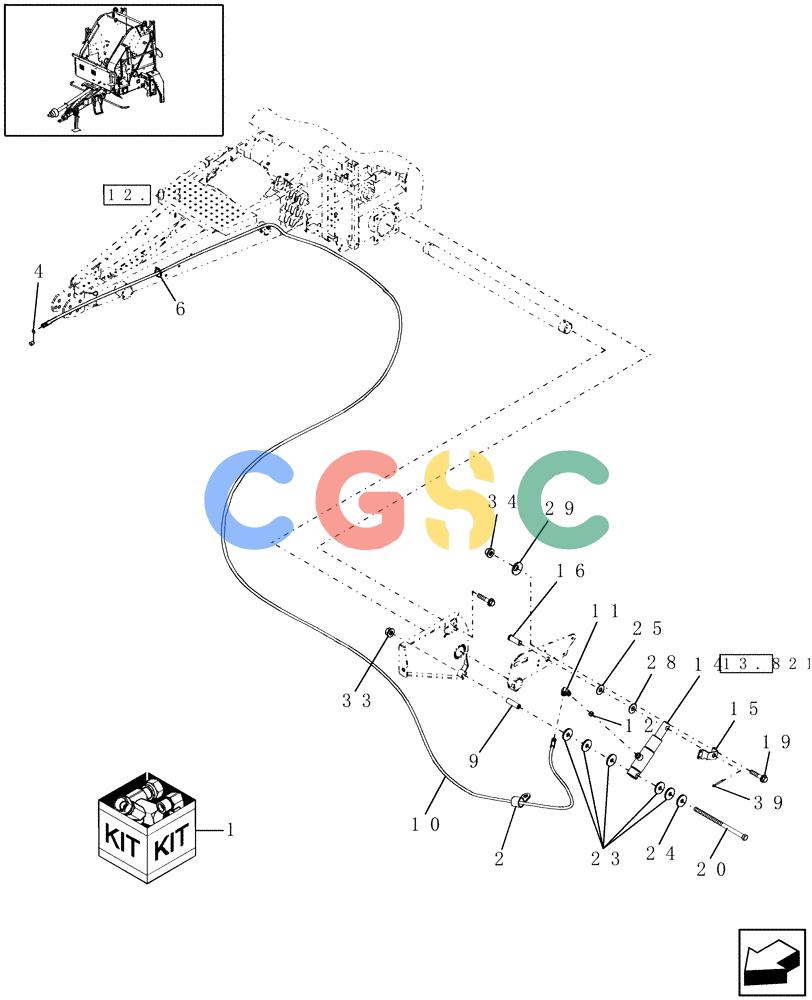

| 1. |
86643770
|
[1] |
DIA KIT, HARVESTER
|
NH
Hydraulic Lift, Pickup, Includes: Installation Instructions Superseded by part number: 87347870
|
| 2. |
515-22159
|
[1] |
CLAMP,5/8", Insul, 5/16" Bolt
|
CAS
Superseded by part number: 9706748
|
| 3. |
173011
|
[1] |
GROMMET,1” ID x 1.750” OD x .500” Tk
|
NH
1-3/4" OD x 1" ID
|
| 4. |
87017806
|
[1] |
DUST CAP,Green
|
PA
Green Superseded by part number: 84819677
|
| 6. |
263117
|
[6] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 9. |
87016310
|
[1] |
SPACER
|
PA
|
| 10. |
86836356
|
[1] |
HOSE,9.53mm ID x 4673.6mm L, SAE 100R17
|
NH
|
| 11. |
218-5105
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 40 Superseded by part number: 76344, 72186128
|
| 12. |
261066
|
[1] |
ORIFICE,9/16" - 18, 0.813" Orifice
|
NH
.032"
|
| 14. |
87019166
|
[1] |
HYDRAULIC CYLINDER
|
RAC
Pickup Lift Superseded by part number: 47583052
|
| 15. |
86705824
|
[1] |
CHANNEL
|
NH
|
| 16. |
514112
|
[1] |
PIN
|
NH
1" x 2-3/4"
|
| 19. |
844-8025
|
[3] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 20. |
814-12120
|
[1] |
BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8
|
CAS
Superseded by part number: 309308
|
| 23. |
86611401
|
[1] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
| 24. |
9511052
|
[1] |
WASHER,13.5mm ID x 44mm OD x 4mm Thk
|
NH
|
| 25. |
27318
|
[1] |
WASHER,26mm ID x 51mm OD x 1.5mm Thk
|
NH
.060" Thick
|
| 28. |
495-11106
|
[1] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 29. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 33. |
832-46412
|
[1] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 34. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 39. |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 40. |
237-6006
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
CAS
Superseded by part number: 9617873
|
