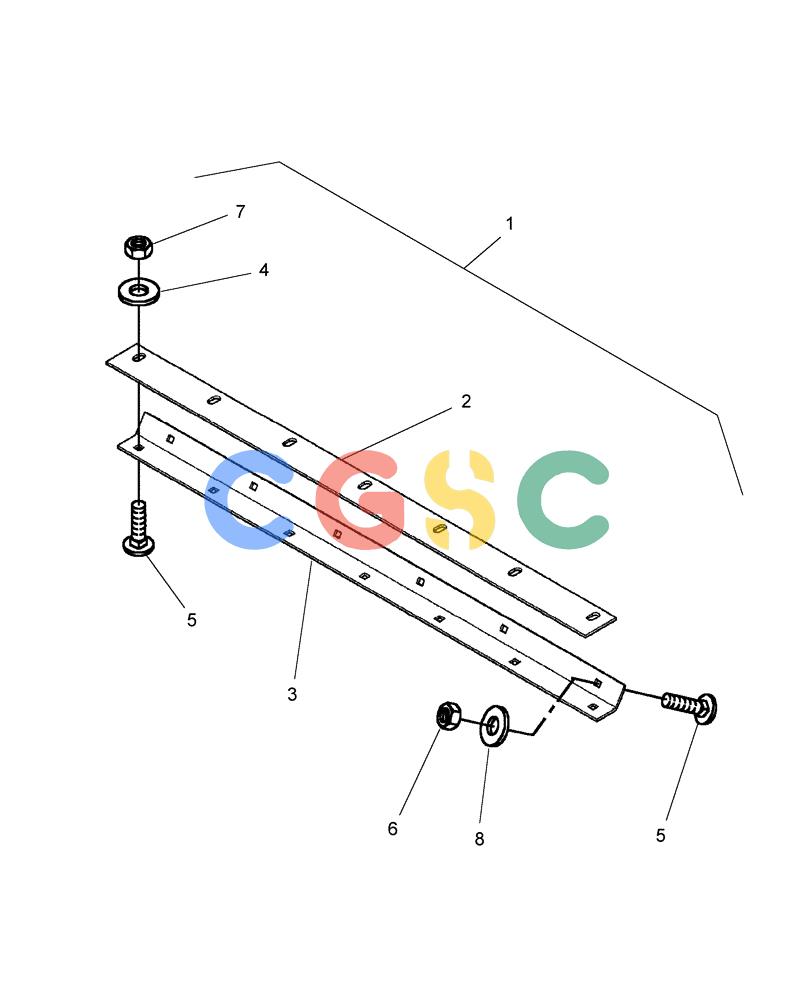

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.59) - DUCKBILL TRASH BAFFLE KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87056443
|
[1] |
DIA KIT, HARVESTER
|
PA
Duckbill Trash Baffle, Includes: Installation Instructions Superseded by part number: 87736321
|
| 2. |
87049772
|
[1] |
RUBBER STRIP
|
PA
Superseded by part number: 87580069
|
| 3. |
87049771
|
[1] |
ANGLE
|
PA
Superseded by part number: 87580069
|
| 4. |
140040
|
[7] |
WASHER,6.6mm ID x 22mm OD x 2mm Thk
|
ZED
|
| 5. |
811-6016
|
[13] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 6. |
825-1406
|
[6] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| 7. |
832-46406
|
[7] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 8. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
