纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.654[03]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 784110231 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
331 次

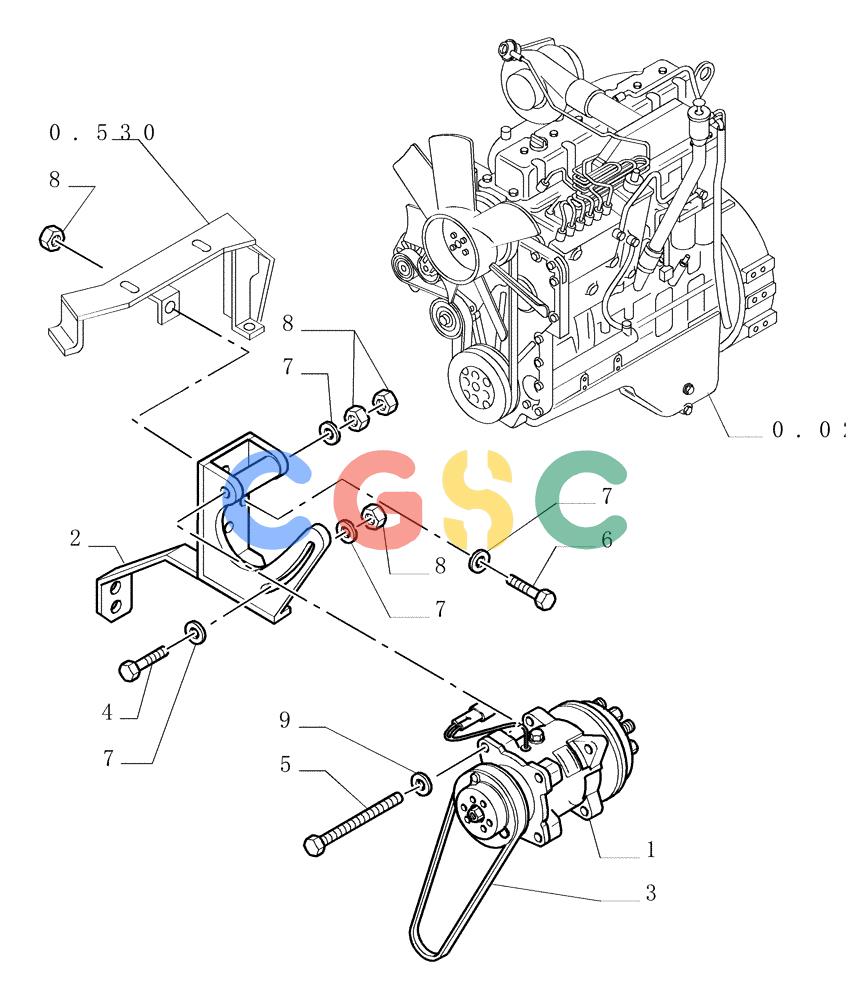

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047005 | [1] | AIRCOND. COMPRESSOR | LEC |
| . . | 76047005R | [1] | REMAN-COMPRESSOR | LECDC180.B TIER 2 (3/03-) |
| . . | 76047005C | [1] | CORE-COMPRESSOR | LECReturn Number |
| 2. | 76080540 | [1] | SUPPORT | LEC- COMPRESSOR |
| 3. | 76080876 | [1] | BELT,13.00 mm W x 1367.00 mm L | LEC Superseded by part number: 87535206 |
| 4. | 11107231 | [1] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 5. | 11108831 | [1] | BOLT,Hex, M10 x 130mm, Cl 10.9 | LEC Superseded by part number: 84577051 |
| 6. | 11106631 | [1] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 7. | 14496631 | [5] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 12626231 | [1] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
