纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.654[04]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 784110231 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
436 次

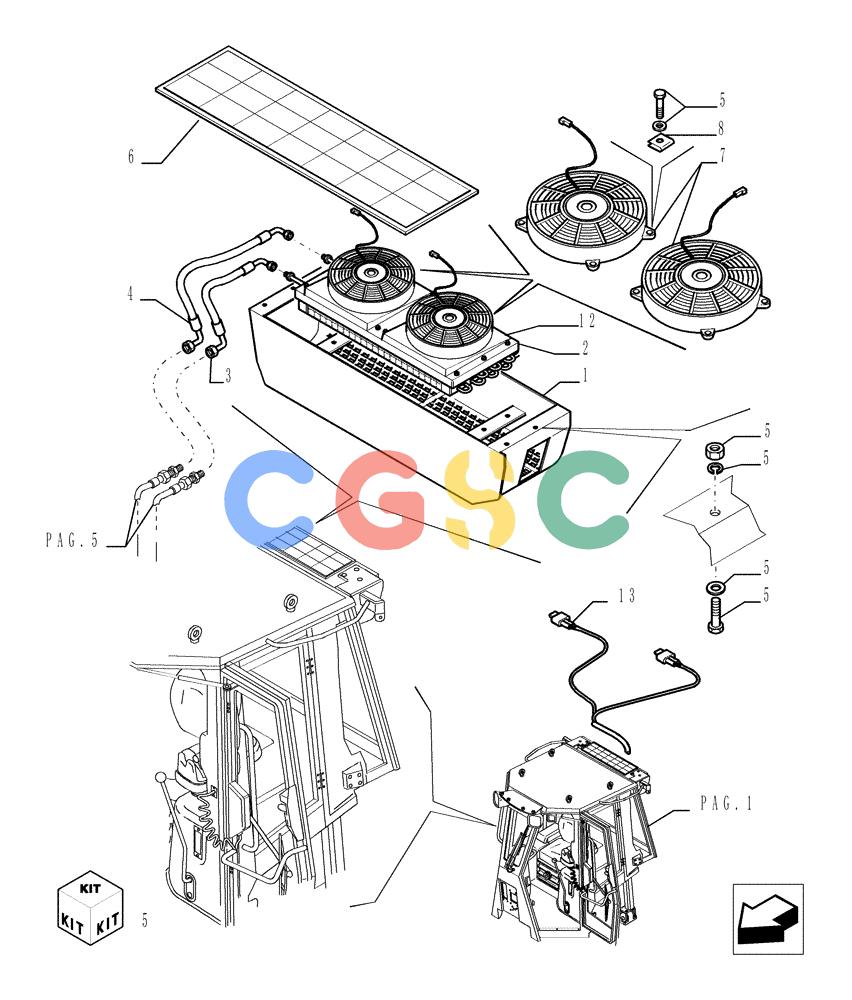

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092236 | [1] | FRAME | LEC |
| 2. | 76092221 | [1] | CONDENSER | LEC- ASSY |
| 3. | 76092230 | [1] | HOSE | LEC13/32" |
| 4. | 76092229 | [1] | HOSE | LEC5/16" |
| 5. | 76093609 | [4] | KIT | LEC10X30 |
| 6. | 76093606 | [1] | GRILLE | LEC |
| 7. | 87530578 | [2] | BLOWER | LEC |
| 8. | 76092247 | [8] | SPRING | LECM6 |
| 12. | 76093605 | [1] | SHROUD | LEC Superseded by part number: 87328201 |
| 13. | 76301182 | [1] | WIRE HARNESS | LEC |
