纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.654[05]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 784110231 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
550 次

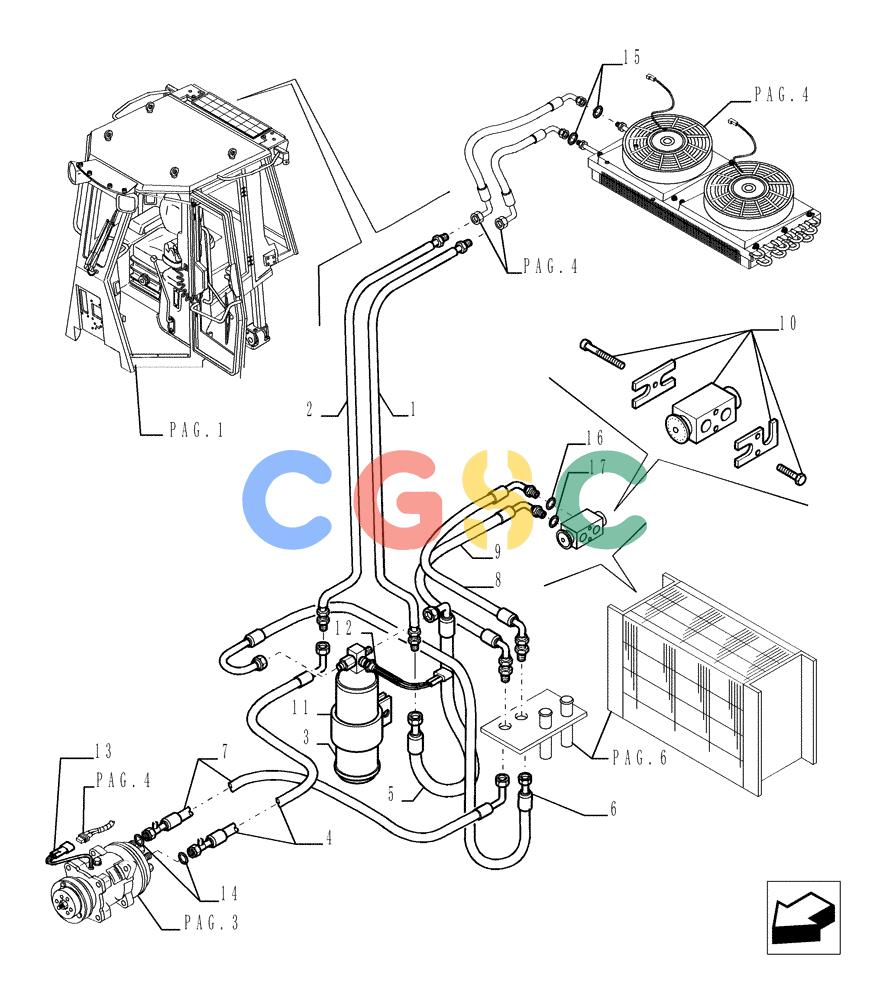

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76076701 | [1] | TUBE | LEC3/4" |
| 2. | 76076702 | [1] | TUBE | LEC5/8" |
| 3. | 76092215 | [1] | RECEIVER-DRIER | LEC |
| 4. | 76092211 | [1] | HOSE | LEC |
| 5. | 76092228 | [1] | HOSE | LEC |
| 6. | 76092227 | [1] | FLEXIBLE HOSE | LEC5/16 |
| 7. | 76092210 | [1] | FLEXIBLE HOSE | LEC |
| 8. | 76092226 | [1] | FLEXIBLE HOSE | LECG6 |
| 9. | 76092232 | [1] | FLEXIBLE HOSE | LECG10 |
| 10. | 76092223 | [1] | VALVE | LEC- KIT EXPANSION VALVE Superseded by part number: 87556059 |
| 11. | 76092216 | [1] | BRACKET | LEC |
| 12. | 76089531 | [1] | SENSOR | LEC |
| 14. | 14453281 | [2] | O-RING,14mm ID x 1.78" Width | LEC |
| 15. | 14453081 | [2] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro | LEC |
| 16. | 14452881 | [1] | O-RING,7.65mm ID x 1.78" Width | JES Superseded by part number: 17277881 |
| 17. | 14453481 | [1] | O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro | MKT Superseded by part number: 17278481 |
