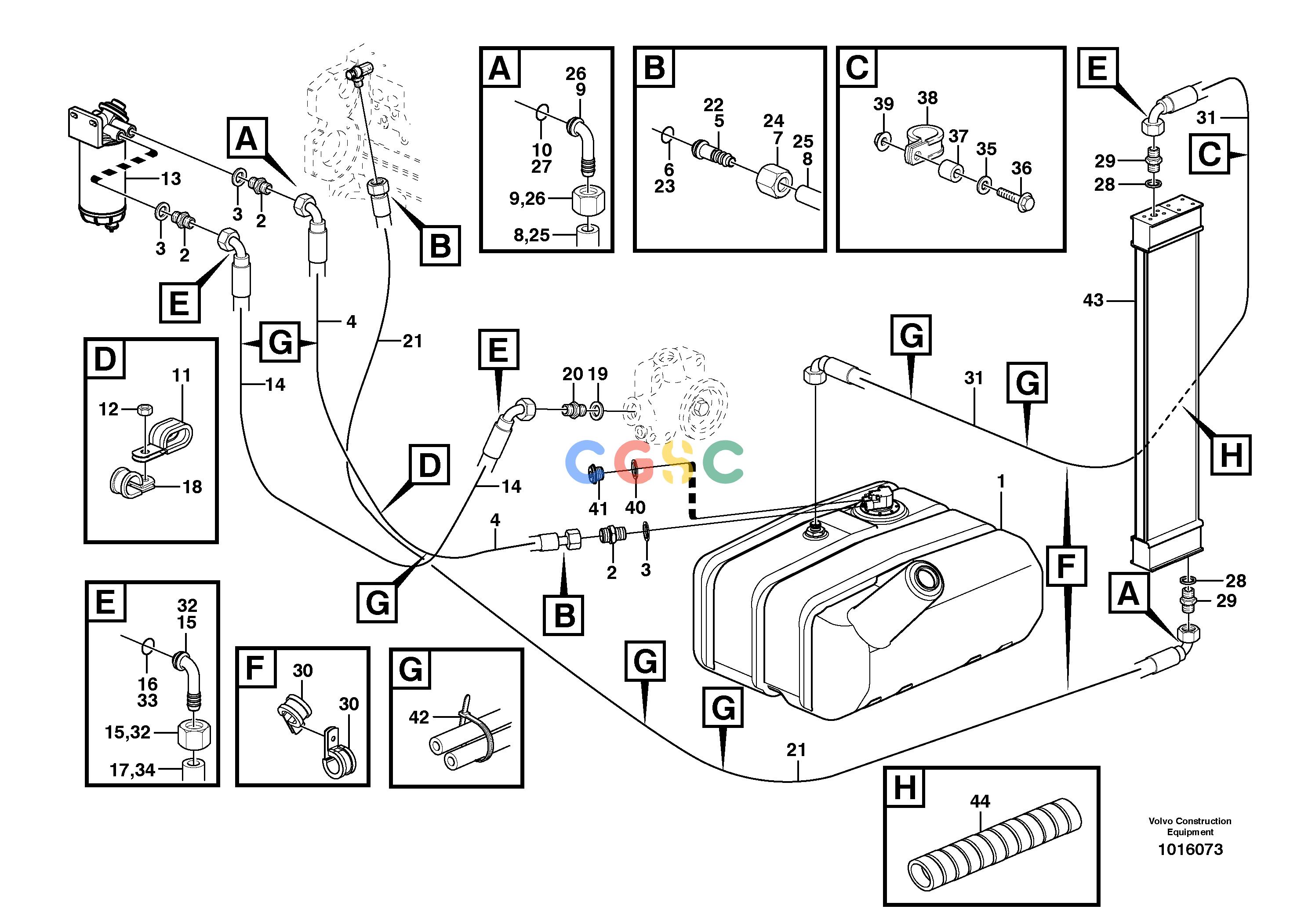

沃尔沃零件查询L50E Fuel pipesBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online

广数供应链运营团队, 14 02月, 2025，浏览： 733 次

Pos.	Part No	Qty	Parts name	Comments
1.			Fuel tank
2.	VOE14213266	[3]	Fitting	(13963948)
3.	VOE976930	[3]	Gasket
4.	VOE11410634	[1]	Fuel pipe
5.	VOE976503	[1]	Nipple
6.	VOE955984	[1]	O-ring	10,1 x 1,6MM
7.	VOE956984	[1]	Fitting nut
8.	VOE978881	[REQ]	Tube	L = 980MM
9.	VOE11031348	[1]	Nipple
10.	VOE990737	[1]	O-ring	9,25 x 1,78MM
11.	VOE13949386	[1]	Clamp	17MM
12.	VOE13945408	[1]	Nut
13.		[1]	Water Separator
14.	VOE11174873	[1]	Fuel pipe
15.	VOE11031348	[2]	Nipple
16.	VOE990737	[2]	O-ring	9,25 x 1,78MM
17.	VOE978881	[REQ]	Tube	L = 1020MM
18.	VOE13949747	[1]	Clamp	15,9MM
19.	VOE976930	[1]	Gasket
20.	VOE14213266	[1]	Fitting	(13963948)
21.	VOE11410635	[1]	Fuel pipe
22.	VOE976503	[1]	Nipple
23.	VOE955984	[1]	O-ring
24.	VOE956984	[1]	Fitting nut
25.	VOE978881	[REQ]	Tube	L = 1890MM
26.	VOE11031348	[1]	Nipple
27.	VOE990737	[1]	O-ring	9,25 x 1,78MM
28.	VOE976930	[2]	Gasket
29.	VOE14213266	[2]	Fitting	(13963948)
30.	VOE13949747	[2]	Clamp	15,9MM
30.	VOE13949386	[1]	Clamp	17MM
31.	VOE11410636	[1]	Fuel pipe
32.	VOE11031348	[2]	Nipple
33.	VOE990737	[2]	O-ring	9,25 x 1,78MM
34.	VOE978881	[REQ]	Tube	L = 1950MM
35.	VOE13955894	[2]	Washer
36.	VOE13947760	[2]	Screw
37.	VOE4973473	[2]	Spacer sleeve
38.	VOE13949747	[2]	Clamp	15,9MM
39.	VOE13945408	[2]	Nut
40.	VOE976930	[1]	Gasket
41.	VOE13966143	[1]	Plug
42.	VOE4881440	[4]	Cable tie
43.			Oil Cooler
44.	VOE11411234	[00 1]	Coiled sheath	L = 200MM S/N 71143 -
