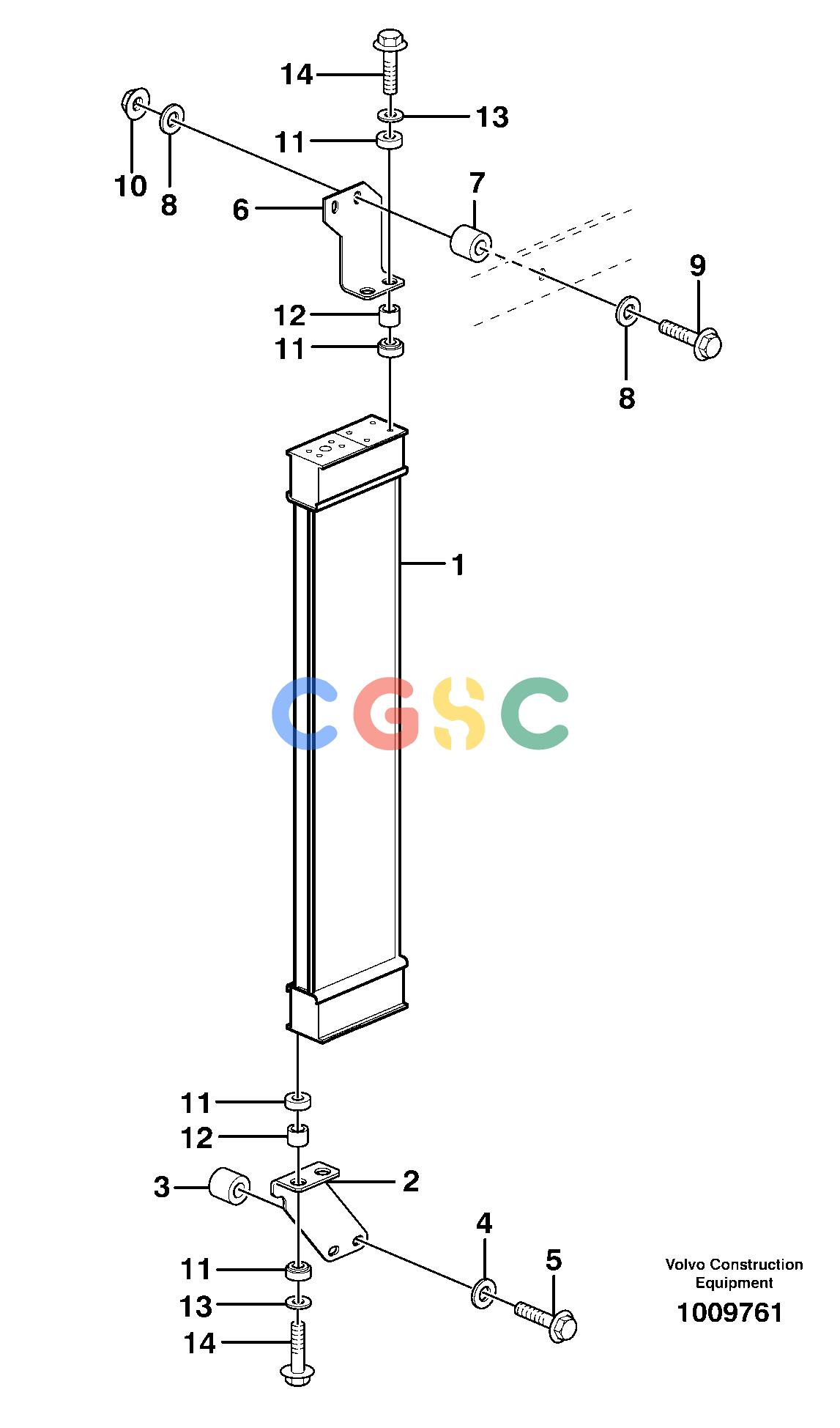

沃尔沃零件查询L50E Fuel coolerBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15175837
|
[1] |
Hydraulic oil cooler
|
|
| 1. |
VOE15177897
|
[1] |
Hydraulic oil cooler
|
|
| 2. |
VOE11413504
|
[1] |
Attaching bracket
|
|
| 3. |
VOE11130278
|
[2] |
Spacer sleeve
|
|
| 4. |
VOE11117464
|
[2] |
Plain washer
|
|
| 5. |
VOE13965179
|
[2] |
Screw
|
|
| 6. |
VOE11413506
|
[1] |
Attaching bracket
|
|
| 7. |
VOE11130278
|
[2] |
Spacer sleeve
|
|
| 8. |
VOE11117464
|
[4] |
Plain washer
|
|
| 9. |
VOE13965179
|
[2] |
Screw
|
|
| 10. |
VOE948645
|
[2] |
Flange lock nut
|
|
| 11. |
VOE11024753
|
[8] |
Rubber damper
|
|
| 12. |
VOE4951048
|
[4] |
Tube
|
|
| 13. |
VOE925739
|
[4] |
Washer
|
|
| 14. |
VOE60113082
|
[4] |
Flange screw
|
|
