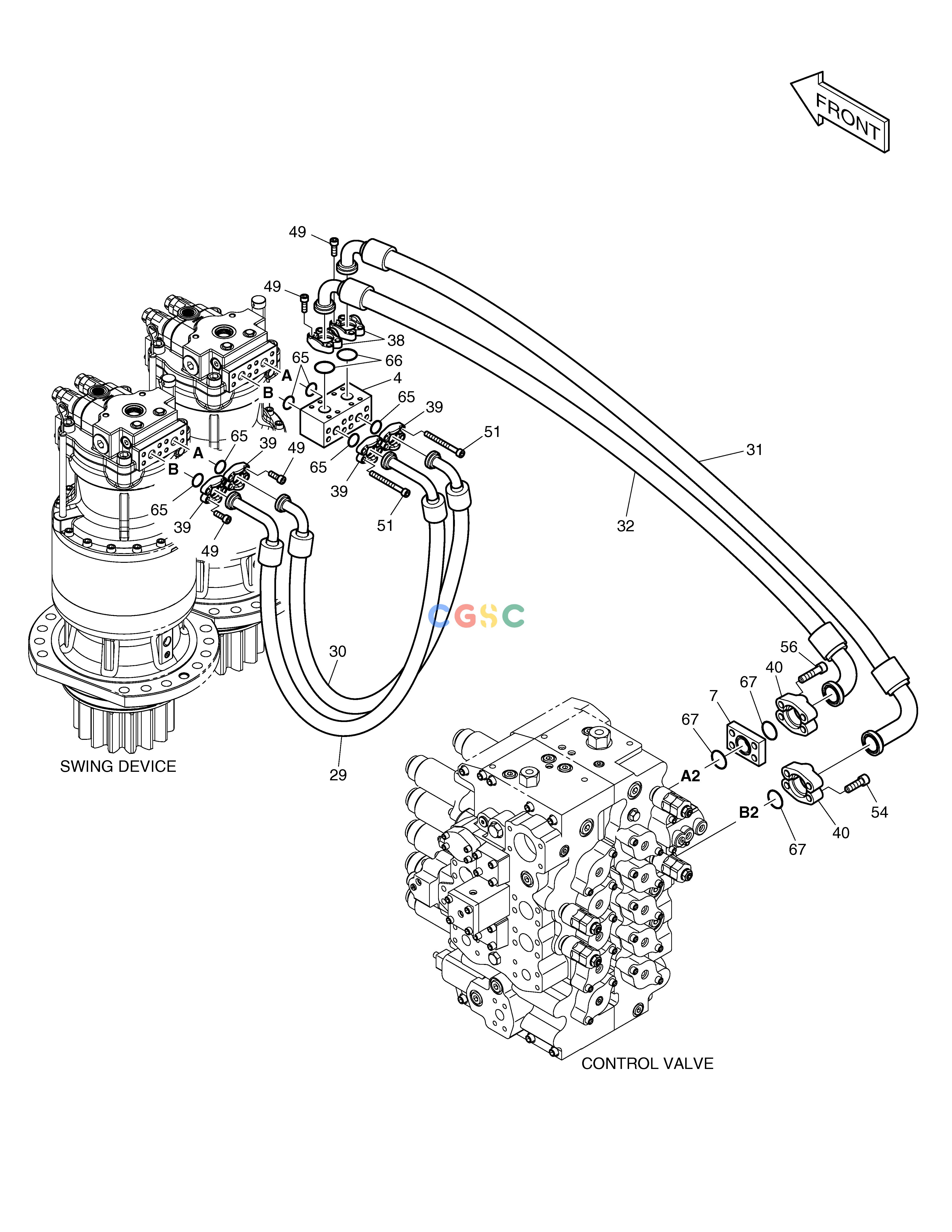

斗山零件查询MAIN PIPING(4) - SWING DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
573 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08059
|
[-] |
|
|
| 29. |
DS2045652
|
[1] |
|
|
| 30. |
DS2045676
|
[1] |
|
|
| 31. |
DS2045687
|
[1] |
|
|
| 32. |
DS2045832
|
[1] |
|
|
| 38. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 39. |
2181-9079
|
[8] |
FLANGE
|
|
| 4. |
K1001958
|
[1] |
BLOCK
|
|
| 40. |
2181-9086
|
[4] |
FLANGE;SPLIT
|
|
| 49. |
S2212266
|
[16] |
BOLT
|
|
| 51. |
S2213666
|
[8] |
BOLT;SOCKET M10X1.5X100
|
|
| 54. |
S2218566
|
[4] |
BOLT;SOCKET
|
|
| 56. |
S2218966
|
[4] |
BOLT;SOCKET M14X2.0X65
|
|
| 65. |
2180-1026D2
|
[6] |
O-RING
|
|
| 66. |
2180-1026D19
|
[2] |
O-RING
|
|
| 67. |
2180-1026D23
|
[3] |
O-RING
|
|
| 7. |
2423-1531
|
[1] |
BLOCK
|
|
