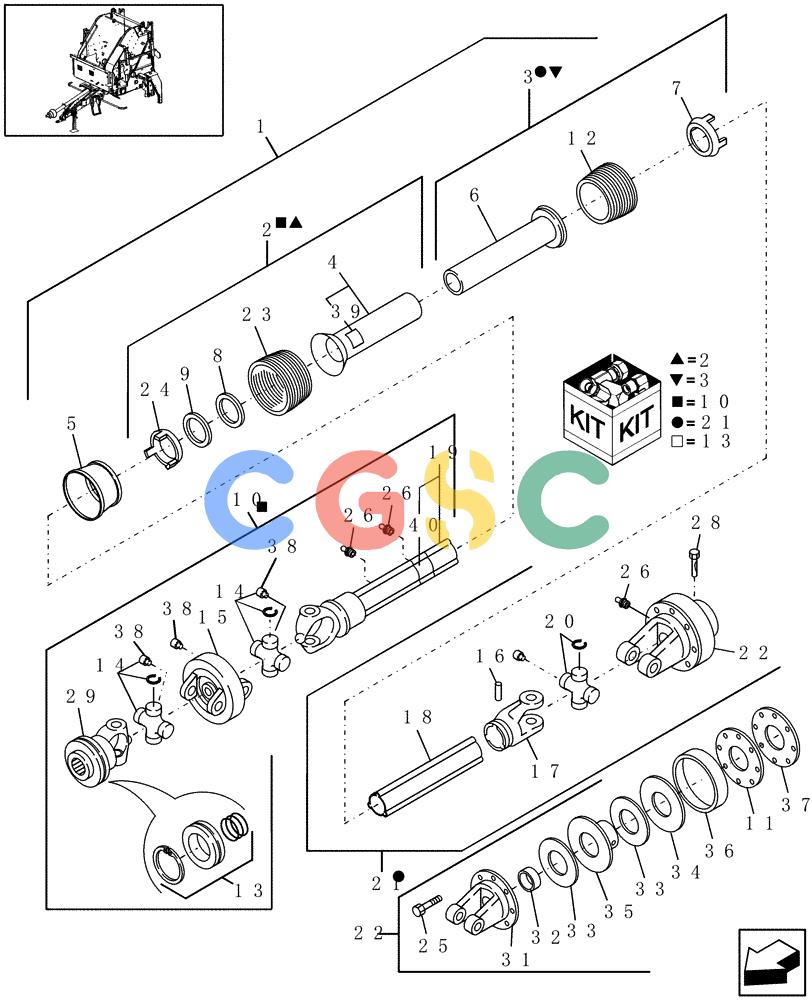

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (01.90) - POWER TAKE OFF, SLIP CLUTCH, 540 RPM, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86604846
|
[1] |
PTO
|
NH
540 RPM, Slip Clutch Superseded by part number: 87643128
|
| 1. |
87643128R
|
[1] |
PTO
|
BEL
RBX453, RBX463, RBX553, All CASE IH ROUND BALER, 540 RPM, Slip Clutch, PRIOR TO P.I.N. Y6N016413 (9/05-), Reman for New PN 86604846
|
| 1. |
87643128C
|
[1] |
PTO
|
BEL
Return Number
|
| 2. |
87012756
|
[1] |
KIT
|
PA
Front Superseded by part number: 87553033
|
| 3. |
87012757
|
[1] |
KIT
|
PA
Rear Superseded by part number: 87553033
|
| 4. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Cone, Outer
|
| 7. |
86625852
|
[1] |
RING NUT
|
NH
|
| 8. |
86625851
|
[1] |
RING NUT
|
NH
|
| 10. |
87012745
|
[1] |
PTO SHAFT
|
PA
Includes: Shield
|
| 11. |
86625867
|
[1] |
SPRING
|
NH
Belleville Superseded by part number: 87587223
|
| 13. |
86625855
|
[1] |
KIT
|
NH
Ball Collar Superseded by part number: 87461438
|
| 14. |
86625850
|
[2] |
U-JOINT SPIDER
|
NH
|
| 15. |
86625844
|
[1] |
BODY
|
NH
|
| 16. |
86625846
|
[1] |
PIN
|
NH
Spring Superseded by part number: 87586150
|
| 17. |
86625848
|
[1] |
YOKE
|
NH
|
| 18. |
87012729
|
[1] |
TUBE,1175 mm L
|
PA
Drive
|
| 19. |
87012730
|
[1] |
TUBE,1217.50 mm L
|
PA
|
| 20. |
86625842
|
[1] |
BEARING ASSY
|
NH
Superseded by part number: 87018246
|
| 21. |
87012747
|
[1] |
PTO SHAFT
|
PA
Rear, Includes: Shield & Clutch
|
| 22. |
86625849
|
[1] |
PTO CLUTCH
|
NH
Slip
|
| 24. |
86625854
|
[1] |
RING NUT
|
NH
|
| 25. |
87012736
|
[8] |
BOLT AND NUT
|
PA
Includes: Nut
|
| 26. |
87012758
|
[2] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 27. |
PL
|
[17] |
PROCURE LOCALLY
|
BAS
Screw
|
| 28. |
86625865
|
[1] |
KIT
|
NH
Tapered
|
| 29. |
86625841
|
[1] |
YOKE
|
NH
|
| 31. |
86625860
|
[1] |
CLUTCH PLATE
|
NH
Superseded by part number: 86625849, 86625849, 87012732
|
| 32. |
86984909
|
[1] |
BUSHING
|
EML
Superseded by part number: 84026575
|
| 33. |
86625862
|
[2] |
DISC
|
NH
Superseded by part number: 86517364
|
| 34. |
86625863
|
[1] |
THRUST PLATE
|
NH
|
| 35. |
86625864
|
[1] |
HUB
|
NH
|
| 36. |
86625869
|
[1] |
SPACER
|
NH
|
| 37. |
86625868
|
[1] |
SPRING
|
NH
Belleville
|
| 38. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 39. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 39. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 40. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 40. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
