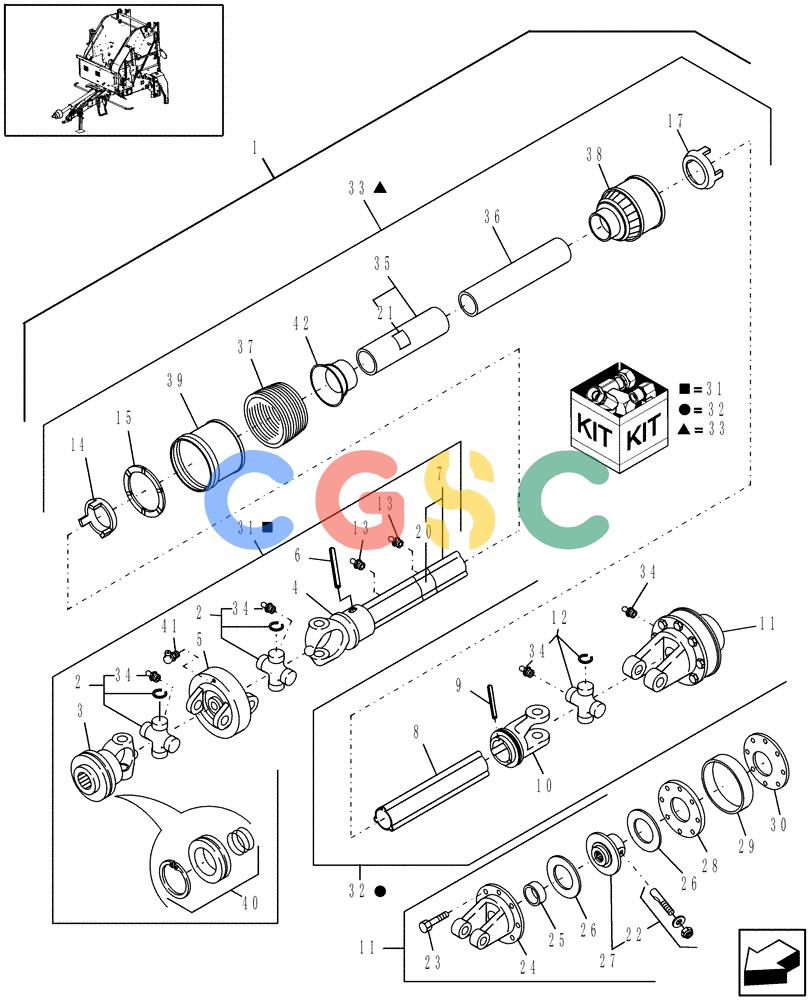

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (01.91) - POWER TAKE OFF, SLIP CLUTCH, 540 RPM, NORTH AMERICA, P.I.N. Y6N016414 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87061978
|
[1] |
PTO
|
BEL
540 RPM, Slip Clutch Superseded by part number: 87643128
|
| 1. |
87643128R
|
[1] |
PTO
|
BEL
RBX453, RBX463, RBX553, All CASE IH ROUND BALER, 540 RPM, Slip Clutch, P.I.N. Y6N016414 & AFTER (9/05-), Reman for New PN 87061978
|
| 1. |
87643128C
|
[1] |
PTO
|
BEL
Return Number
|
| 2. |
87517787
|
[1] |
U-JOINT SPIDER
|
BEL
|
| 3. |
87518490
|
[1] |
YOKE
|
BEL
|
| 4. |
87520072
|
[1] |
YOKE
|
BEL
|
| 5. |
87517785
|
[1] |
BODY
|
BEL
|
| 6. |
87520073
|
[1] |
ROLL PIN
|
BEL
Superseded by part number: 87586147
|
| 7. |
87520085
|
[1] |
TUBE,1170 mm L
|
BEL
|
| 8. |
87517781
|
[1] |
TUBE,1170 mm L
|
BEL
|
| 9. |
86625846
|
[1] |
PIN
|
NH
Spring Superseded by part number: 87586150
|
| 10. |
87520076
|
[1] |
YOKE
|
BEL
|
| 11. |
87518571
|
[1] |
SLIP CLUTCH
|
BEL
|
| 12. |
87520078
|
[1] |
SPIDER ,U-JOINT
|
BEL
JOINT, SPIDER Superseded by part number: 84355315
|
| 13. |
87012758
|
[2] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 14. |
700708773
|
[1] |
BEARING COVER
|
CAS
|
| 15. |
87517775
|
[1] |
SHIELD
|
BEL
|
| 16. |
NSS
|
[6] |
NOT SOLD SEPARAT
|
CON
|
| 17. |
277839
|
[1] |
RING
|
GI
|
| 20. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 20. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
| 21. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 21. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 22. |
86625865
|
[1] |
KIT
|
NH
Tapered
|
| 23. |
87012736
|
[8] |
BOLT AND NUT
|
PA
Includes: Nut
|
| 24. |
86625860
|
[1] |
CLUTCH PLATE
|
NH
Superseded by part number: 86625849, 86625849, 87012732
|
| 25. |
86984909
|
[1] |
BUSHING
|
EML
Superseded by part number: 84026575
|
| 26. |
84011442
|
[2] |
DISC
|
ZED
Superseded by part number: 86517364
|
| 27. |
86625864
|
[1] |
HUB
|
NH
|
| 28. |
86625863
|
[1] |
THRUST PLATE
|
NH
|
| 29. |
86625869
|
[1] |
SPACER
|
NH
|
| 30. |
87518582
|
[1] |
SPRING
|
BEL
|
| 31. |
87520107
|
[1] |
FRONT PTO ASSY
|
BEL
|
| 32. |
87520128
|
[1] |
REAR PTO ASSY
|
BEL
|
| 33. |
87520109
|
[1] |
REPAIR KIT
|
BEL
Shield Superseded by part number: 87643118
|
| 34. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 40. |
86625855
|
[1] |
KIT
|
NH
Superseded by part number: 87461438
|
| 41. |
933205R91
|
[1] |
LUBE NIPPLE,90 Degree, M8 x 1.25
|
IH
|
