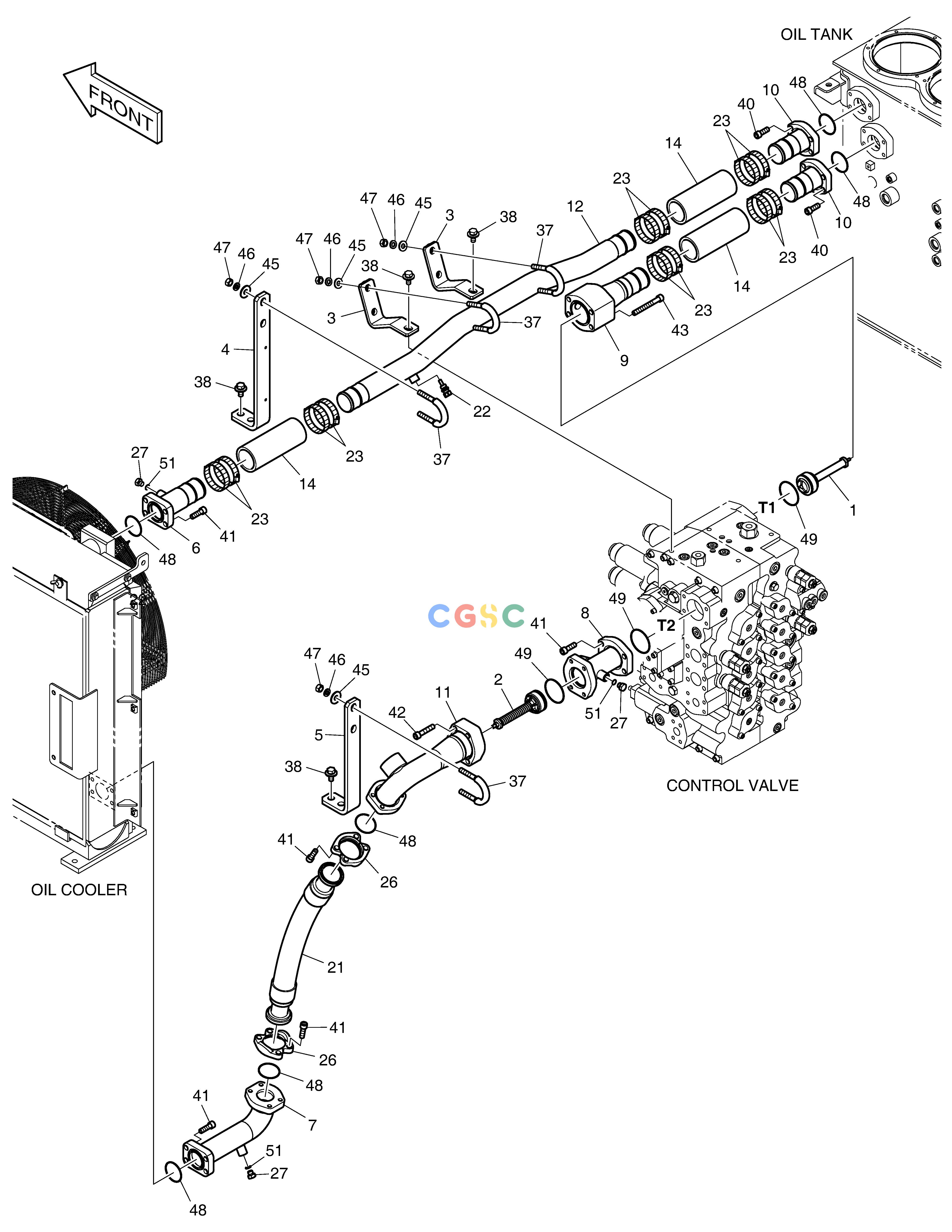

斗山零件查询OIL COOLER PIPING(2) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08209
|
[-] |
|
|
| 1. |
410128-00009B
|
[1] |
|
|
| 10. |
420217-00096
|
[2] |
|
|
| 11. |
420217-00182A
|
[1] |
|
|
| 12. |
420217-00183
|
[1] |
|
|
| 14. |
2185-1776D1
|
[3] |
HOSE
|
|
| 2. |
410128-00053
|
[1] |
|
|
| 21. |
DS2038438
|
[1] |
|
|
| 22. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 23. |
S8500079
|
[12] |
CLAMP
|
|
| 26. |
4215-1003D6
|
[4] |
FLANGE;SPLIT
|
|
| 27. |
2181-1950D1
|
[3] |
PLUG
|
|
| 3. |
110406-00156A
|
[2] |
|
|
| 37. |
120-00258A
|
[4] |
BOLT;U
|
|
| 38. |
DS0025018
|
[6] |
BOLT
|
|
| 4. |
110406-00157B
|
[1] |
|
|
| 40. |
S2215366
|
[8] |
BOLT
|
|
| 41. |
S2215466
|
[20] |
BOLT
|
|
| 42. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 43. |
S2216666
|
[4] |
BOLT;SOCKET M12X1.75X100
|
|
| 45. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 46. |
S5102703
|
[8] |
WASHER
|
|
| 47. |
S4012733
|
[8] |
NUT
|
|
| 48. |
2180-1026D27
|
[6] |
O-RING
|
|
| 49. |
2180-1026D31
|
[3] |
O-RING
|
|
| 5. |
110406-00158B
|
[1] |
|
|
| 51. |
S8000111
|
[3] |
O-RING
|
|
| 6. |
420217-00278
|
[1] |
|
|
| 7. |
420217-00279
|
[1] |
|
|
| 8. |
420217-00280
|
[1] |
|
|
| 9. |
420217-00095B
|
[1] |
|
|
