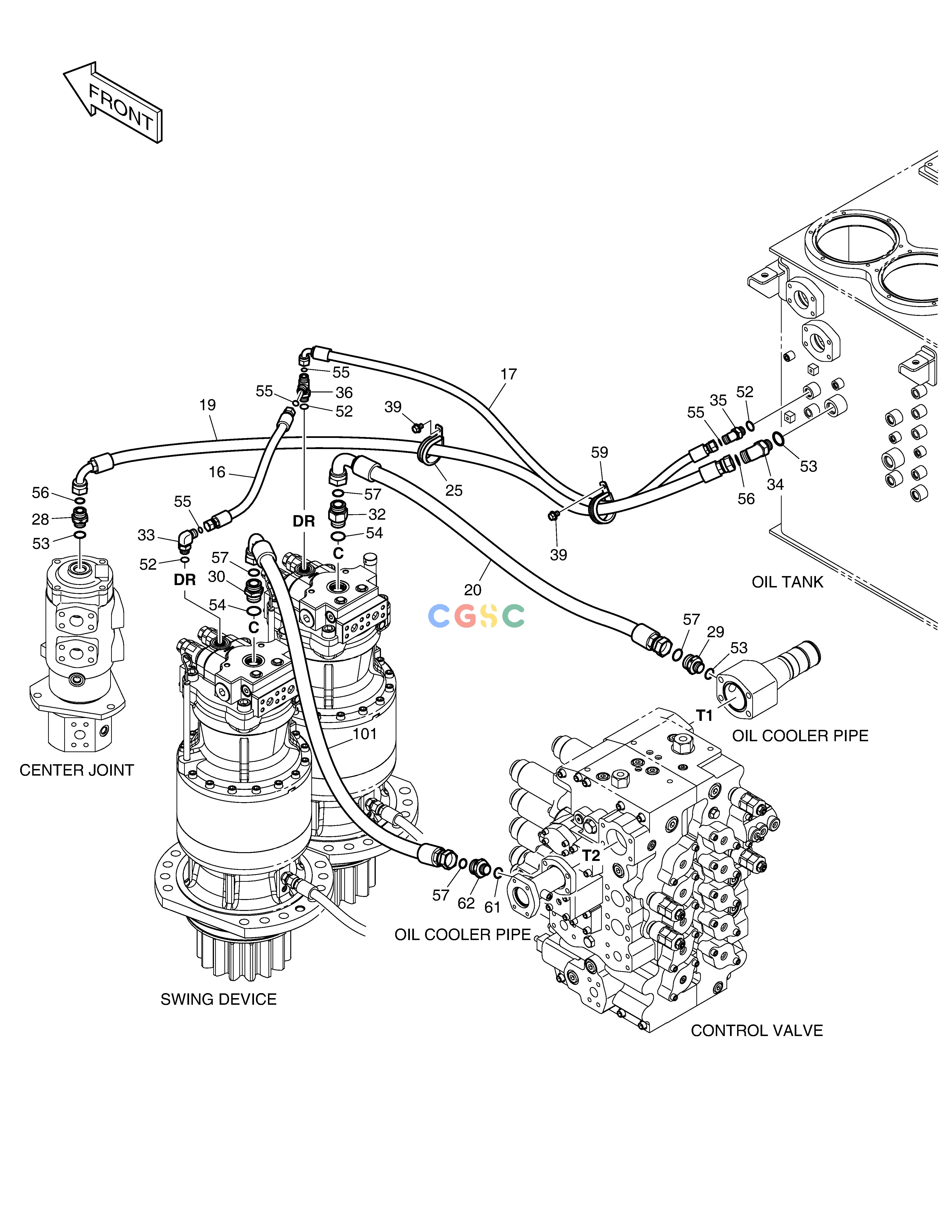

斗山零件查询OIL COOLER PIPING(3) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08209
|
[-] |
|
|
| 101. |
DS2013946
|
[1] |
|
|
| 16. |
DS20111249
|
[1] |
|
|
| 17. |
DS20131685
|
[1] |
|
|
| 19. |
DS20131861
|
[1] |
|
|
| 20. |
DS20132149
|
[1] |
|
|
| 25. |
124-00208D9
|
[1] |
CLIP
|
|
| 28. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 29. |
2181-2627D12
|
[1] |
ADAPTER
|
|
| 30. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 32. |
DS2232133
|
[1] |
ADAPTER
|
|
| 33. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 34. |
2181-2816D1
|
[1] |
ELBOW
|
|
| 35. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 36. |
181-00121D10
|
[1] |
TEE
|
|
| 39. |
K1001029
|
[2] |
BOLT
|
|
| 52. |
S8000181
|
[3] |
O-RING
|
|
| 53. |
S8000231
|
[3] |
O-RING
|
|
| 54. |
S8000291
|
[2] |
O-RING
|
|
| 55. |
S8030081
|
[4] |
O-RING
|
|
| 56. |
S8030121
|
[2] |
O-RING
|
|
| 57. |
S8030161
|
[4] |
O-RING
|
|
| 59. |
124-00208D7
|
[1] |
CLIP
|
|
| 61. |
S8000241
|
[1] |
O-RING
|
|
| 62. |
DS2232232
|
[1] |
ADAPTER
|
|
