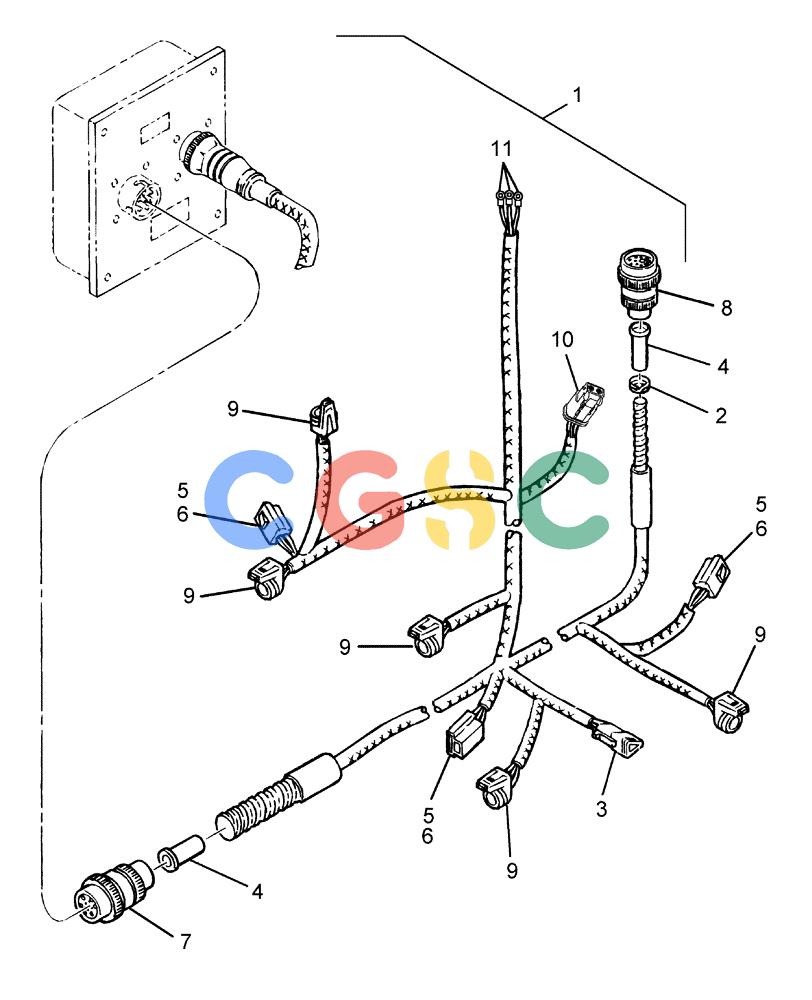

| 1. |
86622152
|
[1] |
WIRE HARNESS
|
NH
Net Superseded by part number: 86508603, 84214838
|
| 2. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
Split, Int, 1.00"
|
| 3. |
84074635
|
[1] |
CONTACT HOUSING,Female, 3 Pole
|
NH
Net Counter, 3-Pin
|
| 4. |
9619682
|
[2] |
BUSHING
|
NH
MS3420-12
|
| 5. |
248712
|
[3] |
BODY
|
NH
Superseded by part number: 87693325
|
| 6. |
900613
|
[3] |
TERMINAL
|
NH
E18 Superseded by part number: NH900613
|
| 7. |
86564210
|
[1] |
MULTIPOLE CONNECTOR,Female, 19 Pole
|
NH
DEU Plug, 19-Pin Superseded by part number: 87711987
|
| . . |
86575791
|
[1] |
SOCKET
|
PA
16 Ga. Superseded by part number: 900364
|
| . . |
900302
|
[6] |
TERMINAL
|
NH
E18 Superseded by part number: 87697875
|
| 8. |
86520117
|
[1] |
ELEC CONNECTOR,Male, 16 - 8 SAE
|
NH
DEU Plug, 18-Cav Pin
|
| . . |
900786
|
[1] |
ELEC. TERMINAL PIN,Male, 5 - 8 mm2
|
NH
E18 Superseded by part number: 87697948
|
| . . |
900316
|
[2] |
ELEC. TERMINAL PIN,Male, 2 -3.5 mm2
|
NH
E18 Superseded by part number: 87696144
|
| . . |
900363
|
[8] |
TERMINAL
|
NH
E18 Superseded by part number: 87697947
|
| 9. |
86624601
|
[5] |
MULTIPOLE CONNECTOR,Female, 3 Pole
|
NH
Potentiometer, 3-Pin Superseded by part number: 84078681
|
| 10. |
84074631
|
[1] |
CONTACT HOUSING,Female, 2 Pole
|
ZED
Tailgate Latch, 2-Pin Superseded by part number: 87695582
|
| 11. |
PL
|
[1] |
PROCURE LOCALLY
|
BAS
Ring Terminal
|
| 12. |
86624602
|
[1] |
ELEC. TERMINAL PIN,Tin, 0.80 - 1.00mm
|
NH
Point
|
