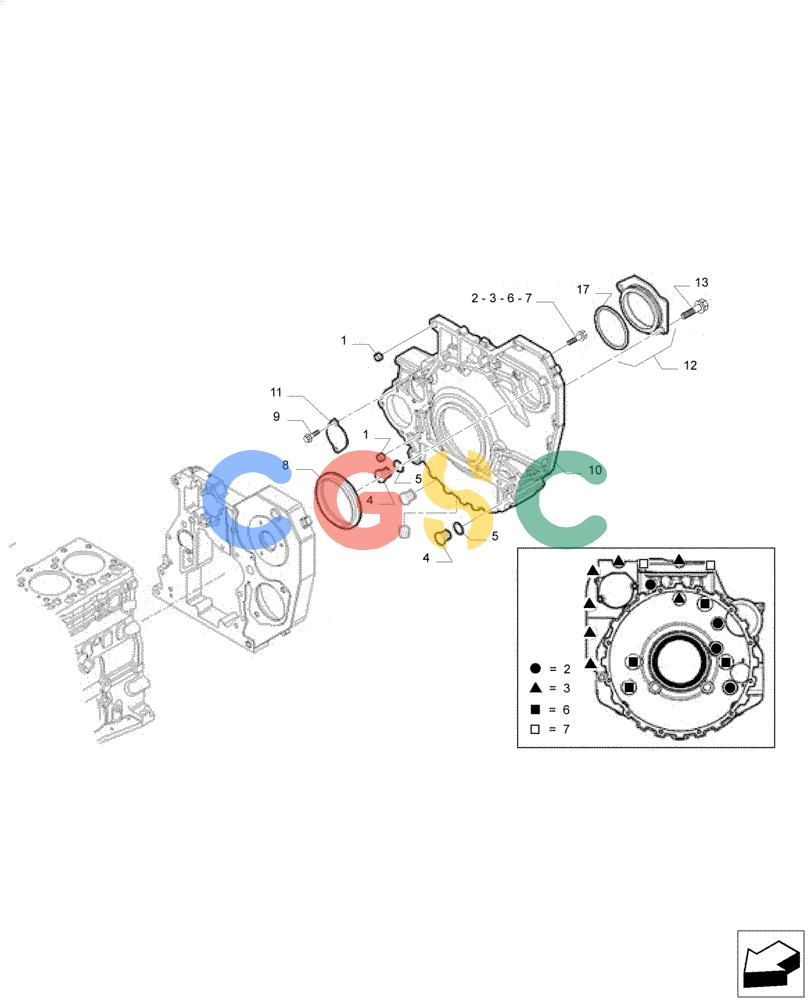

神钢零件查询(F4GE9684E J615) - ENGINE 5801763602 - 47613194 (8/14-) (10.102.BB[01]) - HOUSING & COVERS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899109 | [2] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| 3. | 4892915 | [11] | FLANGE BOLT,Hex, M10 x 1.5 x 40mm | TOR |
| 4. | 4895378 | [1] | BUTTON PLUG,M29.2 | TOR |
| 5. | 17288480 | [1] | O-RING,21.81mm ID x 3.53mm | TOR |
| 6. | 4899076 | [5] | SCREW,Hex Flg, M12 x 1.75 x 80 | TOR |
| 7. | 4899074 | [3] | SCREW,Hex Flg, M12 x 1.75 x 120 | TOR |
| 9. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 10. | 504128011 | [1] | COVER | BHB |
| 11. | 4895155 | [1] | COVER | TOR |
| 12. | 504115364 | [1] | COVER | BHB |
| 17. | 2854075 | [1] | O-RING,0.103" Thk x 2.987" ID, -151 | TOR |
