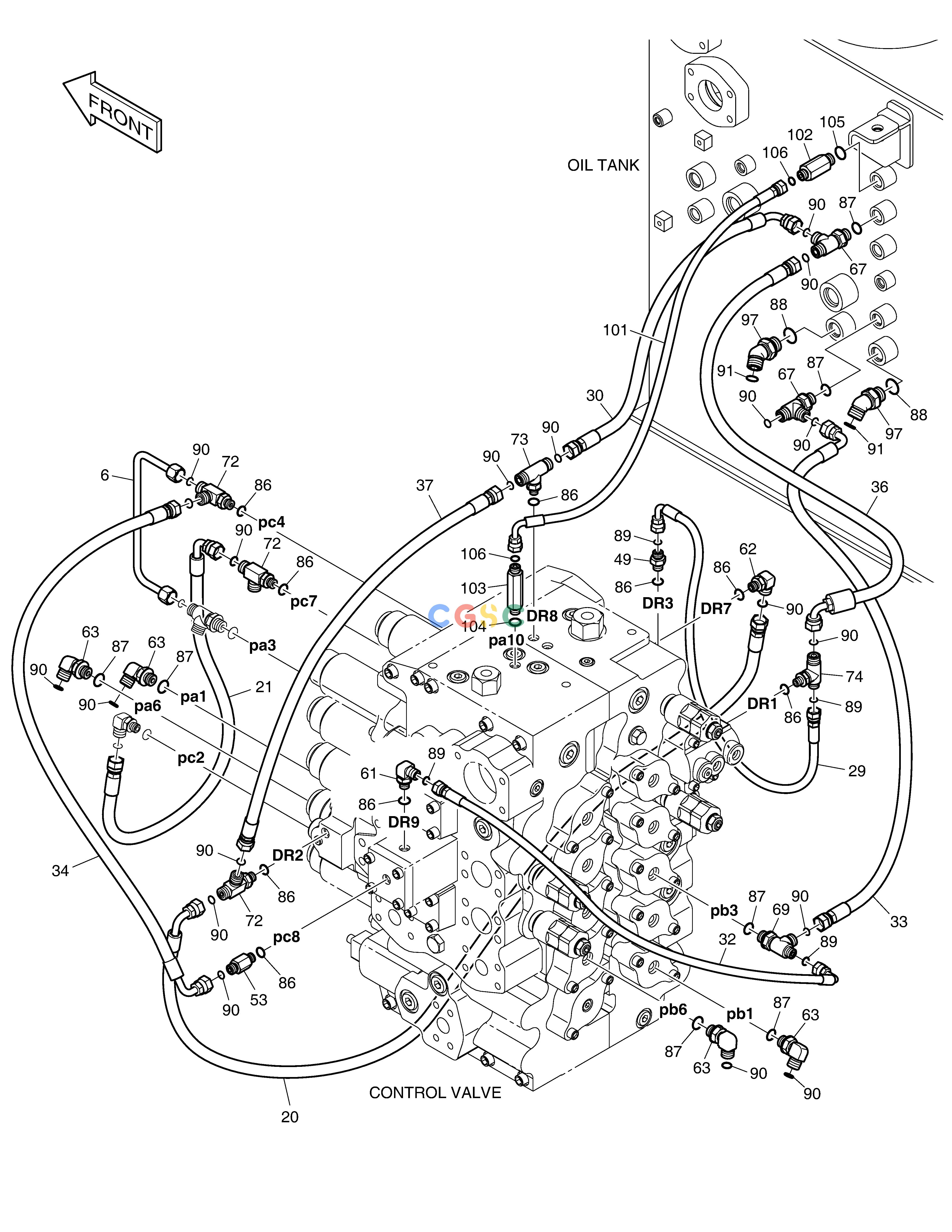

斗山零件查询PILOT PIPING(5) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08171
|
[-] |
|
|
| 101. |
DS2143059
|
[1] |
|
|
| 102. |
DS2232171
|
[1] |
|
|
| 103. |
DS2232198
|
[1] |
|
|
| 104. |
S8000111
|
[1] |
O-RING
|
|
| 105. |
S8000141
|
[1] |
O-RING
|
|
| 106. |
S8030041
|
[2] |
O-RING
|
|
| 20. |
DS2121090
|
[1] |
|
|
| 21. |
DS2121243
|
[1] |
|
|
| 29. |
DS2143014
|
[1] |
|
|
| 30. |
DS2143040
|
[1] |
|
|
| 32. |
DS2143046
|
[1] |
|
|
| 33. |
DS2143047
|
[1] |
|
|
| 34. |
DS2143050
|
[1] |
|
|
| 36. |
DS2143053
|
[1] |
|
|
| 37. |
DS2144021
|
[1] |
|
|
| 49. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 53. |
2181-4133D42
|
[1] |
ADAPTER
|
|
| 6. |
920403-00077A
|
[1] |
|
|
| 61. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 62. |
2181-2815D5
|
[1] |
ELBOW
|
|
| 63. |
2181-2815D6
|
[4] |
ELBOW
|
|
| 67. |
181-00121D2
|
[2] |
TEE
|
|
| 69. |
181-00121D5
|
[1] |
TEE
|
|
| 72. |
DS2412016
|
[3] |
|
|
| 73. |
DS2418012
|
[1] |
|
|
| 74. |
DS2418017
|
[1] |
|
|
| 86. |
S8000111
|
[9] |
O-RING
|
|
| 87. |
S8000141
|
[7] |
O-RING
|
|
| 88. |
S8000181
|
[2] |
O-RING
|
|
| 89. |
S8030041
|
[3] |
O-RING
|
|
| 90. |
S8030061
|
[19] |
O-RING
|
|
| 91. |
S8030081
|
[2] |
O-RING
|
|
| 97. |
2181-2816D4
|
[2] |
ELBOW
|
|
