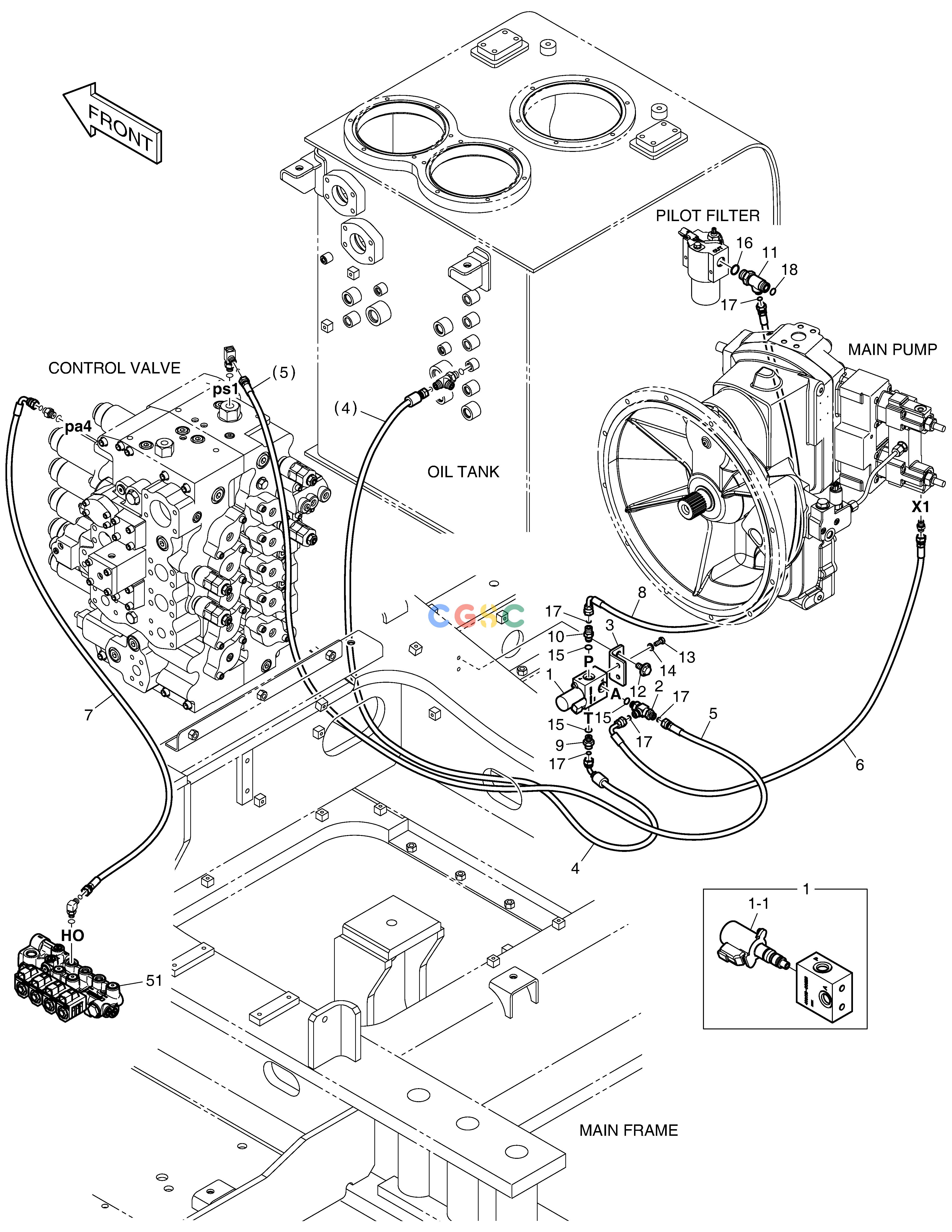

斗山零件查询PILOT PIPING(6) - ONE & TWO WAY DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08183
|
[-] |
|
|
| 1. |
410116-00526
|
[1] |
|
|
| 1-1. |
410116-00646
|
[1] |
|
|
| 10. |
430201-00130
|
[1] |
|
|
| 11. |
181-00121D6
|
[1] |
|
|
| 12. |
2120-2196D3
|
[2] |
BOLT;SET M10X1.5X25
|
|
| 13. |
S0508766
|
[2] |
BOLT
|
|
| 14. |
S5102503
|
[2] |
. WASHER
|
|
| 15. |
S8000111
|
[3] |
O-RING
|
|
| 16. |
S8000181
|
[1] |
O-RING
|
|
| 17. |
S8030041
|
[5] |
O-RING
|
|
| 18. |
S8030081
|
[1] |
O-RING
|
|
| 2. |
410134-00032
|
[1] |
|
|
| 3. |
110425-00201
|
[1] |
|
|
| 4. |
DS20132316
|
[1] |
|
|
| 5. |
DS2119007
|
[1] |
|
|
| 51. |
410135-00236A
|
[1] |
|
|
| 6. |
DS2121124
|
[1] |
|
|
| 7. |
DS2121367
|
[1] |
|
|
| 8. |
DS2121385
|
[1] |
|
|
| 9. |
2181-4133D1
|
[1] |
ADAPTER
|
|
