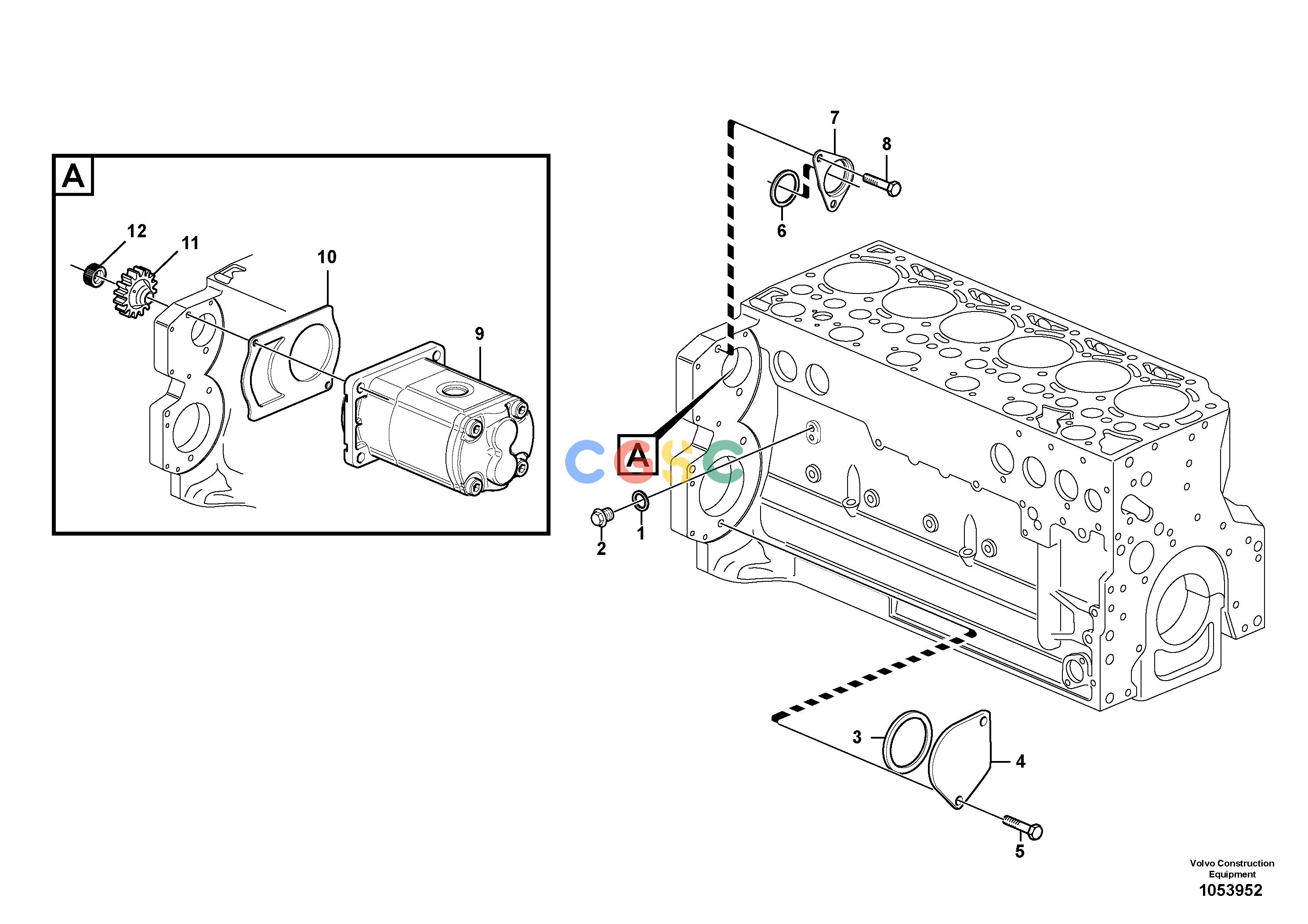

沃尔沃零件查询L50F Pump drive power take-offNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 2. |
VOE20405716
|
[1] |
Plug
|
|
| 3. |
VOE20412359
|
[1] |
Sealing ring
|
|
| 4. |
VOE24426064
|
[1] |
Cover
|
|
| 5. |
VOE975108
|
[2] |
Flange screw
|
|
| 6. |
VOE20580547
|
[1] |
Sealing ring
|
|
| 7. |
VOE20580550
|
[1] |
Cover
|
|
| 8. |
VOE975108
|
[2] |
Flange screw
|
ENG S/N -11598152
|
| 8. |
VOE60113409
|
[2] |
Flange screw
|
ENG S/N 11598153-
|
| 9. |
|
[1] |
Fan Motor
|
|
| 10. |
|
[1] |
Gasket
|
|
| 11. |
VOE20940389
|
[1] |
Gear
|
|
| 12. |
VOE20460512
|
[1] |
Nut retainer
|
W/O PUMP DRIVE
|
| 12. |
VOE20464472
|
[1] |
Nut
|
WITH PUMP DRIVE
|
