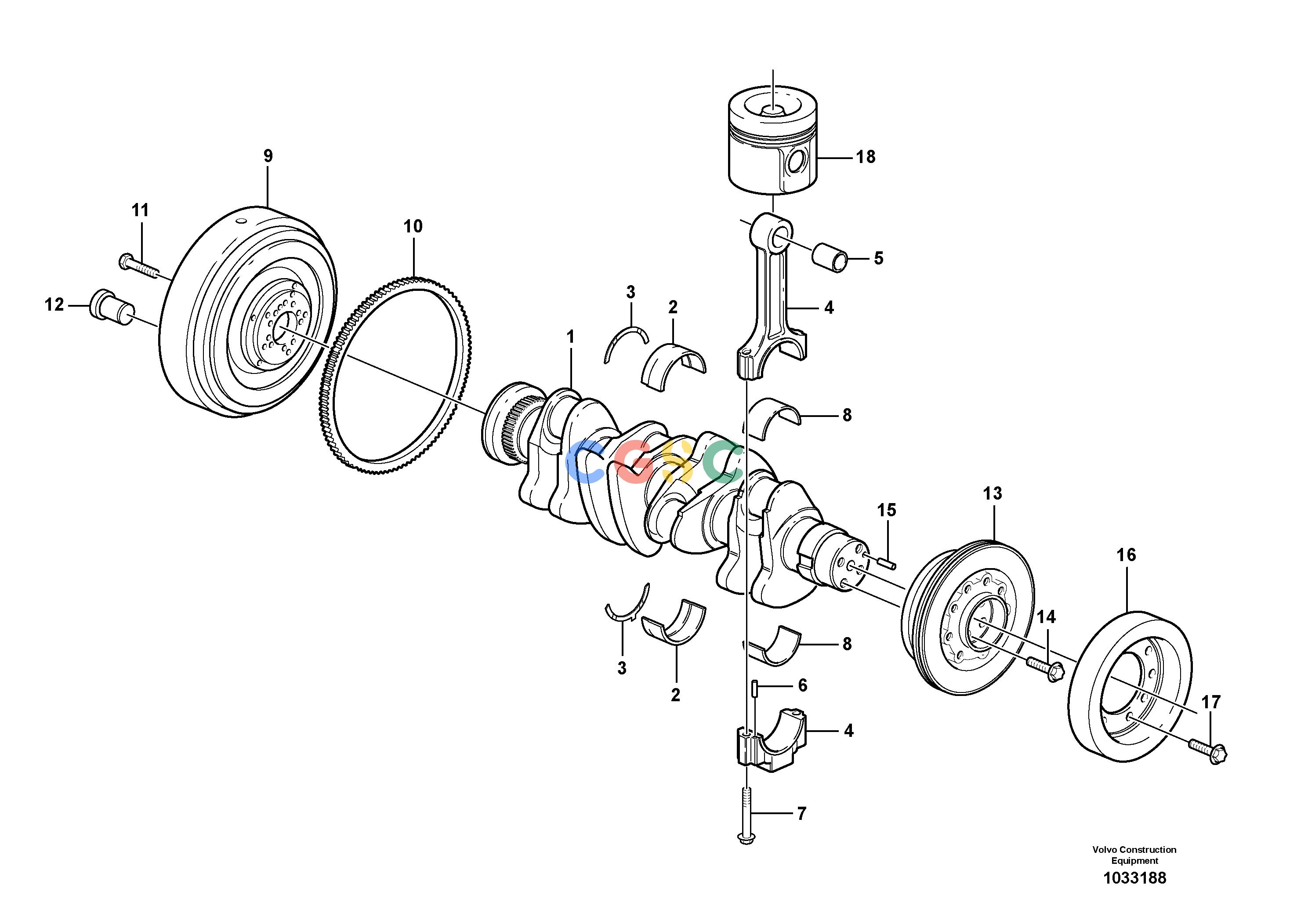

沃尔沃零件查询L50F Crankshaft and related partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21264836
|
[1] |
Crankshaft
|
|
| 2. |
VOE21141948
|
[5] |
Main bearing
|
STD 85,00 MM
|
| 2. |
VOE21234191
|
[REQ] |
Main bearing
|
U SZ 84,75 MM
|
| 2. |
VOE20405541
|
[REQ] |
Main bearing
|
U SZ 84,50 MM
|
| 3. |
VOE21141955
|
[8] |
Thrust washer
|
STD 2,9 MM
|
| 3. |
VOE21141963
|
[REQ] |
Thrust washer
|
3,1 MM
|
| 4. |
VOE20585982
|
[4] |
Connecting rod
|
|
| 5. |
VOE11700325
|
[4] |
Bushing
|
|
| 6. |
VOE20459134
|
[8] |
Pin
|
|
| 7. |
VOE11700326
|
[8] |
Bolt
|
|
| 8. |
VOE20766790
|
[4] |
Big-end Bearing
|
STD 68,00 MM
|
| 8. |
VOE20790423
|
[REQ] |
Big-end Bearing
|
U SZ 67,75 MM
|
| 8. |
VOE20790428
|
[REQ] |
Big-end Bearing
|
U SZ 67,50 MM
|
| 9. |
VOE20459128
|
[1] |
Flywheel
|
|
| 10. |
VOE23068179
|
[1] |
Starter gear ring
|
|
| 11. |
VOE20405654
|
[10] |
Bolt
|
|
| 12. |
VOE20405643
|
[1] |
Plug
|
|
| 13. |
VOE22552786
|
[1] |
Pulley
|
|
| 14. |
VOE20405724
|
[4] |
Screw
|
|
| 15. |
VOE20405634
|
[1] |
Spring pin
|
|
| 16. |
VOE20459925
|
[1] |
Vibration absorber
|
|
| 17. |
VOE993357
|
[9] |
Flange screw
|
|
| 18. |
|
[1] |
Piston
|
|
