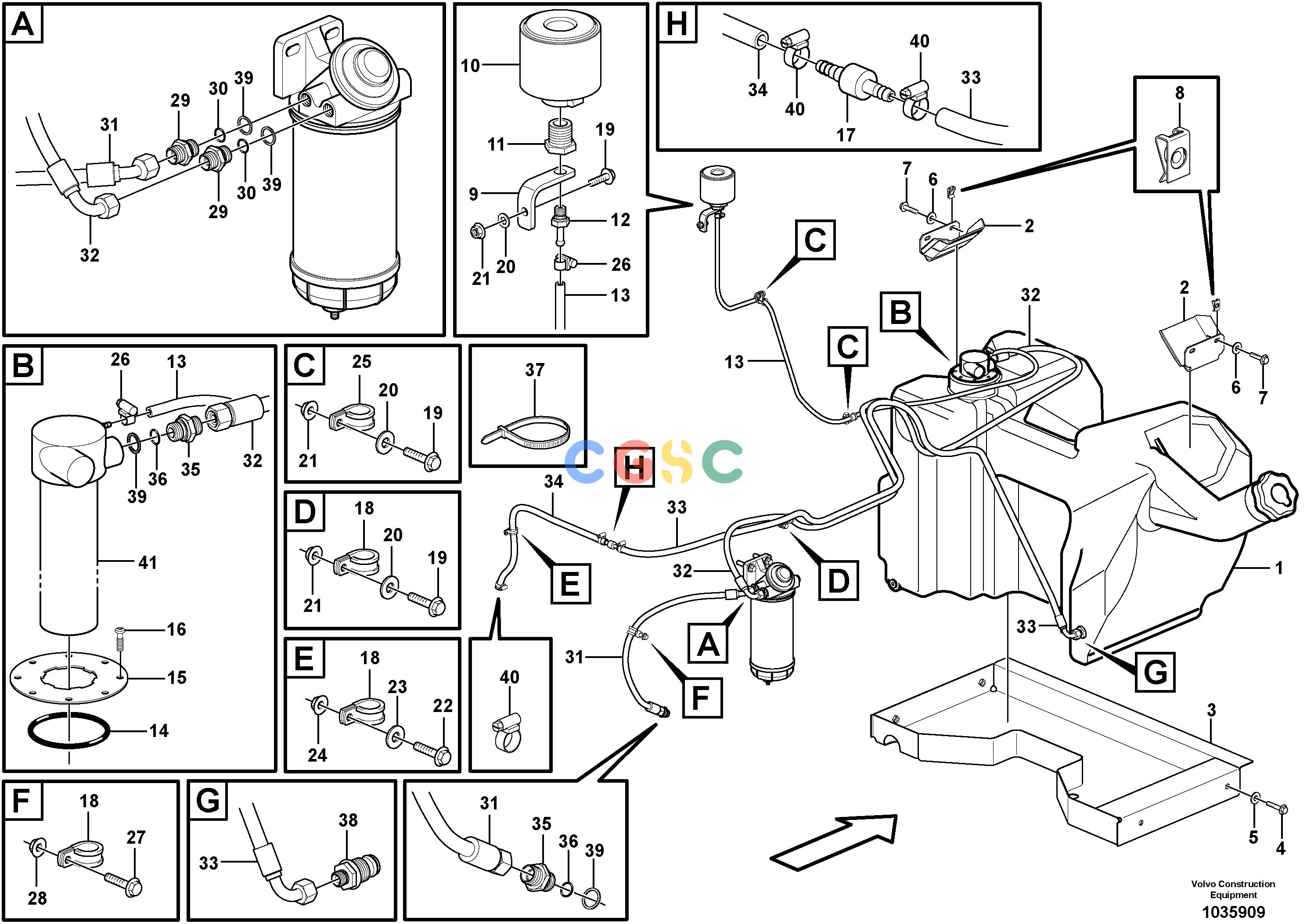

沃尔沃零件查询L50F Fuel systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel tank
|
|
| 2. |
VOE15200580
|
[2] |
Retainer
|
|
| 3. |
VOE15203803
|
[1] |
Retainer
|
|
| 4. |
VOE60113098
|
[4] |
Flange screw
|
|
| 5. |
VOE13960143
|
[4] |
Washer
|
|
| 6. |
VOE11117464
|
[4] |
Plain washer
|
|
| 7. |
VOE13948217
|
[4] |
Screw
|
|
| 8. |
VOE13949867
|
[4] |
Spring nut
|
|
| 9. |
VOE11411731
|
[1] |
Anchorage
|
|
| 10. |
VOE11172907
|
[1] |
Air filter
|
|
| 11. |
VOE4854955
|
[1] |
Nipple
|
|
| 12. |
VOE949221
|
[1] |
Hose nipple
|
|
| 13. |
VOE15204454
|
[1] |
Plastic hose
|
|
| 14. |
VOE925075
|
[1] |
O-ring
|
|
| 15. |
VOE9518442
|
[1] |
Plate
|
|
| 16. |
VOE975378
|
[8] |
Six point socket screw
|
|
| 17. |
VOE21027248
|
[1] |
Valve
|
|
| 18. |
VOE13803052
|
[3] |
Clamp
|
|
| 19. |
VOE13946173
|
[4] |
Screw
|
|
| 20. |
VOE13955894
|
[4] |
Washer
|
|
| 21. |
VOE13945408
|
[4] |
Nut
|
|
| 22. |
VOE13946544
|
[1] |
Screw
|
|
| 23. |
VOE955892
|
[1] |
Plain washer
|
|
| 24. |
VOE13945407
|
[1] |
Nut
|
|
| 25. |
VOE990732
|
[2] |
Clamp
|
|
| 26. |
VOE13975269
|
[2] |
Clamp
|
|
| 27. |
VOE60113082
|
[1] |
Flange screw
|
|
| 28. |
VOE13945408
|
[1] |
Nut
|
|
| 29. |
VOE3989300
|
[2] |
Fitting
|
|
| 30. |
|
[2] |
Sealing ring
|
|
| 31. |
VOE15210181
|
[1] |
Fuel hose
|
|
| 32. |
VOE15210176
|
[1] |
Fuel hose
|
|
| 33. |
VOE11309260
|
[1] |
Fuel hose
|
|
| 34. |
VOE15201227
|
[1] |
Fuel hose
|
|
| 35. |
VOE3989300
|
[2] |
Fitting
|
|
| 36. |
|
[2] |
Sealing ring
|
|
| 37. |
VOE4881440
|
[10] |
Cable tie
|
|
| 38. |
VOE11306079
|
[1] |
Fitting
|
|
| 39. |
VOE13947622
|
[5] |
Plane gasket
|
|
| 40. |
VOE943470
|
[3] |
Hose clamp
|
|
| 41. |
VOE11170095
|
[1] |
Tank unit
|
SE2303
|
