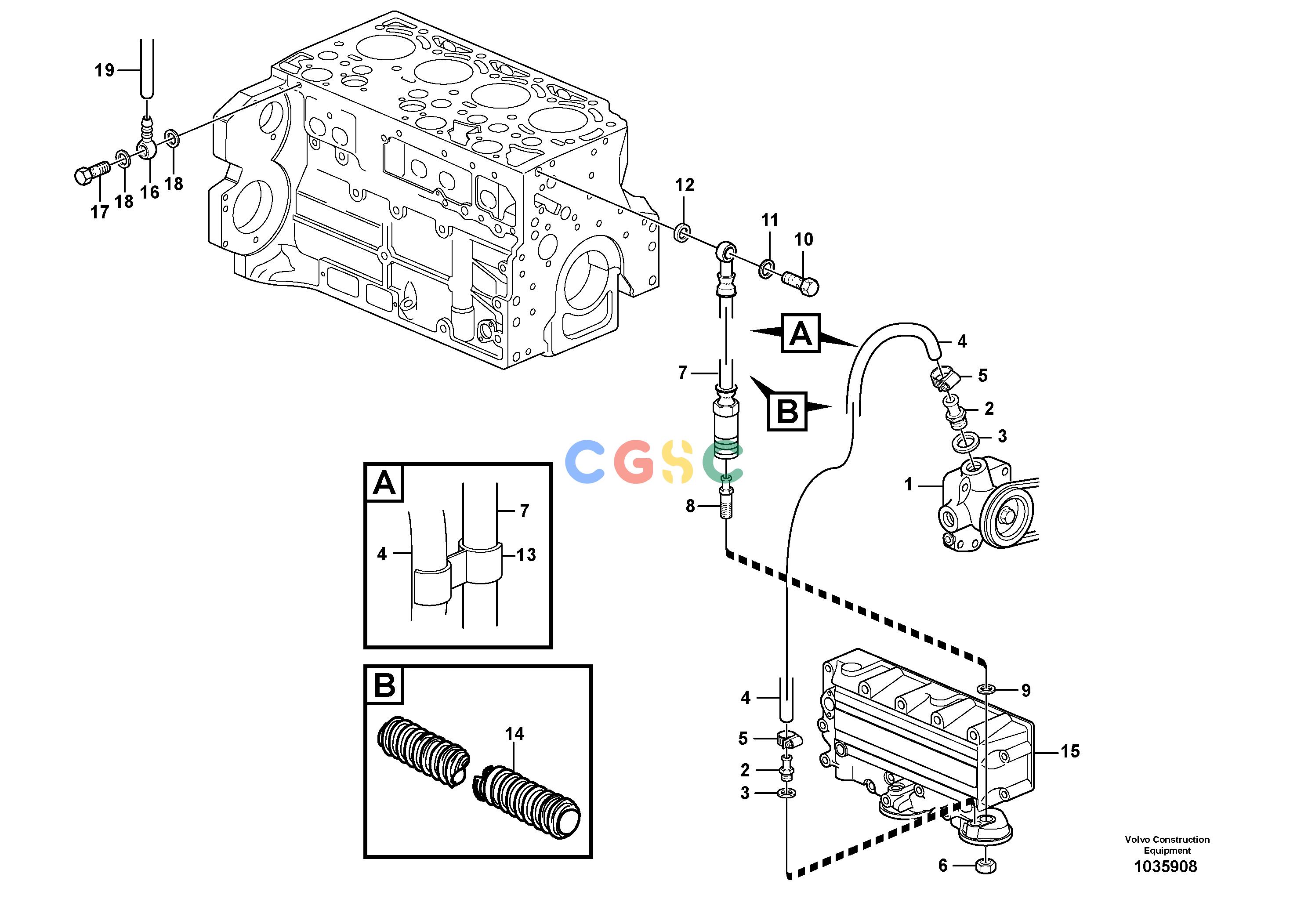

沃尔沃零件查询L50F Fuel pipes, fuel pumpNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel pump
|
|
| 2. |
VOE20405767
|
[2] |
Hose nipple
|
|
| 3. |
VOE993677
|
[2] |
Gasket
|
|
| 4. |
VOE20405766
|
[1] |
Hose
|
|
| 5. |
VOE20405568
|
[2] |
Clip
|
|
| 6. |
VOE20441521
|
[1] |
Nut
|
|
| 7. |
VOE20542732
|
[1] |
Fuel pipe
|
|
| 8. |
VOE20492602
|
[1] |
Sleeve
|
|
| 9. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 10. |
VOE20405562
|
[1] |
Hollow screw
|
|
| 11. |
VOE993677
|
[1] |
Gasket
|
|
| 12. |
VOE20405769
|
[1] |
Sealing ring
|
|
| 13. |
VOE20405764
|
[1] |
Hose retainer
|
|
| 14. |
VOE20405763
|
[1] |
Tube
|
|
| 15. |
|
[1] |
Housing
|
|
| 16. |
VOE20459906
|
[1] |
Banjo nipple
|
|
| 17. |
VOE20405847
|
[1] |
Valve
|
|
| 18. |
VOE21108673
|
[2] |
Sealing ring
|
|
| 19. |
|
[1] |
Hose
|
|
