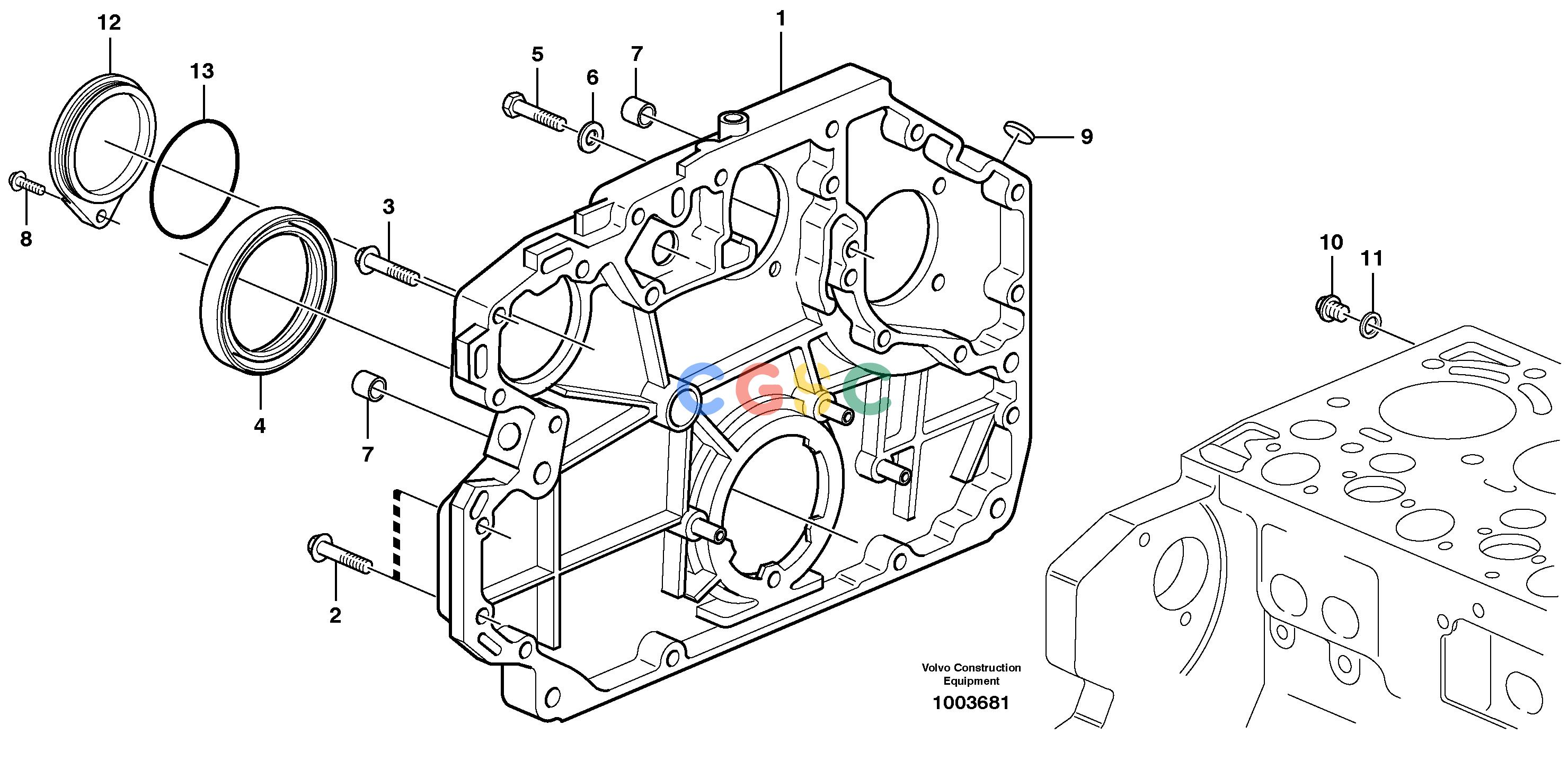

沃尔沃零件查询L60E Timing gear casing and gearsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22442987
|
[1] |
Gear housing
|
|
| 2. |
VOE20412324
|
[12] |
Screw
|
|
| 3. |
VOE20450801
|
[3] |
Screw
|
|
| 4. |
VOE20929860
|
[1] |
Crankshaft Seal
|
|
| 5. |
VOE20405653
|
[2] |
Screw
|
E PROD
|
| 6. |
VOE13955900
|
[2] |
Washer
|
E PROD
|
| 7. |
VOE20405646
|
[2] |
Bushing
|
ENG - 920347
|
| 7. |
VOE21455862
|
[2] |
Bushing
|
ENG 920348 -
|
| 8. |
VOE20405672
|
[1] |
Screw
|
|
| 9. |
VOE20405605
|
[1] |
Cover
|
|
| 10. |
VOE960630
|
[2] |
Plug
|
|
| 11. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 12. |
VOE20706651
|
[1] |
Cover
|
|
| 13. |
VOE20405652
|
[1] |
Sealing ring
|
|
