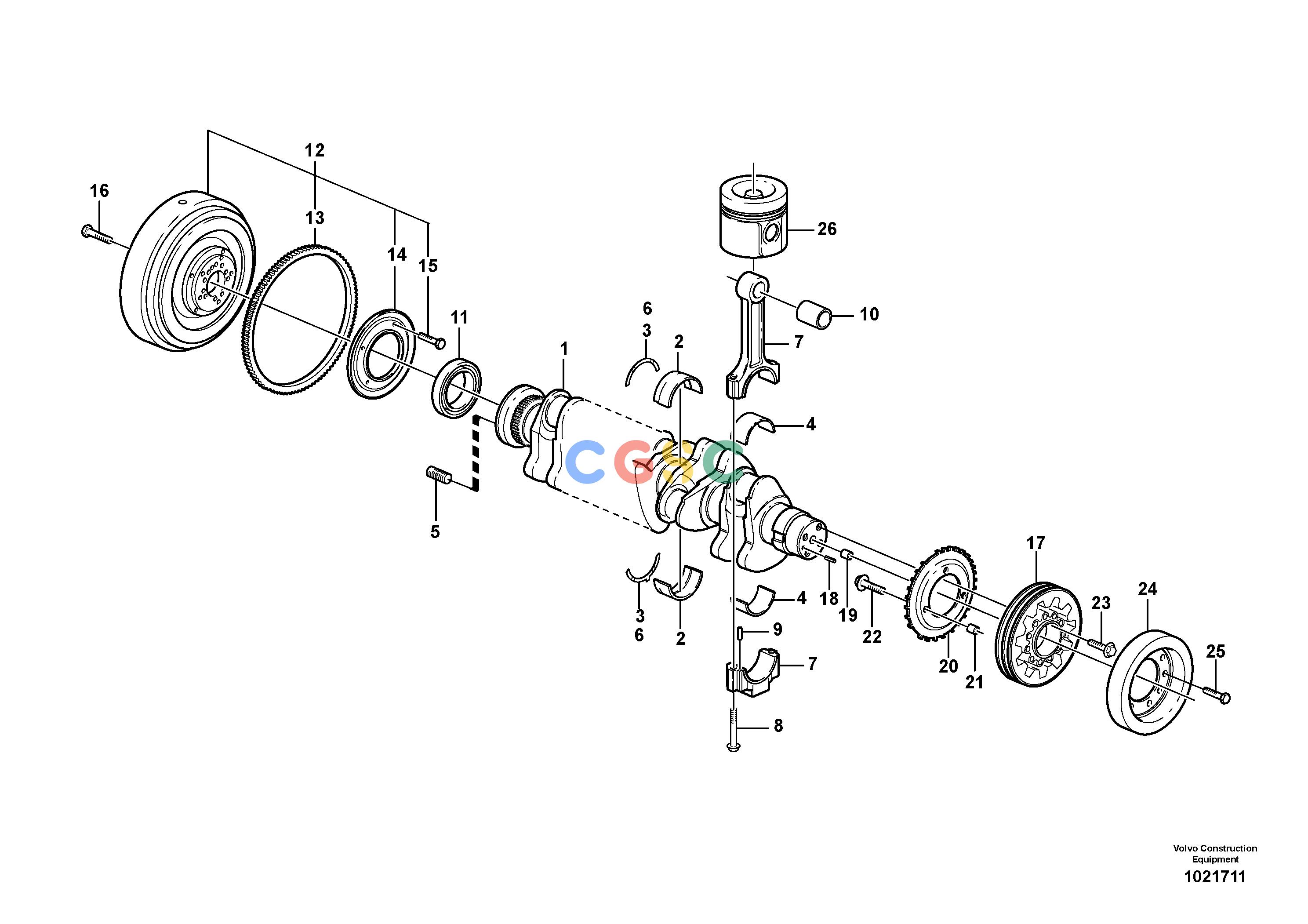

沃尔沃零件查询L60E Crankshaft and related partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20459146
|
[1] |
Crankshaft
|
ENG - 851836
|
| |
VOE20769707
|
[1] |
Crankshaft
|
ENG 851837 - 1032859
|
| |
VOE21351400
|
[1] |
Crankshaft
|
ENG 1032860 - 1099383
|
| |
VOE21351400
|
[1] |
Crankshaft
|
ENG 1099384 -
|
| 2. |
VOE20459140
|
[7] |
Main bearing
|
STD 84,00 MM
|
| |
VOE20459139
|
[7] |
Main Bearing
|
U SZ 83,75 MM
|
| 3. |
VOE20459149
|
[REQ] |
Thrust washer
|
STD
WID 14 MM
|
| |
VOE20459148
|
[REQ] |
Thrust Washer
|
WID 14 MM
THICK 2,2 MM
|
| 4. |
VOE20555403
|
[6] |
Bearing
|
ENG - 695616
STD 63,00 MM
|
| |
VOE20459147
|
[6] |
Bearing
|
ENG - 695616
U SZ 62,75 MM
|
| |
VOE20480536
|
[6] |
Bearing
|
ENG 695617 -
STD 63,00 MM
|
| |
VOE20522433
|
[6] |
Bearing
|
ENG 695617 -
U SZ 62,75 MM
|
| 5. |
VOE20459144
|
[0 1] |
Insert
|
|
| 6. |
VOE20459143
|
[REQ] |
Washer
|
STD
WID 10 MM
|
| |
VOE20459142
|
[REQ] |
Thrust Washer
|
WID 10 MM
THICK 2,2 MM
|
| 7. |
VOE20882905
|
[6] |
Connecting rod
|
|
| 8. |
VOE20459133
|
[12] |
Bolt
|
|
| 9. |
VOE20459134
|
[12] |
Pin
|
|
| 10. |
VOE20523284
|
[6] |
Bushing
|
|
| 11. |
|
[1] |
Crankshaft Seal
|
|
| 12. |
VOE20459127
|
[1] |
Flywheel
|
ENG - 876577
|
| |
VOE20917910
|
[1] |
Flywheel
|
ENG 876578 -
|
| 13. |
VOE20450830
|
[1] |
Gear
|
|
| 14. |
VOE20918003
|
[1] |
Ring
|
|
| 15. |
VOE20450834
|
[4] |
Screw
|
|
| 16. |
VOE20450835
|
[10] |
Screw
|
|
| 17. |
VOE20516985
|
[1] |
Pulley
|
|
| 18. |
VOE20450628
|
[1] |
Pin
|
|
| 19. |
VOE20405634
|
[1] |
Spring pin
|
|
| 20. |
VOE20459157
|
[1] |
Lock washer
|
|
| 21. |
VOE20450838
|
[1] |
Pin
|
|
| 22. |
VOE975108
|
[3] |
Flange screw
|
|
| 23. |
VOE20405724
|
[4] |
Screw
|
|
| 24. |
VOE21165424
|
[1] |
Vibration damper
|
|
| 25. |
VOE975108
|
[9] |
Flange screw
|
|
| 26. |
|
[6] |
Piston
|
|
