神钢零件查询(F4GE9684G J601) - ENGINE - 504375341 - 84250441 (7/13-) (10.105.AB) - CONNECTING ROD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
550 次

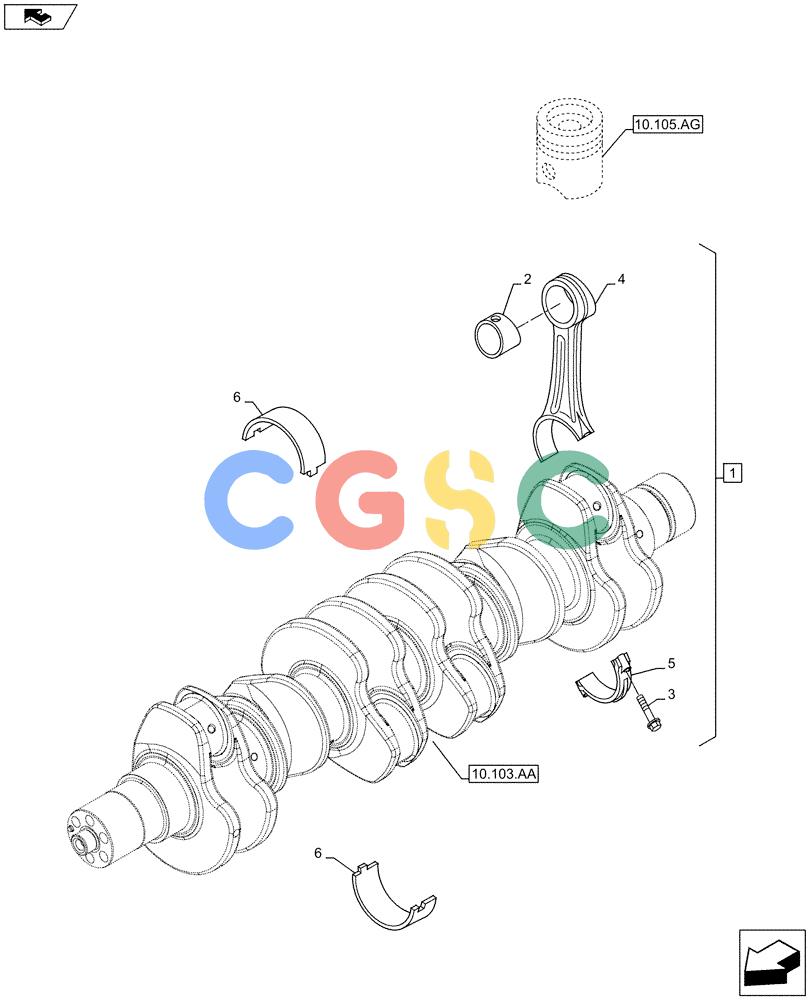

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2831298 | [6] | CONNECTING ROD | TORASSY, Incl 2 - 5 |
| 2. | 4892708 | [1] | BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L | TOR |
| 3. | 2831297 | [2] | FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9 | TOR |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Incl in 1 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCap, Incl in 1 |
| 6. | 2856309 | [6] | CRANKSHAFT BEARING | BHB |
| 6. | 4892715 | [6] | BEARING LINER | TOR |
