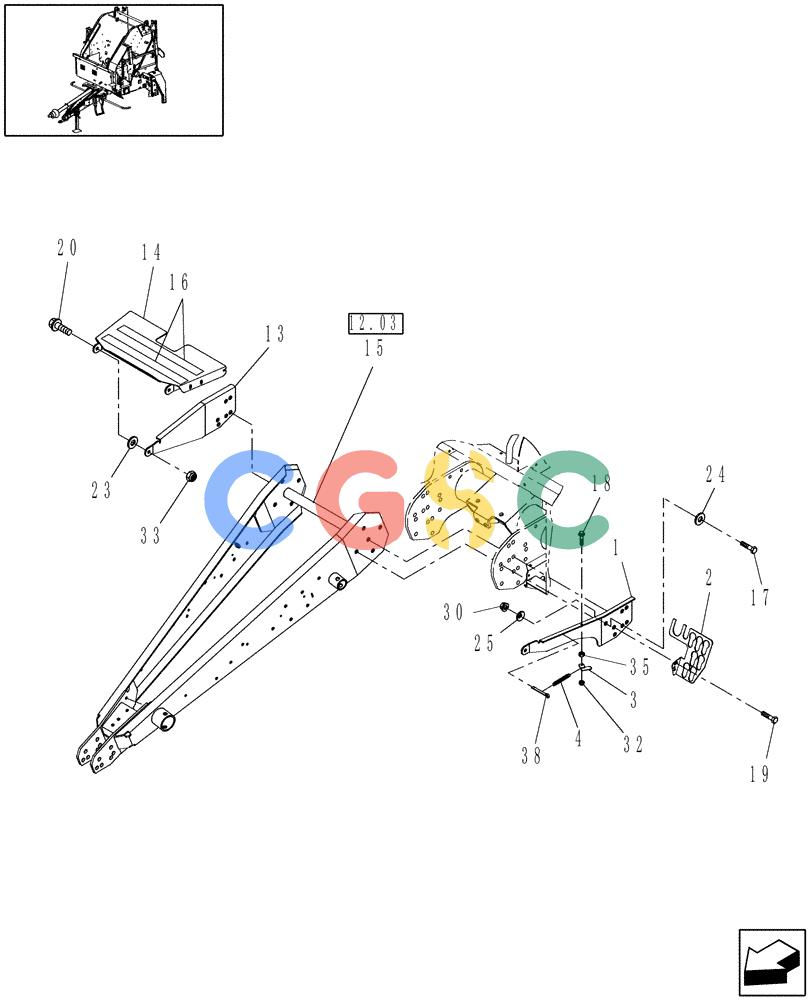

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (12.01) - STEP, FLIP-UP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86640701
|
[1] |
ANGLE
|
PA
|
| 2. |
86616759
|
[1] |
COVER PLATE
|
NH
|
| 3. |
86729257
|
[1] |
HANDLE
|
NH
|
| 4. |
18
|
[1] |
SPRING
|
NH
|
| 13. |
86643758
|
[1] |
ANGLE
|
PA
|
| 14. |
86643741
|
[1] |
COVER
|
NH
|
| 15. |
87016976
|
[1] |
TONGUE
|
PA
|
| 15. |
87016978
|
[1] |
HITCH ASSY
|
PA
Superseded by part number: 87016976
|
| 16. |
263636
|
[2] |
ANTI-SKID STRIP
|
NH
|
| 17. |
814-16060
|
[2] |
BOLT,Hex, M16 x 2 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 323866
|
| 18. |
844-6030
|
[1] |
BOLT,Hvy Hex, M6 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86511839
|
| 19. |
844-8020
|
[2] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 20. |
844-12030
|
[2] |
BOLT,Hvy Hex, M12 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9670066
|
| 23. |
495-21050
|
[2] |
WASHER,7/16"
|
CAS
Superseded by part number: 81541
|
| 24. |
64053
|
[2] |
WASHER,16.9mm ID x 38.55mm OD x 4mm Thk
|
NH
Special, Hardened Superseded by part number: 80064053, 86528652
|
| 25. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 30. |
825-2408
|
[2] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 32. |
832-46406
|
[1] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 33. |
832-46412
|
[2] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 35. |
86509499
|
[1] |
JAM NUT,3/8"-16, G2
|
ZED
|
| 38. |
432-1212
|
[1] |
COTTER PIN,3/16" x 3/4"
|
CAS
Superseded by part number: 87019
|
