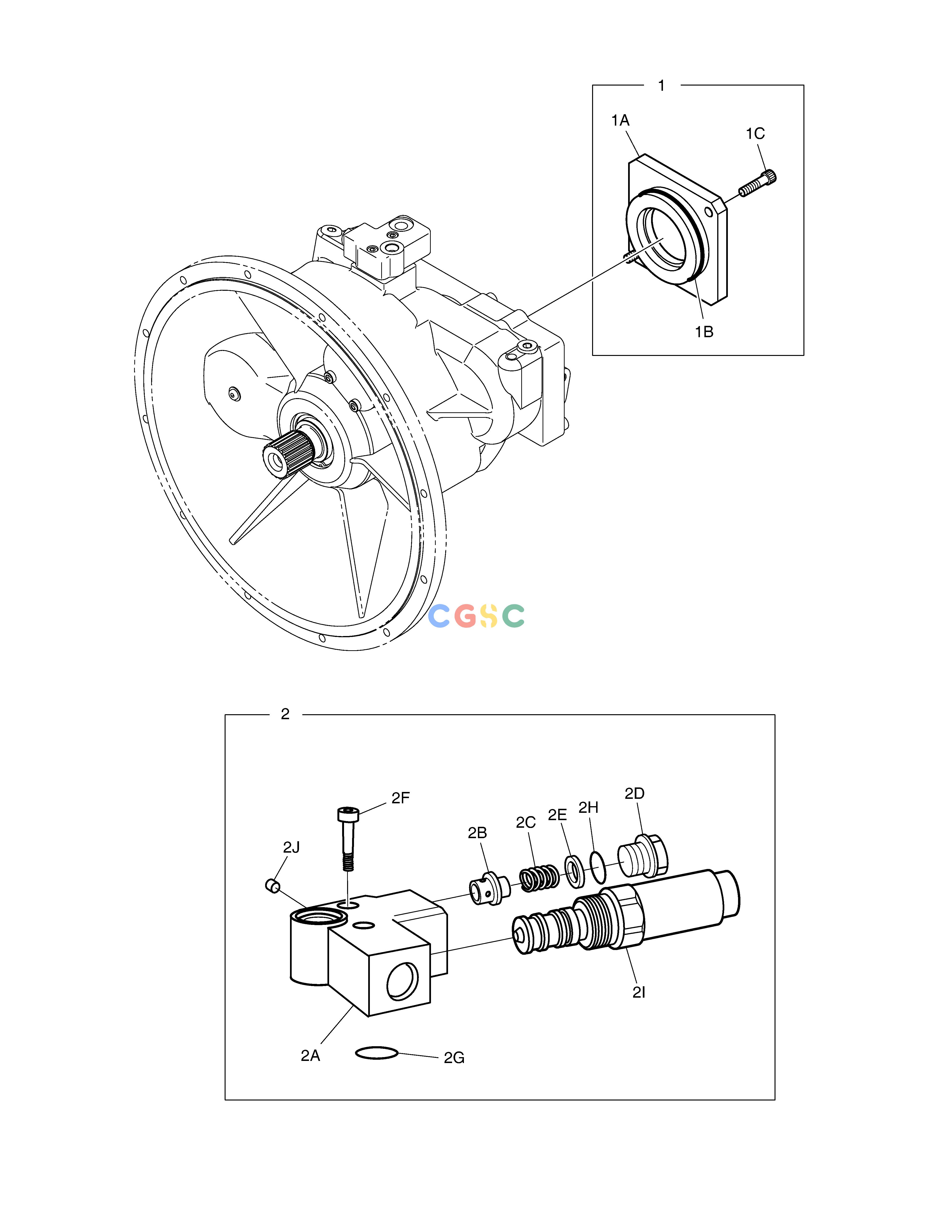

斗山零件查询MAIN PUMP - E.P.P.R VALVE DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2.430-00227
|
[1] |
COVER ASS'Y
|
|
| 1A. |
2.430-00230
|
[1] |
COVER
|
|
| 1B. |
2.180-01192
|
[1] |
O-RING
|
|
| 1C. |
2.120-00831
|
[1] |
SCREW;SOCKET
|
|
| 2. |
410116-00396
|
[1] |
|
|
| 2A. |
NA00828
|
[1] |
|
|
| 2B. |
2.409-00216
|
[1] |
PISTON;VALVE
|
|
| 2C. |
2.131-00417
|
[1] |
SPRING;PRESSURE
|
|
| 2D. |
2.120-00617
|
[1] |
SCREW;LOCKING
|
|
| 2E. |
2.114-00877
|
[1] |
WASHER
|
|
| 2F. |
S2209361
|
[2] |
BOLT;SOCKET M8X1.25X35
|
|
| 2G. |
2.180-01180
|
[2] |
O-RING
|
|
| 2H. |
2.180-01182
|
[1] |
O-RING
|
|
| 2I. |
410116-00395
|
[1] |
|
|
| 2J. |
2.123-00138
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
