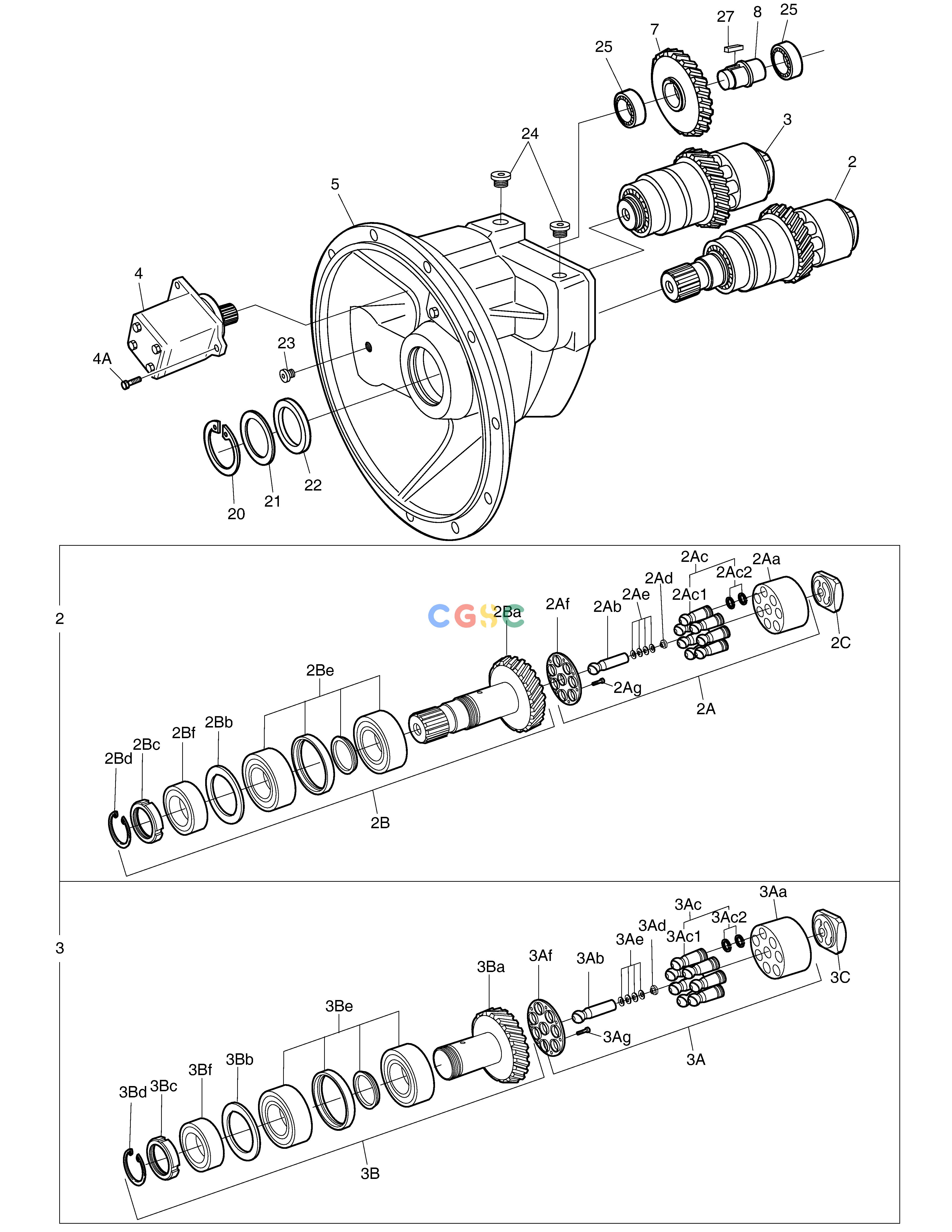

斗山零件查询MAIN PUMP - PUMP DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
210204-00082
|
[1] |
|
|
| 20. |
S6510800
|
[1] |
RING,RETAINING
|
|
| 21. |
401106-00226
|
[1] |
|
|
| 22. |
2.114-00175
|
[1] |
SHIM
|
|
| 23. |
2.120-00611
|
[1] |
SCREW;LOCKING
|
|
| 24. |
2.120-00624
|
[3] |
SCREW;LOCKING
|
|
| 25. |
2.109-00192
|
[2] |
BEARING;PLAIN ROLLER
|
|
| 27. |
2.405-00154
|
[1] |
SHAFT;KEY
|
|
| 2A. |
210204-00084
|
[1] |
|
|
| 2Aa. |
400319-00550
|
[1] |
|
|
| 2Ab. |
120501-03302
|
[1] |
|
|
| 2Ac. |
400901-00081
|
[7] |
|
|
| 2Ac1. |
NA00796
|
[1] |
PISTON
|
|
| 2Ac2. |
NA00986
|
[2] |
|
|
| 2Ad. |
110917-00653
|
[1] |
|
|
| 2Ae. |
111601-00834
|
[4] |
|
|
| 2Af. |
250201-03386
|
[1] |
|
|
| 2Ag. |
K9001916
|
[14] |
SCREW;PAN HEAD
|
|
| 2B. |
130712-01768
|
[1] |
|
|
| 2Ba. |
130712-01767
|
[1] |
|
|
| 2Bb. |
110947-00482
|
[1] |
|
|
| 2Bc. |
250201-03387
|
[1] |
|
|
| 2Bd. |
K9001914
|
[1] |
RING;RETAINING
|
|
| 2Be. |
140107-00625
|
[1] |
|
|
| 2Bf. |
2.109-00248
|
[1] |
BEARING;TAPERED-ROLLER
|
|
| 2C. |
250201-03388
|
[1] |
|
|
| 3. |
210204-00083
|
[1] |
|
|
| 3A. |
210204-00084
|
[1] |
|
|
| 3Aa. |
400319-00550
|
[1] |
|
|
| 3Ab. |
120501-03302
|
[1] |
|
|
| 3Ac. |
400901-00081
|
[7] |
|
|
| 3Ac1. |
NA00796
|
[1] |
PISTON
|
|
| 3Ac2. |
NA00986
|
[2] |
|
|
| 3Ad. |
110917-00653
|
[1] |
|
|
| 3Ae. |
111601-00834
|
[4] |
|
|
| 3Af. |
250201-03386
|
[1] |
|
|
| 3Ag. |
K9001916
|
[14] |
SCREW;PAN HEAD
|
|
| 3B. |
130712-01769
|
[1] |
|
|
| 3Ba. |
130712-01770
|
[1] |
|
|
| 3Bb. |
110947-00482
|
[1] |
|
|
| 3Bc. |
250201-03387
|
[1] |
|
|
| 3Bd. |
K9001914
|
[1] |
RING;RETAINING
|
|
| 3Be. |
140107-00625
|
[1] |
|
|
| 3Bf. |
2.109-00248
|
[1] |
BEARING;TAPERED-ROLLER
|
|
| 3C. |
250201-01409
|
[1] |
|
|
| 4. |
400910-00134
|
[1] |
|
|
| 4A. |
2.120-00829
|
[2] |
BOLT;SOCKET M10X20
|
|
| 5. |
NA00539
|
[1] |
|
|
| 7. |
130418-00619
|
[1] |
|
|
| 8. |
K9001920
|
[1] |
SHAFT;STUB
|
|
