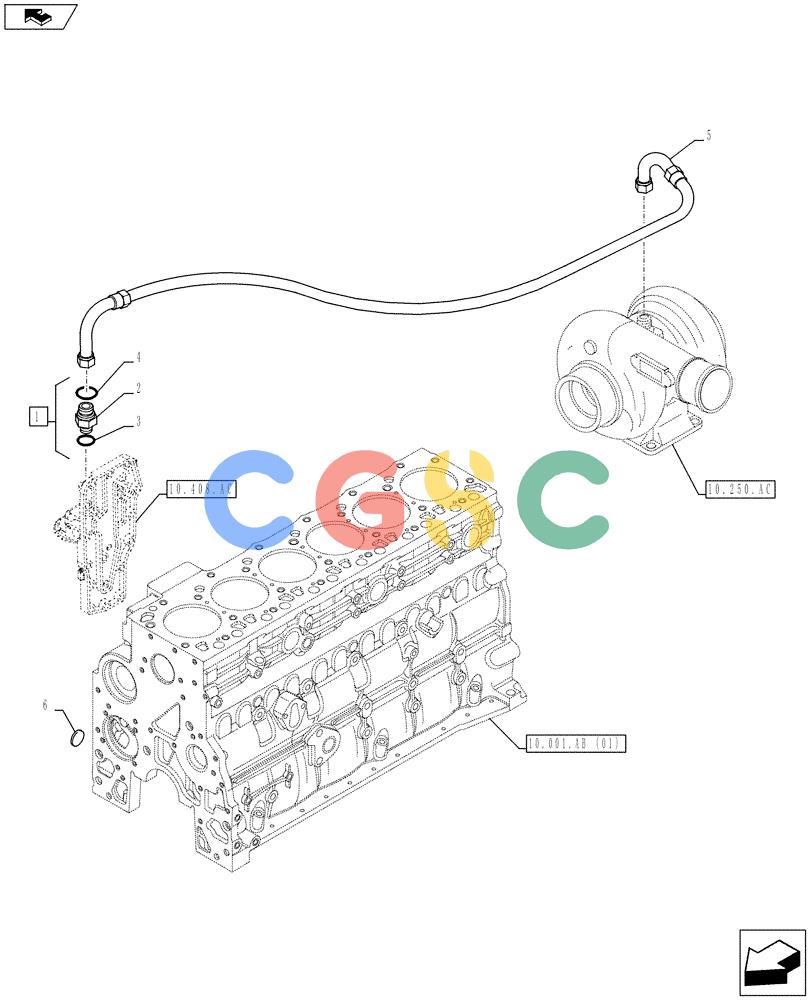

神钢零件查询(F4GE9684G J601) - ENGINE - 504375341 - 84250441 (7/13-) (10.250.AD) - TURBOCHARGER, SUPPLY, CONNECTING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857015 | [1] | HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L | TORASSY, Incl 2 - 4 Superseded by part number: |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONJunction, Incl in 1 |
| 3. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TORID = 9.3 x 2.2 |
| 4. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 5. | 2852679 | [1] | HYDRAULIC HOSE | TOR Superseded by part number: 504084095 |
| 6. | 4895089 | [1] | PLUG,0.886" L | TOR |
