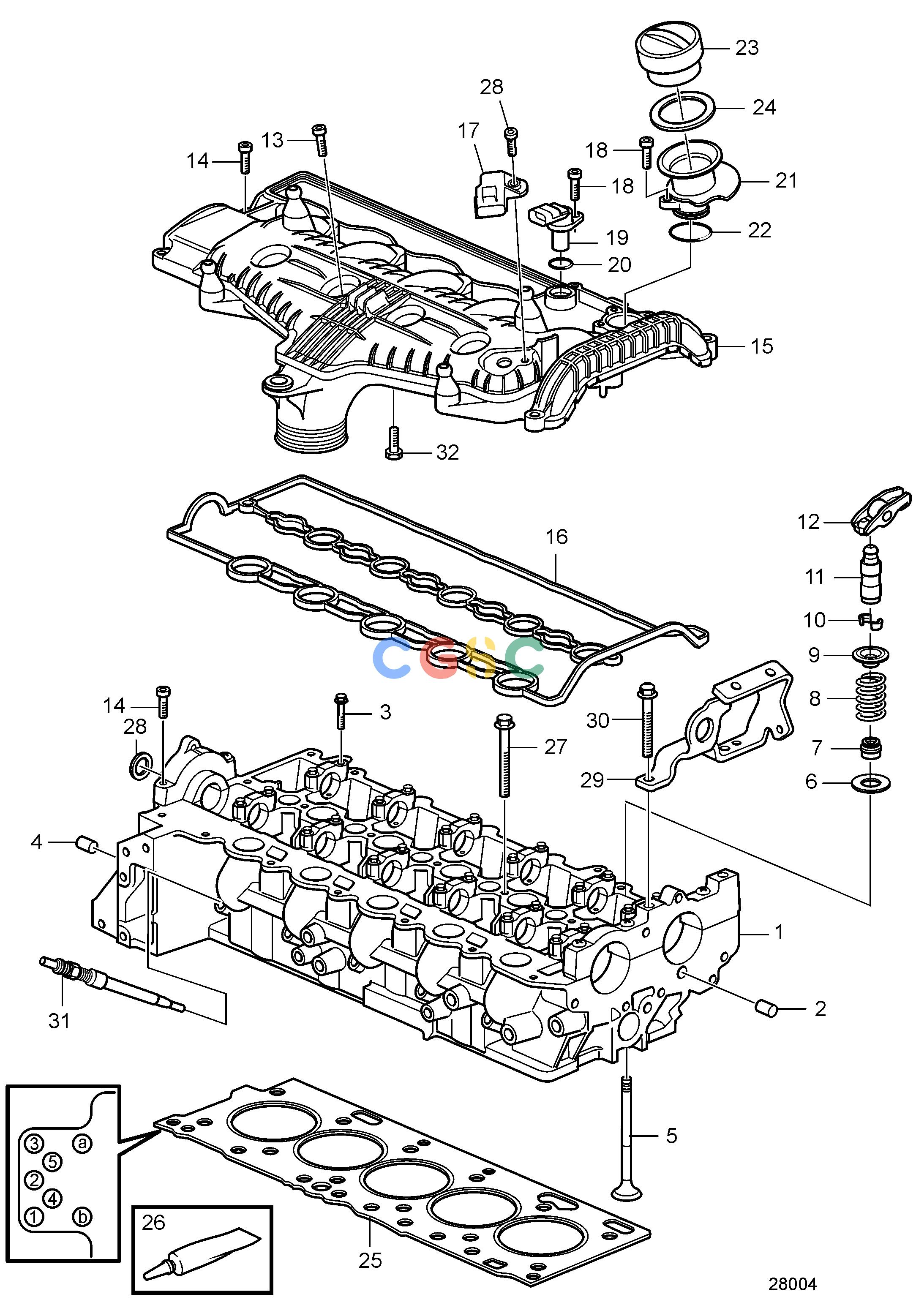

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801663
|
[1] |
Cylinder head
|
|
| 1. |
36010025
|
[1] |
Cylinder head
|
|
| 1. |
3801745
|
[1] |
Cylinder head
|
|
| 1. |
31460230
|
[1] |
Cylinder head
|
|
| 2. |
24426721
|
[1] |
Expansion plug
|
|
| 3. |
982761
|
[24] |
Flange screw
|
M6x35mm
|
| 4. |
30670582
|
[3] |
Plug
|
|
| 5. |
8631650
|
[10] |
Inlet valve
|
|
| 5. |
8631651
|
[10] |
Exhaust valve
|
|
| 6. |
8631655
|
[20] |
Valve spring washer, lower
|
|
| 7. |
8631652
|
[20] |
Valve stem seal
|
|
| 8. |
31258132
|
[20] |
Valve spring
|
|
| 9. |
8631654
|
[20] |
Valve spring washer, upper
|
|
| 10. |
9454613
|
[40] |
Valve collet
|
|
| 11. |
31251885
|
[20] |
Pivot
|
|
| 12. |
8670045
|
[20] |
Tappet
|
|
| 13. |
987740
|
[5] |
Flange screw
|
|
| 14. |
987494
|
[12] |
Flange screw
|
|
| 15. |
31430316
|
[1] |
Valve cover
|
|
| 16. |
31430317
|
[1] |
Gasket
|
|
| 16. |
30777600
|
[1] |
Gasket
|
Replaced by 31430317
|
| 17. |
31216308
|
[1] |
Pressure sensor
|
|
| 18. |
986072
|
[5] |
Six point socket scr
|
M6x25mm
|
| 19. |
8658726
|
[1] |
Sensor
|
|
| 20. |
30756062
|
[1] |
O-ring
|
|
| 21. |
31330189
|
[1] |
Oil filler pipe
|
|
| 22. |
30757159
|
[1] |
O-ring
|
|
| 23. |
3819129
|
[1] |
Oil filler cap
|
|
| 24. |
30677740
|
[1] |
O-ring
|
|
| 25. |
|
|
|
Gasket (a) not valid for VP
|
| 25. |
31392321
|
[1] |
Cylinder head gasket
|
Hole 5 and b, Class 1
|
| 25. |
31392322
|
[1] |
Cylinder head gasket
|
Hole 4, 5 and b, Class 2
|
| 25. |
31392323
|
[1] |
Cylinder head gasket
|
Hole 3, 4, 5 and b, Class 3
|
| 25. |
31392324
|
[1] |
Cylinder head gasket
|
Hole 2, 3, 4, 5 and b, Class 4
|
| 25. |
31392325
|
[1] |
Cylinder head gasket
|
Hole 1, 5 and b, Class 5
|
| 26. |
1161059
|
[1] |
Sealing compound
|
|
| 27. |
30777636
|
[12] |
Flange screw
|
M12x197mm
|
| 28. |
8631561
|
[1] |
Sealing ring
|
|
| 29. |
21806510
|
[1] |
Lifting eye
|
|
| 30. |
965181
|
[2] |
Flange screw
|
M8x70mm
|
| 31. |
30777311
|
[5] |
Glow plug
|
|
| 32. |
987349
|
[12] |
Six point socket scr
|
|
