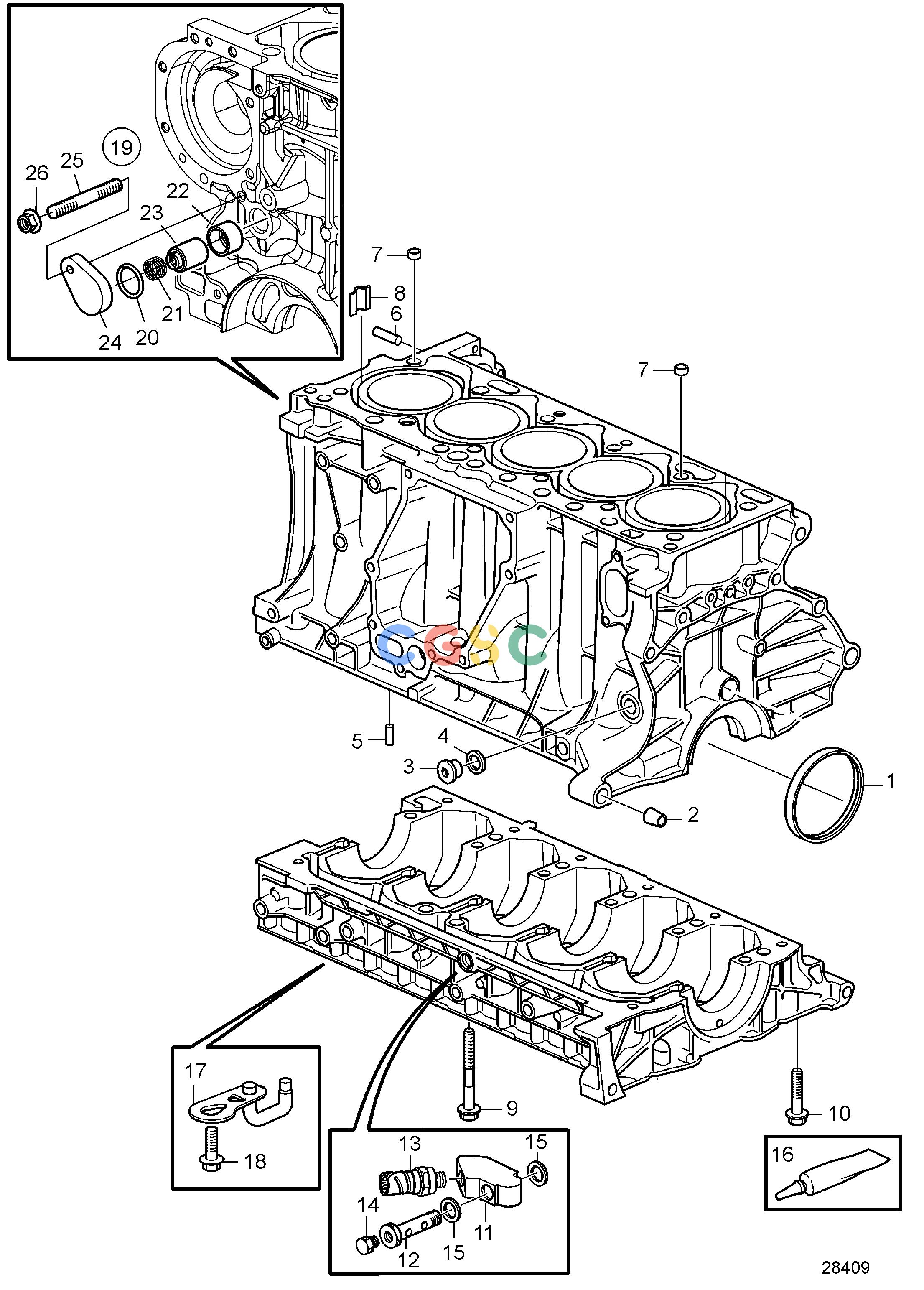

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
31330091
|
[1] |
Sealing ring
|
|
| 2. |
1256394
|
[2] |
Guide sleeve
|
|
| 3. |
30713237
|
[1] |
Plug
|
|
| 4. |
11996
|
[1] |
Gasket
|
|
| 5. |
1383730
|
[2] |
Locating pin
|
|
| 6. |
950542
|
[2] |
Pin
|
|
| 7. |
1366129
|
[2] |
Guide sleeve
|
|
| 8. |
8631501
|
[1] |
Guide rail
|
|
| 9. |
31368044
|
[12] |
Screw
|
M10x117mm
|
| 10. |
987962
|
[12] |
Flange screw
|
M8x70mm
|
| 11. |
21636474
|
[1] |
Connection block
|
|
| 12. |
21636477
|
[1] |
Hollow screw
|
|
| 13. |
21634021
|
[1] |
Pressure sensor
|
|
| 14. |
981749
|
[1] |
Plug
|
|
| 15. |
11994
|
[2] |
Gasket
|
|
| 16. |
1161771
|
[1] |
Sealing compound
|
|
| 17. |
31401266
|
[5] |
Piston cooling jet
|
|
| 18. |
982777
|
[5] |
Flange screw
|
|
| 19. |
22543924
|
[1] |
Kit
|
|
| 20. |
949657
|
[1] |
O-ring
|
|
| 21. |
22468375
|
[1] |
Spring
|
|
| 22. |
22448834
|
[1] |
Adapter
|
|
| 23. |
22544033
|
[1] |
Piston cooling valve
|
|
| 24. |
22448833
|
[1] |
Cover
|
Replaced by 22716222
|
| 24. |
22716222
|
[1] |
Cover
|
|
| 25. |
953036
|
[1] |
Stud
|
|
| 26. |
990939
|
[1] |
Flange nut
|
|
