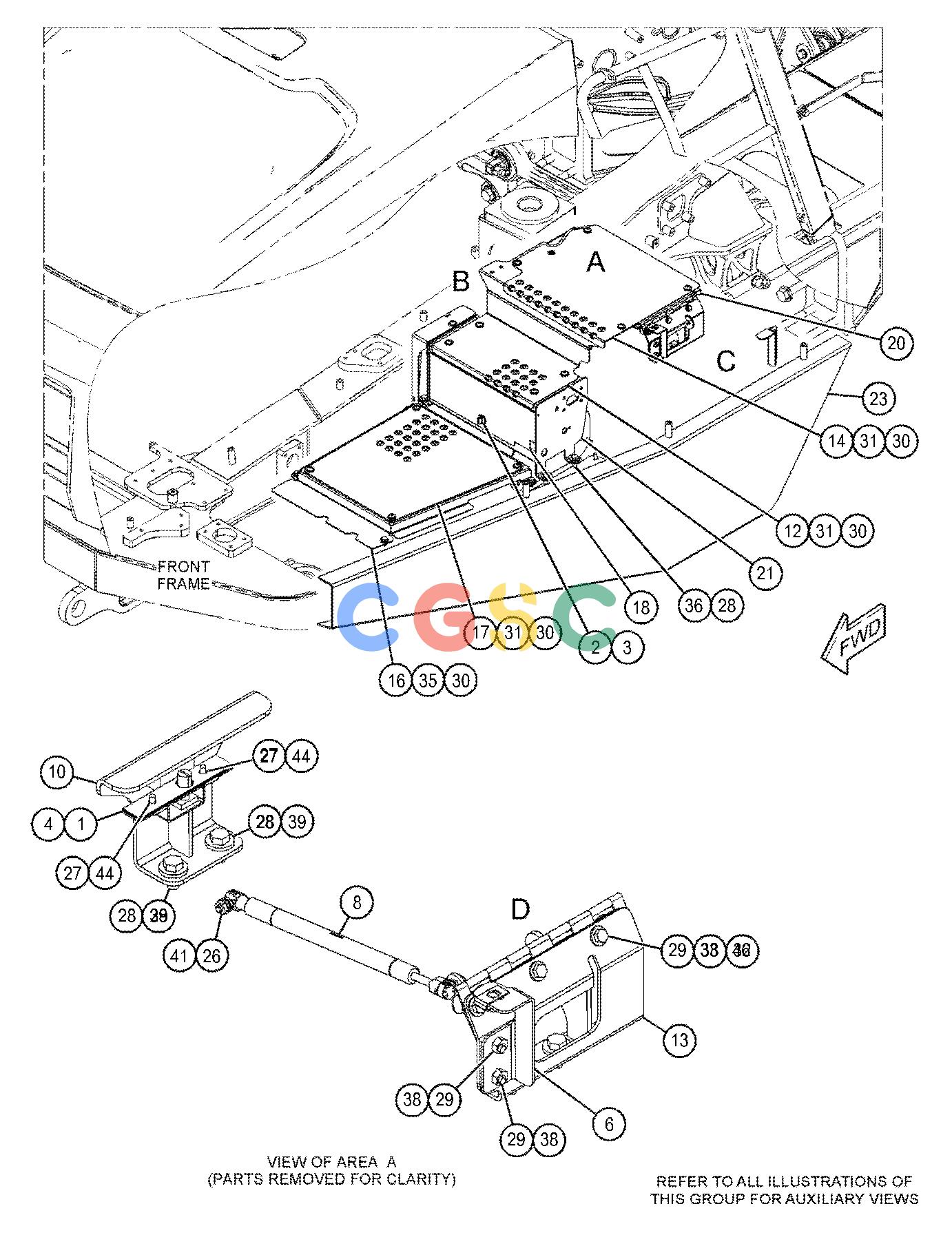

卡特零件查询（725C） 449-3728: COVER GP-HYDRAULIC TANK
广数供应链运营团队, 14 02月, 2025，浏览：
524 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5U-4229 | [1] | LATCH | |
| 2. | 187-6156 | [1] | LATCH AS | |
| 3. | 201-1379 | [4] | SHIM(1-MM THK) | |
| 4. | 253-5657 | [3] | SHIM(1-MM THK) | |
| 5. | 281-1543 | [1] | PLATE | |
| 6. | 505-7483 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 7. | 339-5225 | [1] | PLATE-END | |
| 8. | 355-8484 | [1] | STRUT-GAS | |
| 9. | 369-8736 | [1] | BRACKET | |
| 10. | 381-8612 | [1] | BRACKET AS | |
| 11. | 455-6329 | [1] | HINGE AS | |
| 12. | 381-8616 | [1] | PLATE-TREAD | |
| 13. | 460-0637 | [1] | BRACKET AS | |
| 14. | 381-8622 | [1] | PLATE-TREAD | |
| 15. | 383-2615 | [1] | COVER AS-GUARD | |
| 16. | 391-0682 | [1] | PLATE AS-PLATFORM | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 17. | 391-0684 | [1] | PLATE-TREAD | |
| 18. | 415-0268 | [1] | COVER AS | |
| 19. | 418-1142 | [1] | BRACKET | |
| 20. | 419-9140 | [1] | PLATE AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 21. | 437-2588Y | [1] | PANEL GP-SWITCH | |
| 22. | 449-3325 | [1] | COVER AS | |
| | 159-9541M | [3] | NUT-WELD(M10X1.5-THD) | |
| 23. | 449-3724 | [1] | COVER AS | |
| | 9R-3761M | [3] | BOSS(M10X1.5X51-MM) | |
| | 159-9541M | [2] | NUT-WELD(M10X1.5-THD) | |
| 24. | 449-8069 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 25. | 450-8116 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 26. | 160-8500M | [2] | NUT(M8X1.25-THD) | |
| 27. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 28. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 29. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 30. | 7X-7729 | [29] | WASHER(11X25X3-MM THK) | |
| 31. | 8C-8585M | [13] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 32. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 34. | 8T-4136M | [20] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 36. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 37. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| 38. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 39. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 40. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 41. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 43. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 44. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 45. | 456-7339 | [1] | PLATE-COVER | |
| 46. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 47. | 259-1127 | [1] | NUT-CLIP | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
