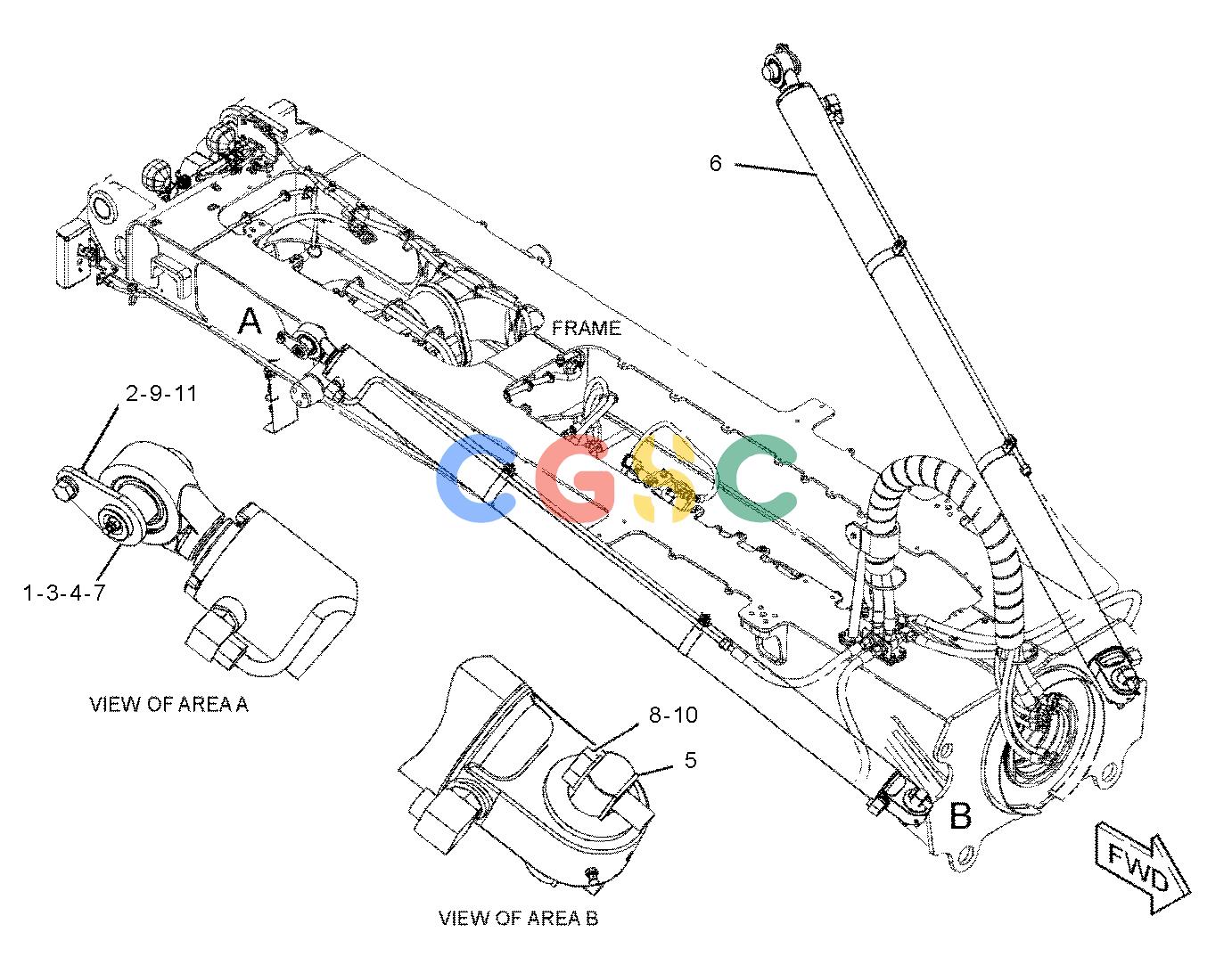

卡特零件查询（725C） 422-8621: CYLINDER & MTG GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
591 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-9202 | [2] | PIN AS-TIP CYLINDER | |
| 2. | 2U-9204 | [2] | SPACER(17X25.4X11.5-MM THK) | |
| 3. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 4. | 5U-7151 | [2] | CAP-GREASE | |
| 5. | 164-8408 | [4] | PLATE-SPACER | |
| 6. | 364-2919Y | [1] | CYLINDER GP-HOIST | |
| 7. | 6K-6967 | [2] | ADAPTER-PIPE | |
| 8. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 9. | 8T-4779M | [2] | BOLT(M16X2X35-MM) | |
| 10. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| 11. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
