卡特零件查询（725C） 285-4031: CYLINDER GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
934 次

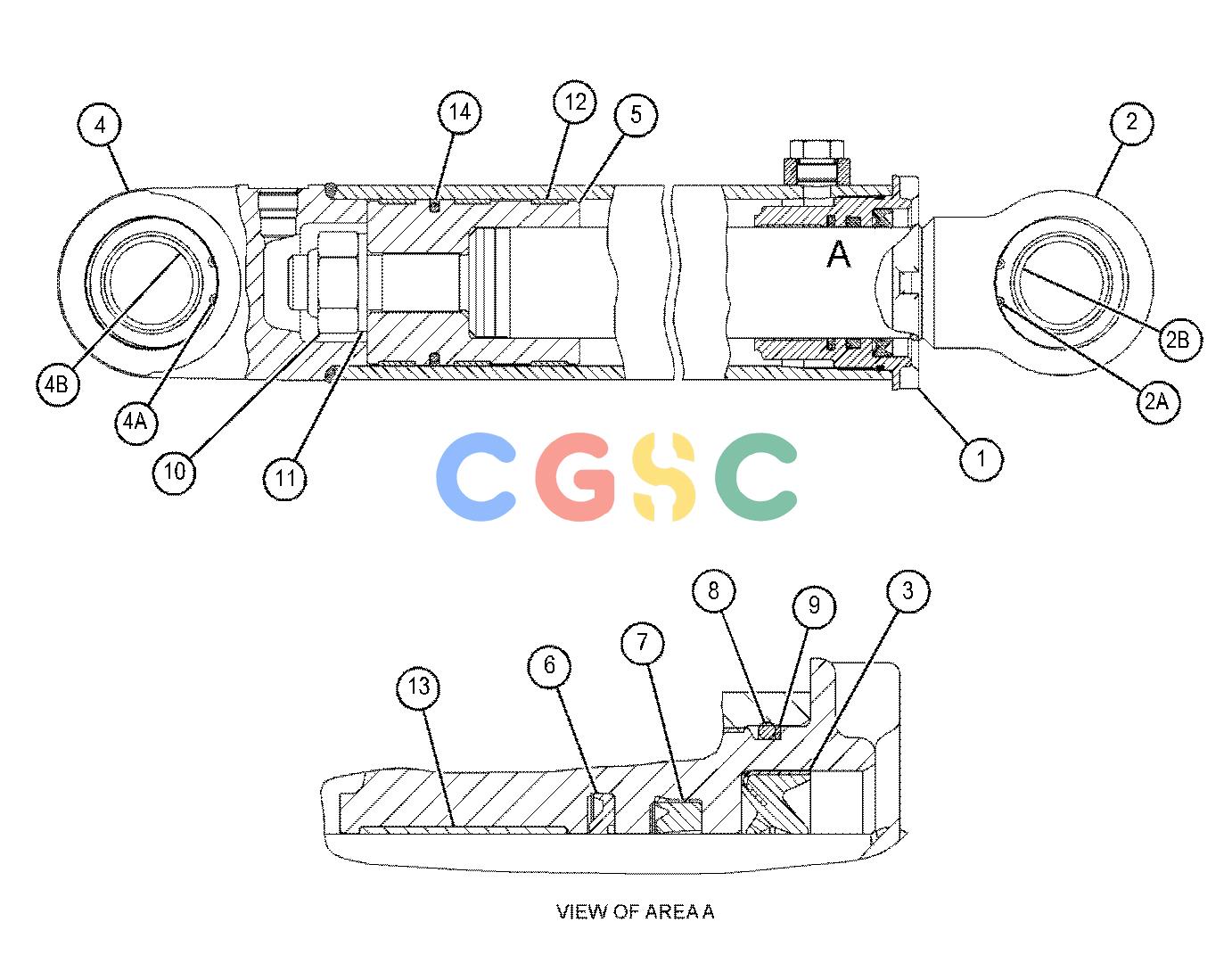

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 141-4337 | [1] | HEAD | |
| 2. | 141-4339 | [1] | ROD AS | |
| 2A. | 1J-6472 | [2] | RING-RETAINING | |
| 2B. | 555-1699 | [1] | BEARING-ALIGNING | |
| 3. | 312-4247J | [1] | SEAL-WIPER | |
| 4. | 241-4072 | [1] | CYLINDER AS | |
| 4A. | 1J-6472 | [2] | RING-RETAINING | |
| 4B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| 5. | 283-8467 | [1] | PISTON | |
| 6. | 312-4248J | [1] | SEAL AS-BUFFER | |
| 7. | 421-4025J | [1] | SEAL-U-CUP | |
| 8. | 175-7902J | [1] | SEAL-O-RING | |
| 9. | 1K-7095J | [1] | RING-BACKUP | |
| 10. | 2U-2576 | [1] | NUT(1-1/2-6-THD) | |
| 11. | 3S-6162 | [1] | WASHER-HARD(40.5X67X6-MM THK) | |
| 12. | 4J-3745J | [3] | RING-WEAR | |
| 13. | 8T-7584J | [1] | RING-WEAR | |
| 14. | 495-8197J | [1] | SEAL AS | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 449-7672J | [1] | KIT-HYD CYLINDER SEAL | |
| | | | (INCLUDES BACK-UP RING, WEAR RINGS, O-RINGS, WIPER SEAL, BUFFER SEAL, U-CUP SEAL & SEAL AS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
