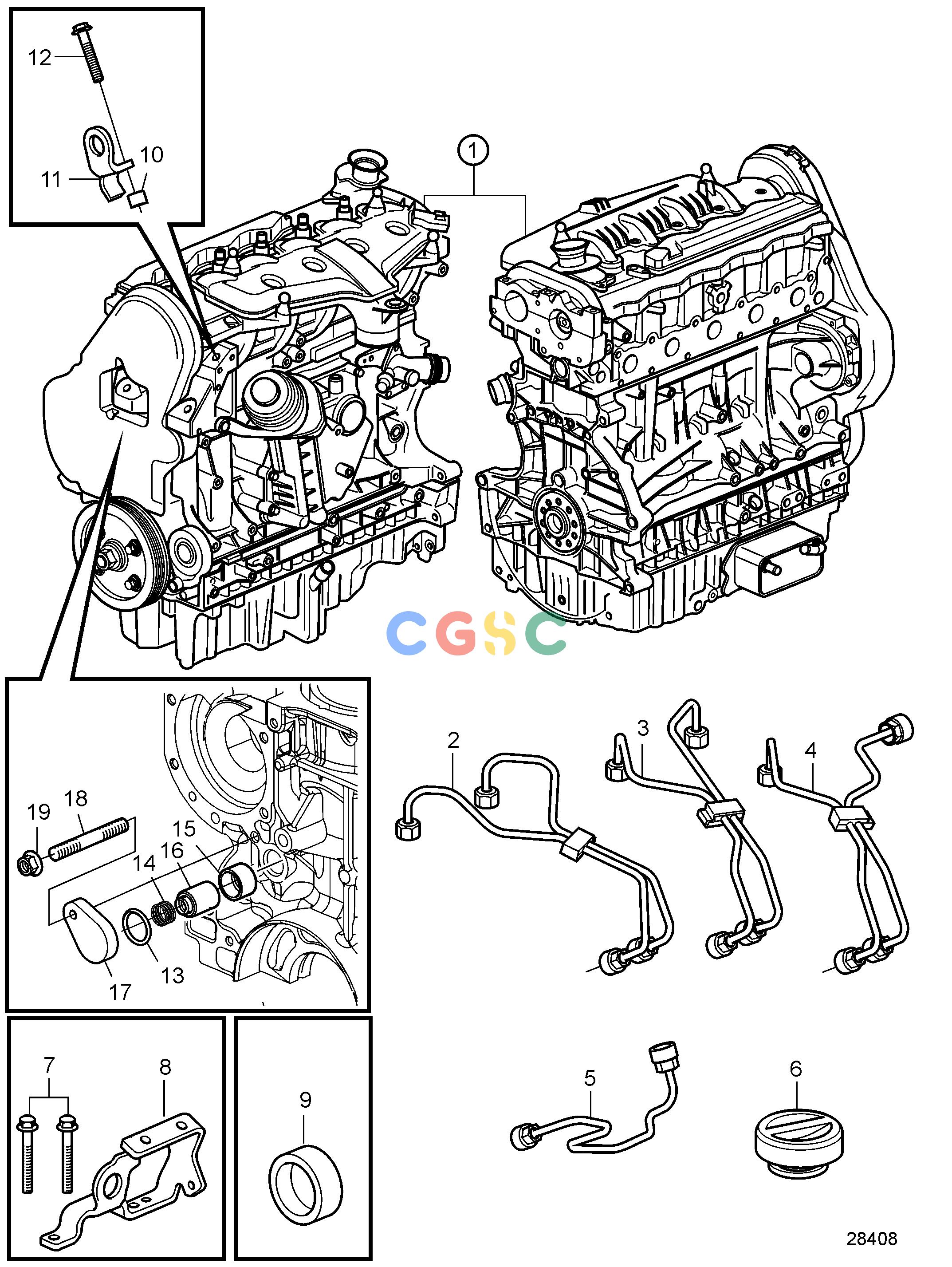

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HEngineLong Block, ExchangeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801634
|
[1] |
Longblock
|
|
| 2. |
31251172
|
[1] |
Delivery pipe
|
|
| 3. |
31251173
|
[1] |
Delivery pipe
|
|
| 4. |
31251174
|
[1] |
Delivery pipe
|
|
| 5. |
31251175
|
[1] |
Delivery pipe
|
|
| 6. |
3819129
|
[1] |
Oil filler cap
|
|
| 7. |
965181
|
[2] |
Flange screw
|
|
| 8. |
21806510
|
[1] |
Lifting eye
|
|
| 9. |
955083
|
[1] |
Cap plug
|
|
| 10. |
1678297
|
[1] |
Spacer sleeve
|
|
| 11. |
21146441
|
[1] |
Lifting eye
|
|
| 12. |
984850
|
[1] |
Flange screw
|
|
| 13. |
949657
|
[1] |
O-ring
|
|
| 14. |
22468375
|
[1] |
Spring
|
|
| 15. |
22448834
|
[1] |
Adapter
|
|
| 16. |
22544033
|
[1] |
Piston cooling valve
|
|
| 17. |
22716222
|
[1] |
Cover
|
|
| 18. |
953036
|
[1] |
Stud
|
|
| 19. |
990939
|
[1] |
Flange nut
|
|
