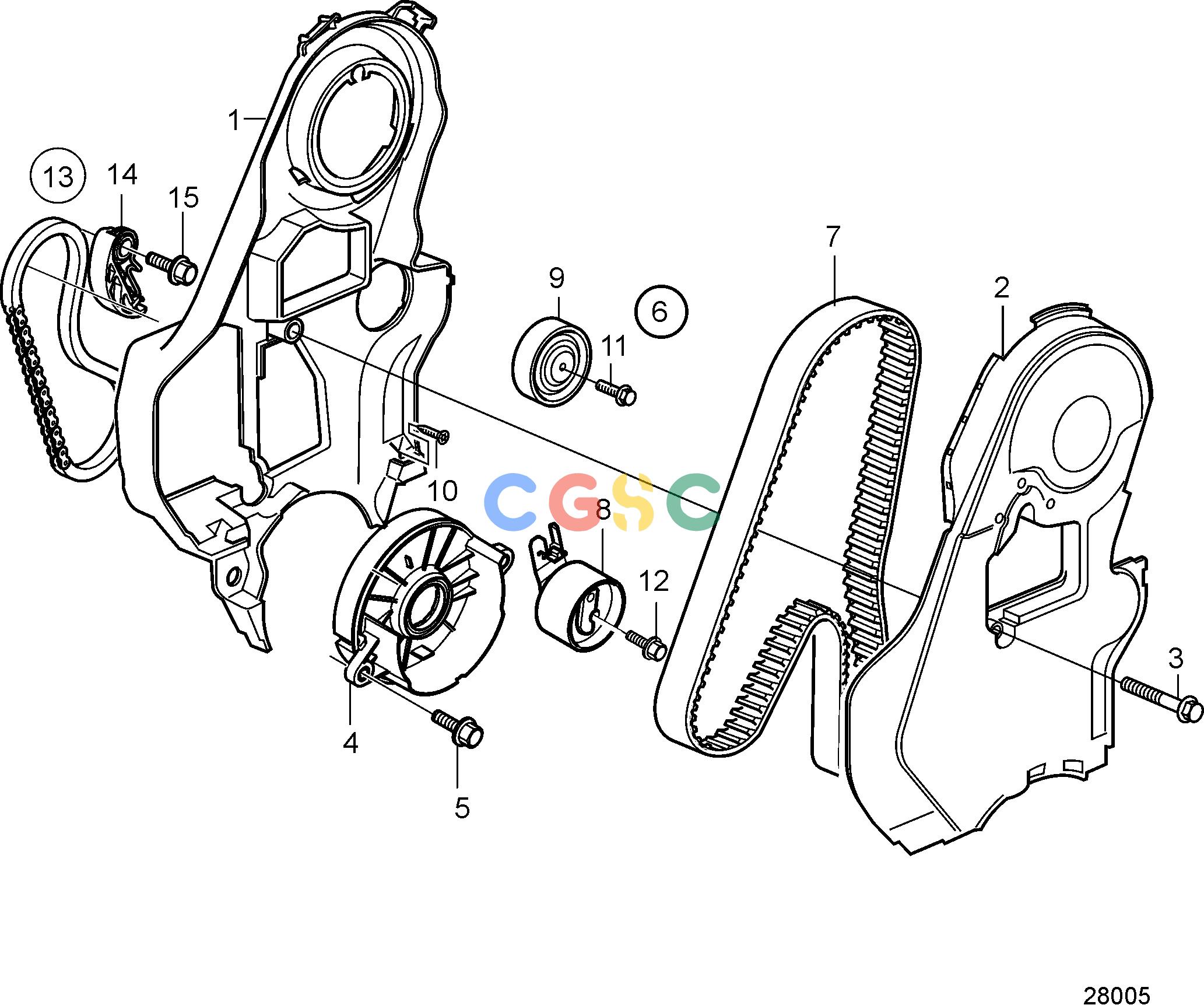

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HEngineTiming Gear HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30757901
|
[1] |
Belt protector
|
Rear
|
| 2. |
30757900
|
[1] |
Belt protector
|
Front
|
| 3. |
987966
|
[1] |
Flange screw
|
|
| 4. |
31293007
|
[1] |
Belt protector
|
Lower
|
| 5. |
982777
|
[2] |
Flange screw
|
|
| 6. |
31359568
|
[1] |
Tooth belt
|
|
| 7. |
30777779
|
[1] |
Tooth belt
|
|
| 8. |
31339542
|
[1] |
Tensioner
|
|
| 9. |
8692561
|
[1] |
Idler pulley
|
|
| 10. |
986387
|
[3] |
Six point socket scr
|
|
| 11. |
985187
|
[1] |
Flange screw
|
|
| 12. |
987498
|
[1] |
Sems screw
|
|
| 13. |
31375415
|
[1] |
Drive chain
|
|
| 14. |
31272500
|
[1] |
Chain tensioner
|
|
| 15. |
31272502
|
[1] |
Guide screw
|
|
