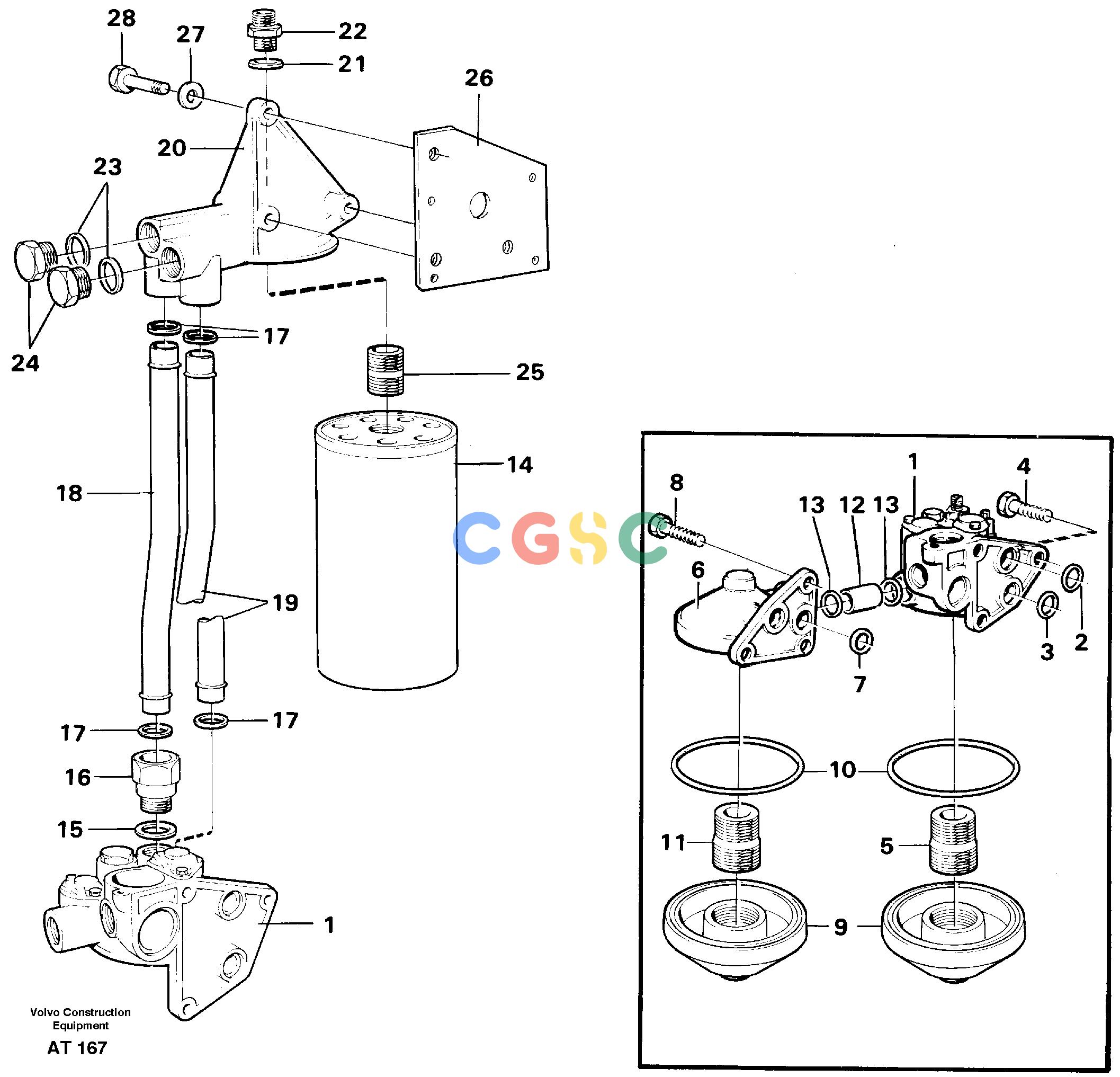

沃尔沃零件查询L90C Oil filterNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Filter Housing
|
|
| 2. |
VOE13949656
|
[2] |
O-ring
|
|
| 3. |
VOE13949722
|
[1] |
O-ring
|
|
| 4. |
VOE946329
|
[2] |
Flange screw
|
M10x25
|
| |
VOE60113101
|
[1] |
Flange screw
|
M10x65
|
| 5. |
|
[1] |
Nipple
|
|
| 6. |
VOE471601
|
[1] |
Bracket
|
|
| 7. |
VOE13949656
|
[2] |
O-ring
|
|
| 8. |
VOE946329
|
[3] |
Flange screw
|
|
| 9. |
VOE3812509
|
[2] |
Casing
|
|
| 10. |
VOE13948981
|
[2] |
O-ring
|
|
| 11. |
VOE469904
|
[1] |
Nipple
|
|
| 12. |
VOE465857
|
[1] |
Tube
|
|
| 13. |
VOE471956
|
[2] |
Sealing ring
|
|
| 14. |
VOE21707134
|
[1] |
Oil Filter
|
|
| 15. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 16. |
VOE11030597
|
[1] |
Nipple
|
|
| 17. |
VOE471956
|
[4] |
Sealing ring
|
|
| 18. |
VOE11030617
|
[1] |
Pipe
|
|
| 19. |
VOE11030616
|
[1] |
Pipe
|
|
| 20. |
VOE11030594
|
[1] |
Housing
|
|
| 21. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 22. |
VOE13963948
|
[1] |
Nipple
|
|
| 23. |
VOE13947627
|
[2] |
Plane gasket
|
|
| 24. |
VOE13966145
|
[2] |
Plug
|
|
| 25. |
VOE466623
|
[1] |
Nipple
|
|
| 26. |
VOE11030605
|
[1] |
Bracket
|
|
| 27. |
VOE13955894
|
[3] |
Washer
|
|
| 28. |
VOE940132
|
[2] |
Hexagon screw
|
M8x35
|
| |
VOE955306
|
[1] |
Hexagon screw
|
M8x80
|
