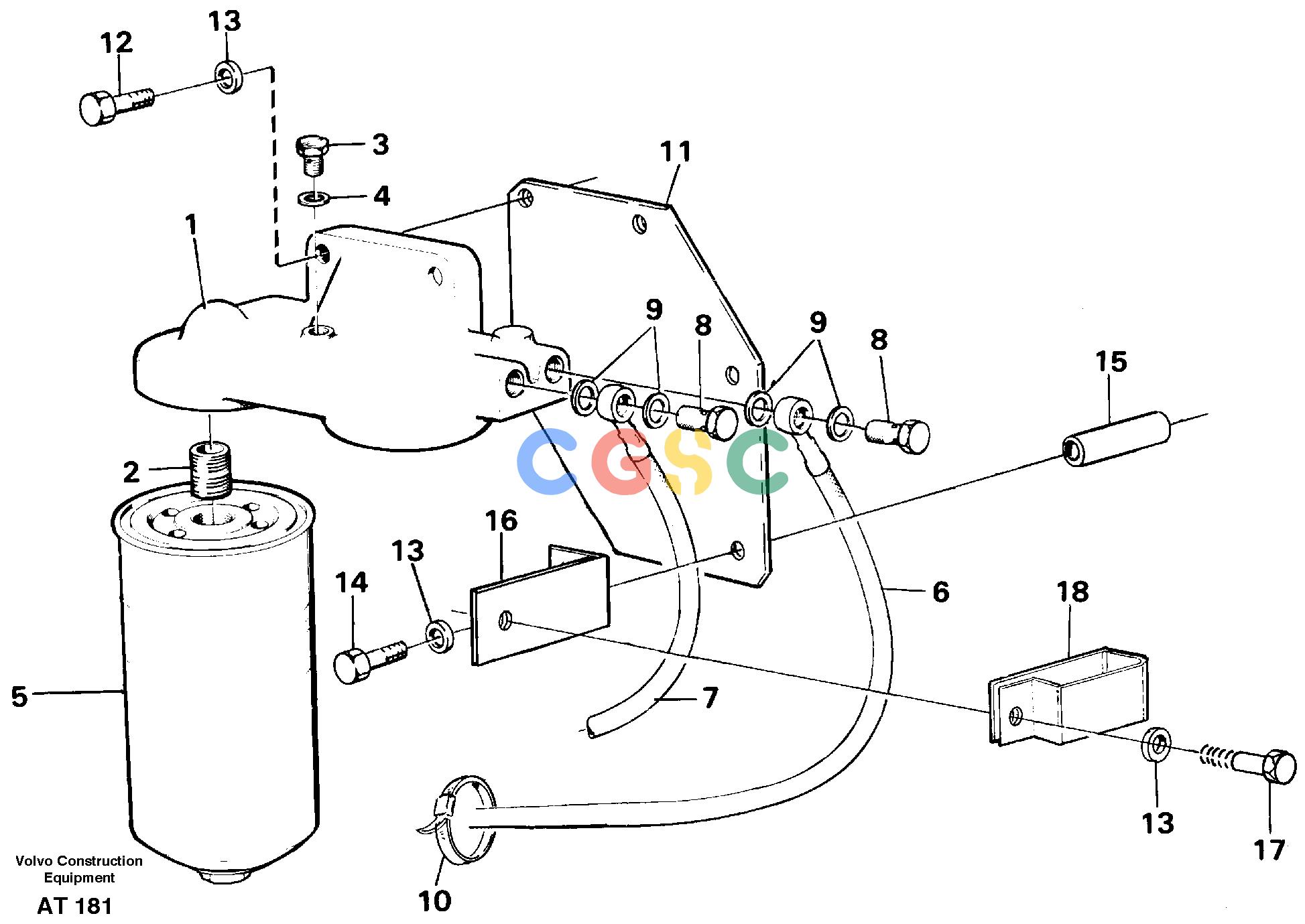

沃尔沃零件查询L90C Extra fuel filterNone NoneNone92787Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE787029
|
[1] |
Cover
|
|
| 2. |
VOE781644
|
[2] |
Nipple
|
|
| 3. |
VOE11000051
|
[1] |
Screw
|
|
| 4. |
VOE957171
|
[1] |
Gasket
|
|
| 5. |
VOE795210
|
[2] |
Fuel filter
|
|
| 6. |
VOE11014944
|
[1] |
Fuel hose
|
|
| 7. |
VOE11014943
|
[1] |
Fuel hose
|
|
| 8. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 9. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 10. |
VOE4881440
|
[2] |
Cable tie
|
|
| 11. |
VOE11014936
|
[1] |
Attachment
|
|
| 12. |
VOE60111880
|
[2] |
Hexagon screw
|
M8x40
|
| 13. |
VOE13955894
|
[7] |
Washer
|
|
| 14. |
VOE955312
|
[3] |
Hexagon screw
|
M8x150
|
| 15. |
VOE930457
|
[3] |
Spacer ring
|
|
| 16. |
VOE11024650
|
[2] |
Angle plate
|
|
| 17. |
VOE13955294
|
[2] |
Screw
|
M8x16
|
| 18. |
VOE13949386
|
[2] |
Clamp
|
|
