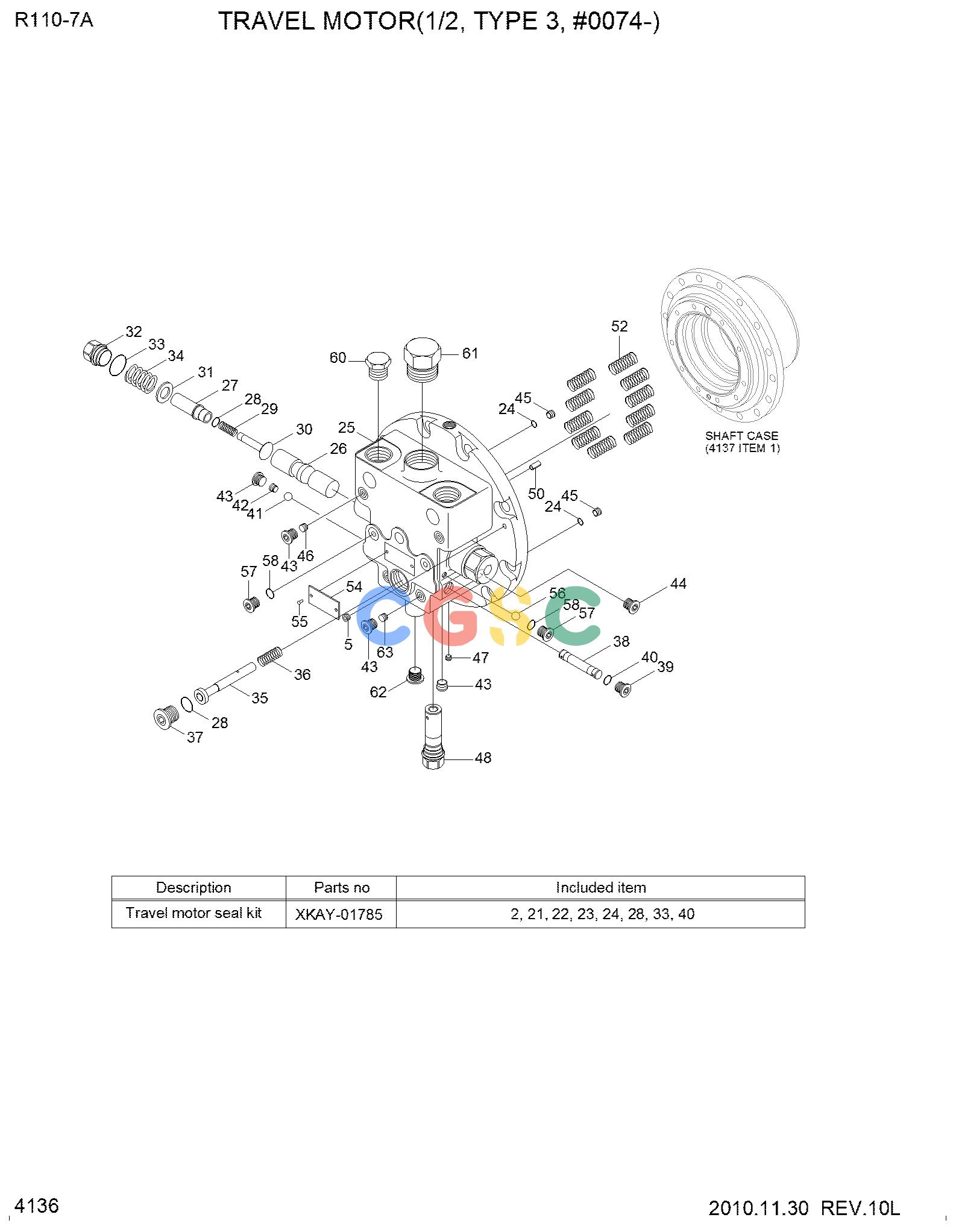

现代零件查询R110-7 TRAVEL MOTOR(1/2, TYPE 3, #0704-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N3-40040
|
[1] |
TRAVEL MOTOR
|
|
| -1. |
XKAY-01868
|
[1] |
TRAVEL MOTOR UNIT
|
|
| 5. |
XKAY-01303
|
[2] |
PIN
|
|
| 24. |
XKAY-00861
|
[2] |
O-RING
|
|
| 25. |
XKAY-01844
|
[1] |
VALVE CASING
|
|
| 26. |
XKAY-01808
|
[1] |
SPOOL-MAIN
|
|
| 27. |
XKAY-01807
|
[2] |
PLUG
|
|
| 28. |
XKAY-01806
|
[3] |
O-RING
|
|
| 29. |
XKAY-01805
|
[2] |
SPRING
|
|
| 30. |
XKAY-01804
|
[2] |
CHECK
|
|
| 31. |
XKAY-01803
|
[2] |
PLATE
|
|
| 32. |
XKAY-01802
|
[2] |
PLUG
|
|
| 33. |
XKAY-01801
|
[2] |
O-RING
|
|
| 34. |
XKAY-01800
|
[2] |
SPRING
|
|
| 35. |
XKAY-01799
|
[1] |
SPOOL
|
|
| 36. |
XKAY-01798
|
[1] |
SPRING
|
|
| 37. |
XKAY-01797
|
[1] |
PLUG
|
|
| 38. |
XKAY-01796
|
[1] |
PISTON
|
|
| 39. |
XKAY-01795
|
[2] |
PLUG
|
|
| 40. |
XKAY-00087
|
[2] |
O-RING
|
|
| 41. |
XKAY-00487
|
[1] |
BALL-STEEL
|
|
| 42. |
XKAY-01794
|
[1] |
ORIFICE
|
|
| 43. |
XKAY-00065
|
[6] |
PLUG
|
|
| 44. |
XKAY-00140
|
[2] |
PLUG
|
|
| 45. |
XKAY-01793
|
[2] |
ORIFICE
|
|
| 46. |
XKAY-01843
|
[2] |
ORIFICE
|
|
| 47. |
XKAY-00880
|
[5] |
PLUG
|
|
| 48. |
XKAY-01753
|
[2] |
PLUG-PF
|
|
| 50. |
XKAY-00864
|
[1] |
PIN
|
|
| 52. |
XKAY-01788
|
[10] |
SPRING
|
|
| 54. |
XKAY-01753
|
[1] |
PLUG-PF
|
|
| 55. |
XKAY-00517
|
[2] |
RIVET
|
|
| 56. |
XKAY-01786
|
[2] |
BALL-STEEL
|
|
| 57. |
XKAY-00943
|
[4] |
PLUG
|
|
| 58. |
XKAY-00945
|
[4] |
O-RING
|
|
| 60. |
XKAY-01784
|
[2] |
PLUG-PLASTIC
|
|
| 61. |
XKAY-01783
|
[1] |
PLUG-PLASTIC
|
|
| 62. |
XKAY-00515
|
[1] |
PLUG
|
|
| 63. |
XKAY-01841
|
[2] |
ORIFICE
|
|
