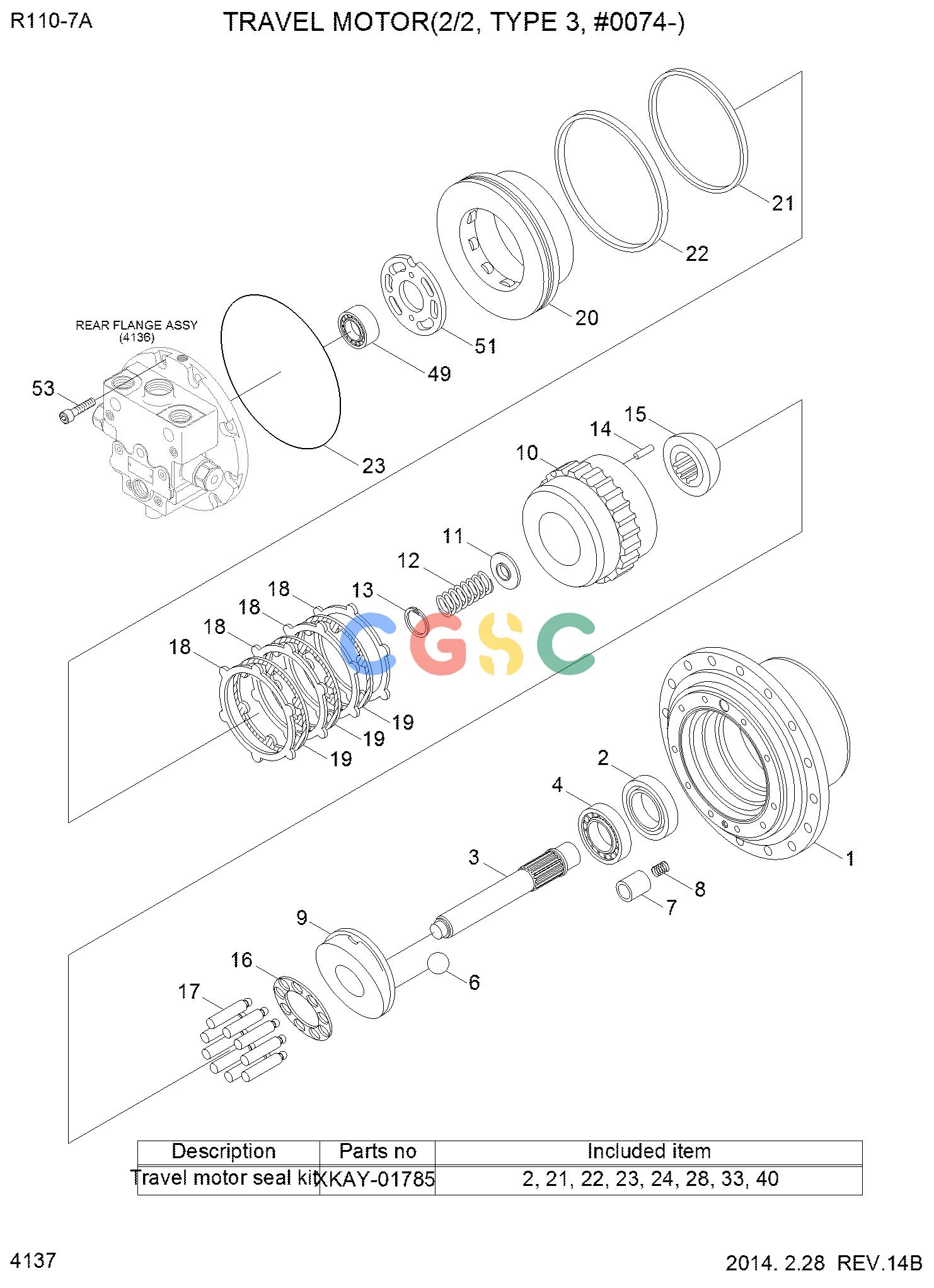

现代零件查询R110-7 TRAVEL MOTOR(2/2, TYPE 3, #0704-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -1. |
@
|
[1] |
TRAVEL MOTOR UNIT
|
|
| 1. |
XKAY-01847
|
[1] |
SHAFT CASING
|
|
| 2. |
XKAY-01836
|
[1] |
OIL SEAL
|
|
| 3. |
XKAY-01835
|
[1] |
SHAFT
|
|
| 4. |
XKAY-01834
|
[1] |
BEARING
|
|
| 6. |
XKAY-01833
|
[1] |
BALL-SWASH
|
|
| 7. |
XKAY-01846
|
[1] |
SWASH PISTON
|
|
| 8. |
XKAY-01830
|
[1] |
SPRING
|
|
| 9. |
XKAY-01832
|
[1] |
PISTON KIT-SWASH
|
|
| B. |
XKAY-01828
|
[1] |
ROTARY KIT
|
|
| B-1. |
XKAY-01827
|
[1] |
BLOCK KIT-CYLINDER
|
|
| 10. |
XKAY-01826
|
[1] |
BLOCK-CYLINDER
|
|
| 11. |
XKAY-01825
|
[1] |
SEAT-SPRING
|
|
| 12. |
XKAY-01824
|
[1] |
SPRING
|
|
| 13. |
XKAY-01823
|
[1] |
RING-SNAP
|
|
| 14. |
XKAY-01822
|
[1] |
PIN
|
|
| B-2. |
XKAY-01821
|
[1] |
RETAINER KIT
|
|
| 15. |
XKAY-01820
|
[1] |
GUIDE-BALL
|
|
| 16. |
XKAY-01828
|
[1] |
ROTARY KIT
|
|
| 16. |
XKAY-01818
|
[1] |
PISTON KIT
|
|
| 17. |
XKAY-01817
|
[1] |
PISTON
|
|
| 18. |
XKAY-01816
|
[4] |
PLATE-STEEL
|
|
| 19. |
XKAY-01815
|
[3] |
PLATE-FRICTION
|
|
| 20. |
XKAY-01814
|
[1] |
PISTON-BRAKE
|
|
| 21. |
XKAY-01813
|
[1] |
RING
|
|
| 22. |
XKAY-01812
|
[1] |
RING
|
|
| 23. |
XKAY-01811
|
[1] |
O-RING
|
|
| 49. |
XKAY-01790
|
[1] |
BEARING
|
|
| 51. |
XKAY-01789
|
[1] |
PLATE-VALVE
|
|
| 53. |
XKAY-00136
|
[1] |
BOLT-SOCKET
|
|
