卡特零件查询（725C） 380-2077: LINES GP-PUMP
广数供应链运营团队, 14 02月, 2025，浏览：
501 次

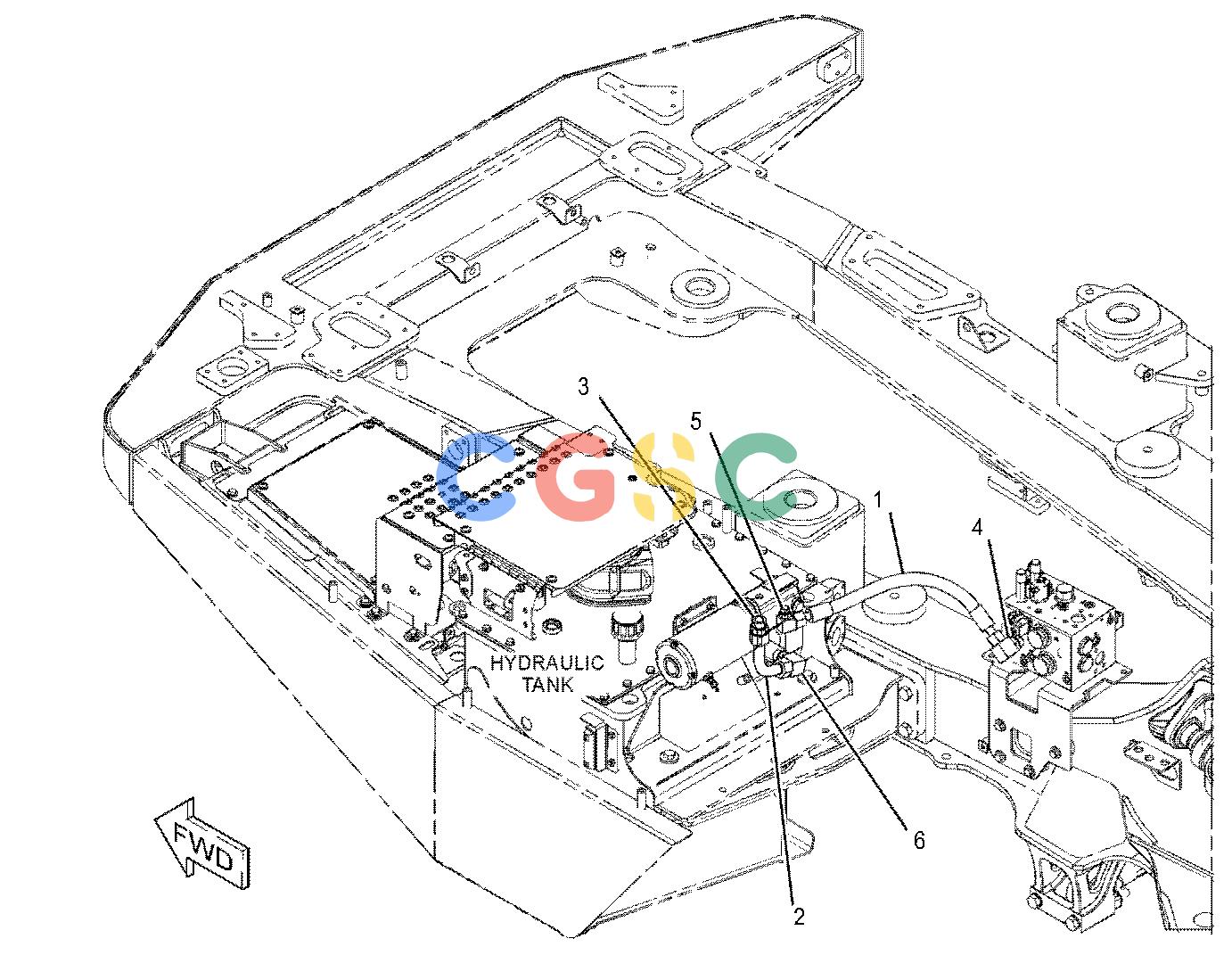

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 236-1074I | [1] | HOSE AS | |
| 2. | 383-5774 | [1] | TUBE AS | |
| 3. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 4. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8359 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9877 | [1] | ELBOW | |
| 6. | 148-8362 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6684 | [1] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
