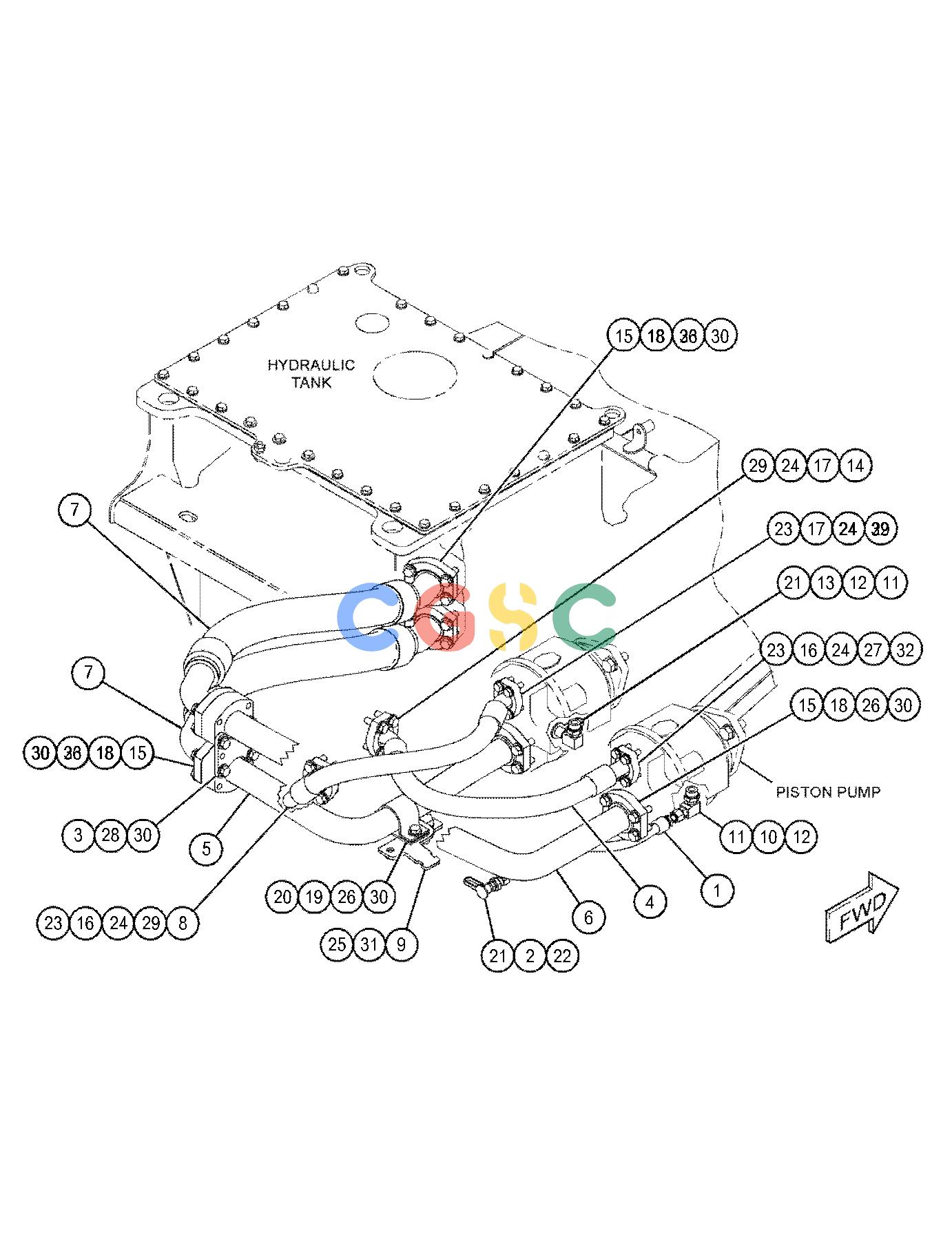

卡特零件查询（725C） 381-1659: LINES GP-PUMP
广数供应链运营团队, 14 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 361-3792I | [1] | HOSE AS | |
| 2. | 121-0530 | [1] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 3. | 236-9740 | [1] | PLATE-SUPPORT | |
| 4. | 388-5279I | [1] | HOSE AS | |
| 5. | 388-5281 | [1] | TUBE AS | |
| 6. | 388-5282 | [1] | TUBE AS | |
| 7. | 390-5191I | [2] | HOSE AS | |
| 8. | 424-2044I | [1] | HOSE AS | |
| 9. | 448-3022 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 10. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 11. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 12. | 150-4046 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 13. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 14. | 1P-4578 | [4] | FLANGE-HALF | |
| 15. | 1P-4582 | [12] | FLANGE-HALF | |
| 16. | 4J-0520 | [2] | SEAL-O-RING | |
| 17. | 4J-0522 | [2] | SEAL-O-RING | |
| 18. | 4J-0527 | [6] | SEAL-O-RING | |
| 19. | 5P-7468 | [1] | CLIP(SLOT) | |
| 20. | 5P-7469 | [1] | CLIP(TAB) | |
| 21. | 6V-0852 | [2] | CAP-DUST | |
| 22. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 23. | 8C-3206 | [4] | FLANGE-HALF | |
| 24. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 26. | 8T-4183M | [9] | BOLT(M12X1.75X40-MM) | |
| 27. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 28. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 29. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 30. | 8T-4223 | [29] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 8T-5460M | [1] | BOLT(M20X2.5X40-MM) | |
| 32. | 118-9573M | [6] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 33. | 436-5989M | [16] | BOLT-12 POINT HEAD(M12X1.75X40-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
