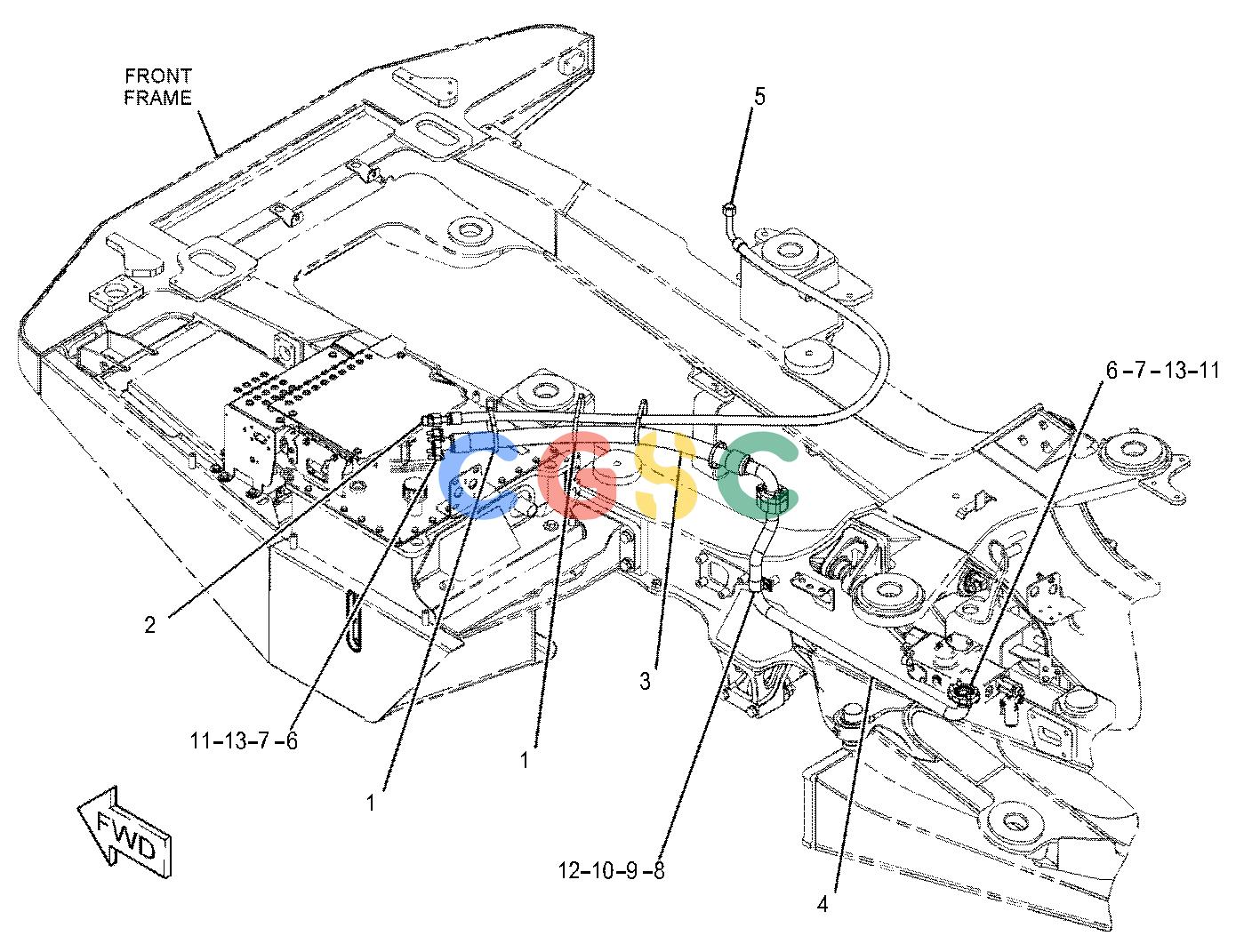

卡特零件查询（725C） 364-2900: LINES GP-RETURN
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [1] | STRAP | |
| 2. | 145-8983 | [1] | VALVE GP-CHECK(HYDRAULIC OIL COOLER BYPASS) | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 383-7947I | [1] | HOSE AS | |
| 4. | 390-5192 | [1] | TUBE AS | |
| 5. | 447-8376I | [1] | HOSE AS | |
| 6. | 1P-4579 | [6] | FLANGE-HALF | |
| 7. | 4J-0524 | [3] | SEAL-O-RING | |
| 8. | 7S-8920 | [1] | CLIP(SLOT) | |
| 9. | 7S-8921 | [1] | CLIP(TAB) | |
| 10. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 12. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 13. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
