纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.436[02]) - EQUIPMENT CONTROL VALVE - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
477 次

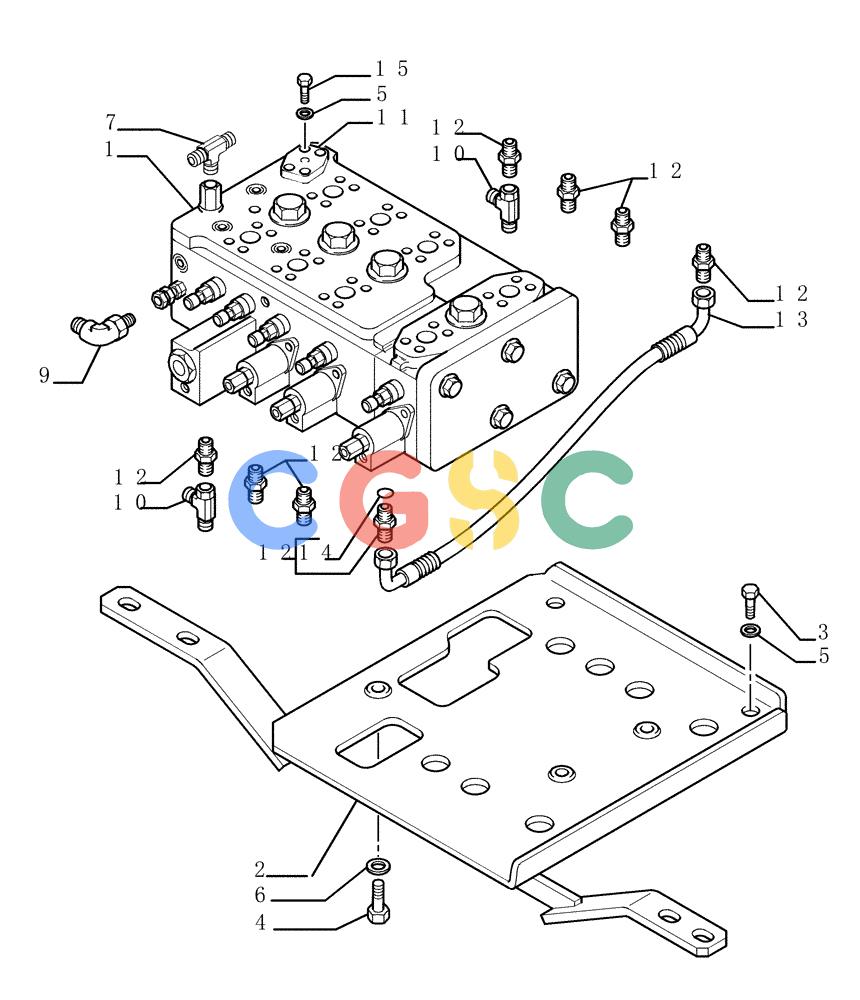

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040623 | [1] | CONTROL VALVE | LEC- REXROTH - SEE 3/436(2A) |
| 2. | 76069835 | [1] | SUPPORT | LEC |
| 3. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 4. | 11127531 | [3] | BOLT,Hex, M16 x 35, 10.9 | LEC Superseded by part number: 86529976 |
| 5. | 12648531 | [6] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 6. | 76036375 | [3] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | LEC |
| 7. | 71437620 | [1] | TEE | LEC9/16" |
| 9. | 79066302 | [1] | ELBOW | LECa90° 1/4G-9/16 |
| 10. | 79054269 | [2] | TEE | LEC |
| 11. | 76071034 | [2] | FLANGE | LEC |
| 12. | 79095838 | [9] | HYD CONNECTOR | LEC- ASSY 1/4G. 9/16"-18 1/4G-9/16" |
| 13. | 76069351 | [1] | HYDRAULIC HOSE | LEC |
| 14. | 70932571 | [1] | O-RING | LEC2,62X10,77 Superseded by part number: 14456981 |
| 15. | 11112831 | [4] | SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11125434 |
