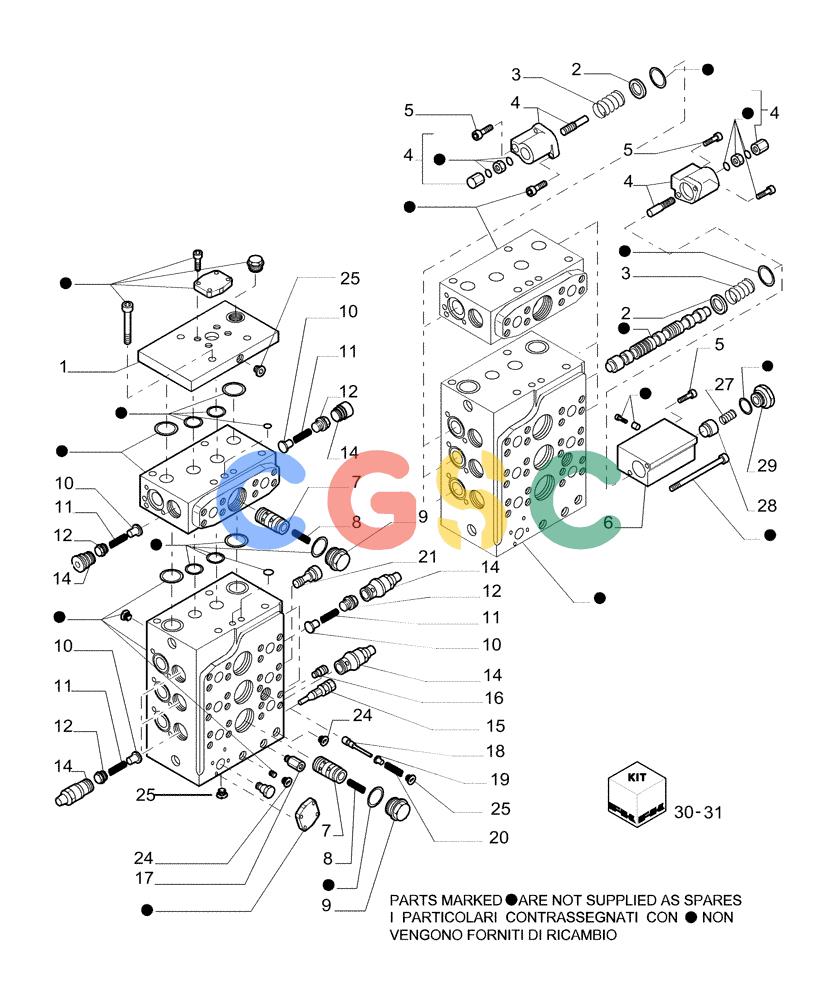

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.436[02A]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76079132 | [1] | PLATE | LECPLATE |
| 2. | 76079126 | [8] | CUP | LEC Superseded by part number: 8602918 |
| 3. | 76079127 | [8] | SPRING | LEC |
| 4. | 76079113 | [7] | COVER | LEC |
| 5. | 76079131 | [8] | PLUG | LEC |
| 6. | 76079082 | [1] | COVER | LEC |
| 7. | 76079123 | [4] | SPOOL | LEC |
| 8. | 76079124 | [4] | SPRING | LEC |
| 9. | 76079125 | [4] | PLUG | LEC |
| 10. | 76079105 | [8] | VALVE POPPET | LEC |
| 11. | 76079106 | [8] | SPRING | LEC |
| 12. | 76079107 | [8] | PLUG | LEC |
| 14. | 76079120 | [7] | PRESSURE RELIEF VALVE | LEC |
| 15. | 76079119 | [1] | PRESSURE RELIEF VALVE | LECPressure Relief Valve |
| 16. | 76079116 | [1] | HYDRAULIC VALVE | LECVALVE Superseded by part number: 8602915 |
| 17. | 76079118 | [1] | CHECK VALVE | LEC |
| 18. | 76079112 | [1] | SPOOL | LEC |
| 19. | 76079114 | [1] | CUP | LEC |
| 20. | 76079121 | [1] | SPRING | LECSPRING |
| 21. | 76079108 | [1] | PLUG | LEC |
| 24. | 76079110 | [3] | PLUG | LEC |
| 25. | 76079111 | [4] | PLUG | LEC |
| 27. | 76079128 | [1] | SPRING | LEC |
| 28. | 76079129 | [1] | SPOOL | LEC |
| 29. | 76079130 | [1] | ADAPTER | LEC |
| 30. | 76079133 | [1] | SEAL | LEC |
| 31. | 76079134 | [1] | SEAL KIT | LEC |
| 14A. | 71485878 | [9] | SEAL | SMKIT SEAL Superseded by part number: 76093090 |
| 15A. | 72116104 | [1] | SEAL KIT | LECKIT SEAL Superseded by part number: 87692469 |
| 16A. | 71475901 | [1] | SEAL | SMKIT SEAL Superseded by part number: 76093088 |
| 17A. | 71475903 | [1] | O-RING | SMO-RING Superseded by part number: 238-8016 |
