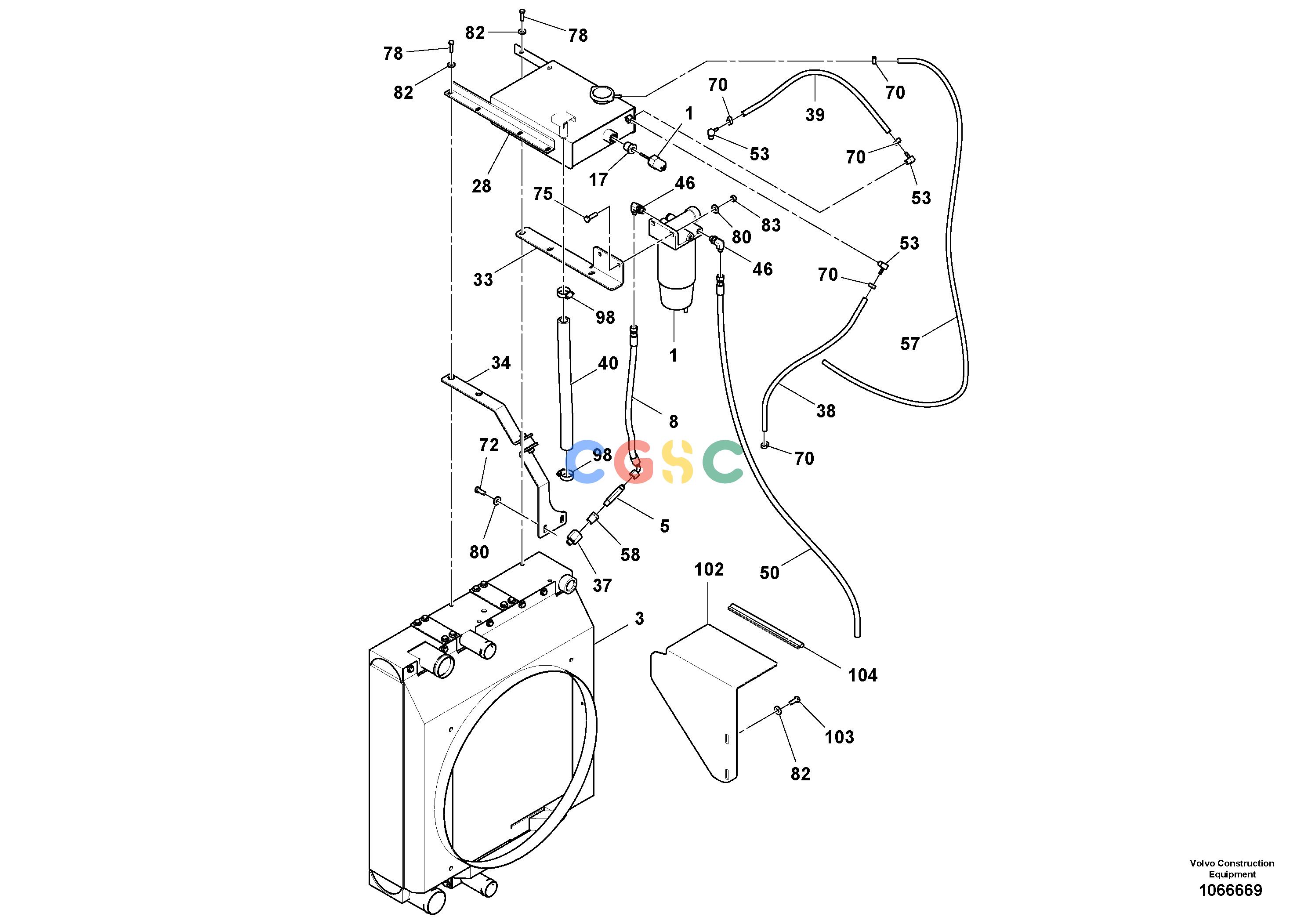

沃尔沃零件查询PF4410 Engine AssemblyS/N 375009- NoneNone46638987Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Engine
|
|
| 3. |
RM43967306
|
[1] |
Cooler
|
|
| |
RM46642195
|
[1] |
Charge air cooler
|
|
| |
RM46642203
|
[1] |
Radiator
|
|
| |
RM46642211
|
[1] |
Hyd Oil Cooler
|
|
| 5. |
RM10488567
|
[1] |
Adapter
|
|
| 8. |
RM13225446
|
[1] |
Hose assembly
|
|
| 17. |
RM43956762
|
[1] |
Nipple
|
|
| 28. |
RM43972934
|
[1] |
Expansion tank
|
|
| 33. |
RM12809274
|
[1] |
Bracket
|
|
| 34. |
|
[1] |
Radiator Mounting
|
|
| 37. |
RM43977941
|
[1] |
Adapter
|
|
| 38. |
RM43978519
|
[1] |
Hose
|
|
| 39. |
RM43978592
|
[1] |
Hose
|
|
| 40. |
RM43978824
|
[1] |
Hose assembly
|
|
| 46. |
RM54612023
|
[2] |
Adapter
|
|
| 50. |
RM13267703
|
[1] |
Fuel hose
|
|
| 53. |
RM59214627
|
[3] |
Nipple
|
|
| 57. |
RM13635248
|
[5] |
Radiator hose
|
|
| 58. |
RM59924233
|
[1] |
Reducer
|
|
| 64. |
RM46648101
|
[1] |
Bracket
|
|
| 66. |
RM95302147
|
[2] |
Elbow nipple
|
|
| 67. |
RM58848979
|
[1] |
Wrapper
|
|
| 70. |
RM50274299
|
[6] |
Hose clamp
|
|
| 72. |
RM96702287
|
[15] |
Hexagon screw
|
|
| 75. |
RM96704309
|
[2] |
Hexagon screw
|
|
| 77. |
RM96702279
|
[10] |
Hexagon screw
|
|
| 78. |
RM96705439
|
[6] |
Hexagon screw
|
|
| 80. |
RM96712849
|
[15] |
Plain washer
|
|
| 82. |
RM96712674
|
[23] |
Plain washer
|
|
| 83. |
VOE983313
|
[4] |
Lock nut
|
|
| 92. |
RM95426359
|
[1] |
Hose clamp
|
|
| 98. |
RM95302675
|
[2] |
Hose clamp
|
|
| 102. |
VOE12763348
|
[1] |
Plate
|
|
| 103. |
RM96702261
|
[2] |
Hexagon screw
|
|
| 104. |
RM59208819
|
[REQ] |
Seal
|
L = 750MM
|
