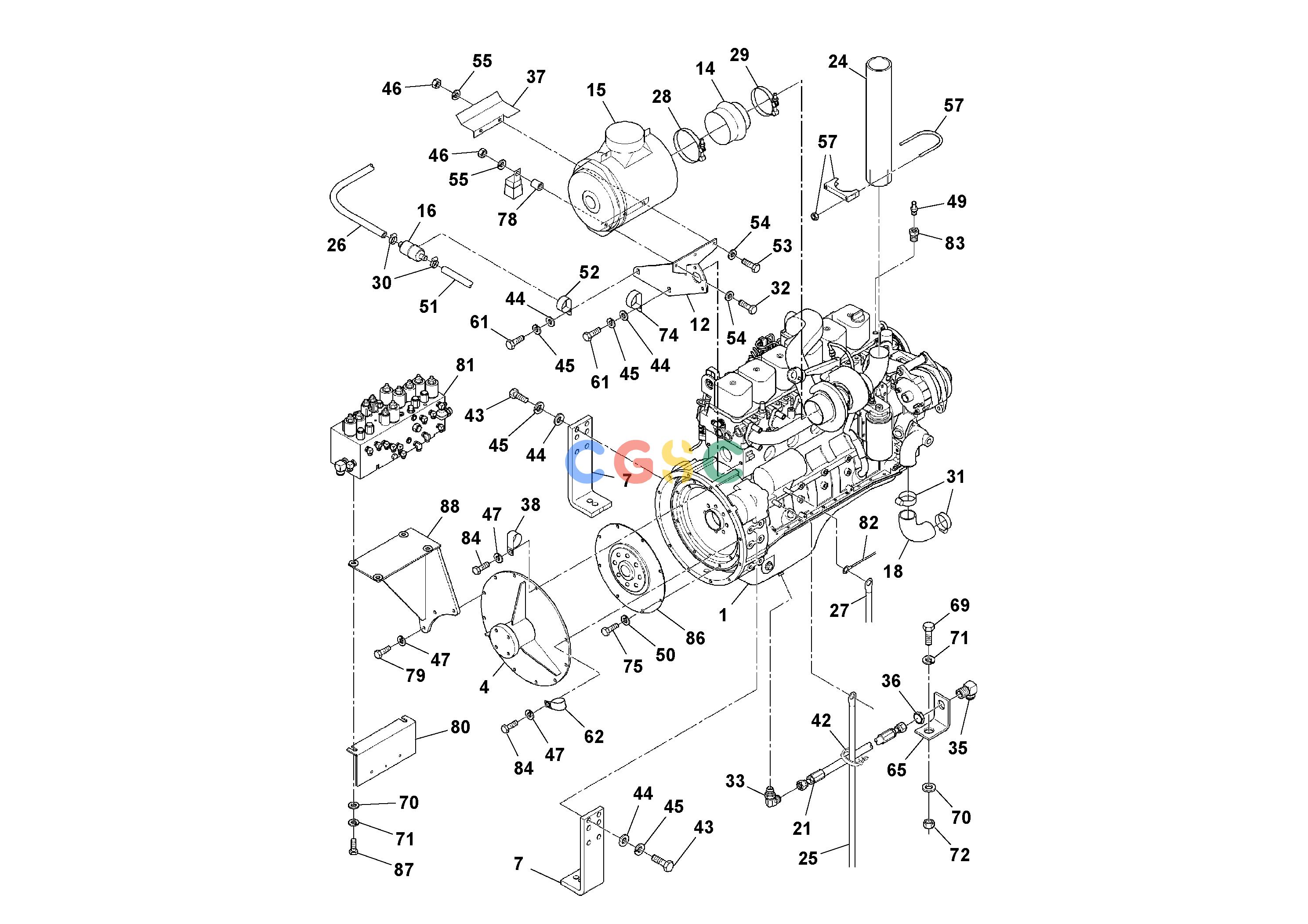

沃尔沃零件查询PF4410 Engine assemblyS/N 197449-VOE21A9920183 A-01A-NoneNoneNoneSN 173288, 20364089Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM20358255
|
[1] |
Engine
|
|
| |
VOE15155622
|
[1] |
Filter
|
|
| |
RM20373445
|
[1] |
Fan belt
|
|
| |
RM20373429
|
[1] |
Fuel filter
|
|
| 4. |
RM20315222
|
[1] |
Output shaft
|
|
| 7. |
RM15603681
|
[2] |
Engine anchorage
|
|
| 12. |
RM20364923
|
[1] |
Bracket
|
|
| 14. |
RM20210167
|
[1] |
Hose
|
|
| 15. |
RM20188116
|
[1] |
Air cleaner
|
|
| 16. |
VOE11715001
|
[1] |
Strainer
|
|
| 18. |
RM20364055
|
[1] |
Radiator hose
|
|
| 21. |
RM20200283
|
[1] |
Hose assembly
|
|
| 24. |
RM20308581
|
[1] |
Exhaust pipe
|
|
| 25. |
RM20367264
|
[1] |
Battery cable
|
|
| 26. |
RM13811963
|
[1] |
Fuel hose
|
|
| 27. |
RM13699673
|
[1] |
Battery cable
|
|
| 28. |
RM20304960
|
[1] |
Clamp
|
|
| 29. |
RM20304952
|
[1] |
Clamp
|
|
| 30. |
RM20935839
|
[2] |
Hose clamp
|
|
| 31. |
RM95278008
|
[5] |
Hose clamp
|
|
| 32. |
RM20333068
|
[1] |
Hexagon screw
|
|
| 33. |
RM20197323
|
[1] |
Adapter
|
|
| 35. |
RM20945473
|
[1] |
Fitting
|
|
| 36. |
RM20935524
|
[1] |
Nut
|
|
| 37. |
RM20302972
|
[1] |
Heat shield
|
|
| 38. |
RM20935987
|
[1] |
Clamp
|
|
| 42. |
RM20933677
|
[7] |
Cable
|
|
| 43. |
RM20952487
|
[8] |
Hexagon screw
|
|
| 44. |
RM20954764
|
[14] |
Plain washer
|
|
| 45. |
RM20954574
|
[14] |
Lock washer
|
|
| 46. |
RM20922068
|
[3] |
Nut
|
|
| 47. |
RM20954566
|
[17] |
Lock washer
|
|
| 49. |
RM59302554
|
[1] |
Temperature sensor
|
|
| 50. |
RM20922597
|
[39] |
Lock washer
|
|
| 51. |
RM13811716
|
[1] |
Hose assembly
|
|
| 52. |
RM20938098
|
[1] |
Hose clamp
|
|
| 53. |
RM20918827
|
[3] |
Hexagon screw
|
|
| 54. |
RM20922720
|
[7] |
Plain washer
|
|
| 55. |
RM95931382
|
[7] |
Lock washer
|
|
| 57. |
RM59534313
|
[1] |
Clamp
|
|
| 61. |
RM20206108
|
[6] |
Hexagon screw
|
|
| 62. |
RM20938064
|
[1] |
Hose clamp
|
|
| 65. |
RM15605066
|
[1] |
Angle bar
|
|
| 69. |
RM95920708
|
[1] |
Hexagon screw
|
|
| 70. |
RM20922761
|
[5] |
Plain washer
|
|
| 71. |
RM20334033
|
[5] |
Washer
|
|
| 72. |
RM95922902
|
[1] |
Hexagon nut
|
|
| 74. |
RM20938056
|
[1] |
Clamp
|
|
| 75. |
RM20919130
|
[8] |
Hexagon screw
|
|
| 78. |
RM20345674
|
[1] |
Insulator
|
|
| 79. |
RM15513872
|
[3] |
Hexagon screw
|
|
| 80. |
RM13599204
|
[1] |
Relay plate
|
|
| 81. |
RM13598966
|
[1] |
Valve block
|
|
| 82. |
RM13598883
|
[1] |
Cable harness
|
|
| 83. |
RM20936993
|
[1] |
Bushing
|
|
| 84. |
RM20314092
|
[8] |
Hexagon screw
|
|
| 86. |
RM20329090
|
[1] |
Drive unit
|
|
| 87. |
RM20919304
|
[4] |
Set screw
|
|
| 88. |
RM13598925
|
[1] |
Bracket
|
|
