卡特零件查询（725C） 433-3255: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
561 次

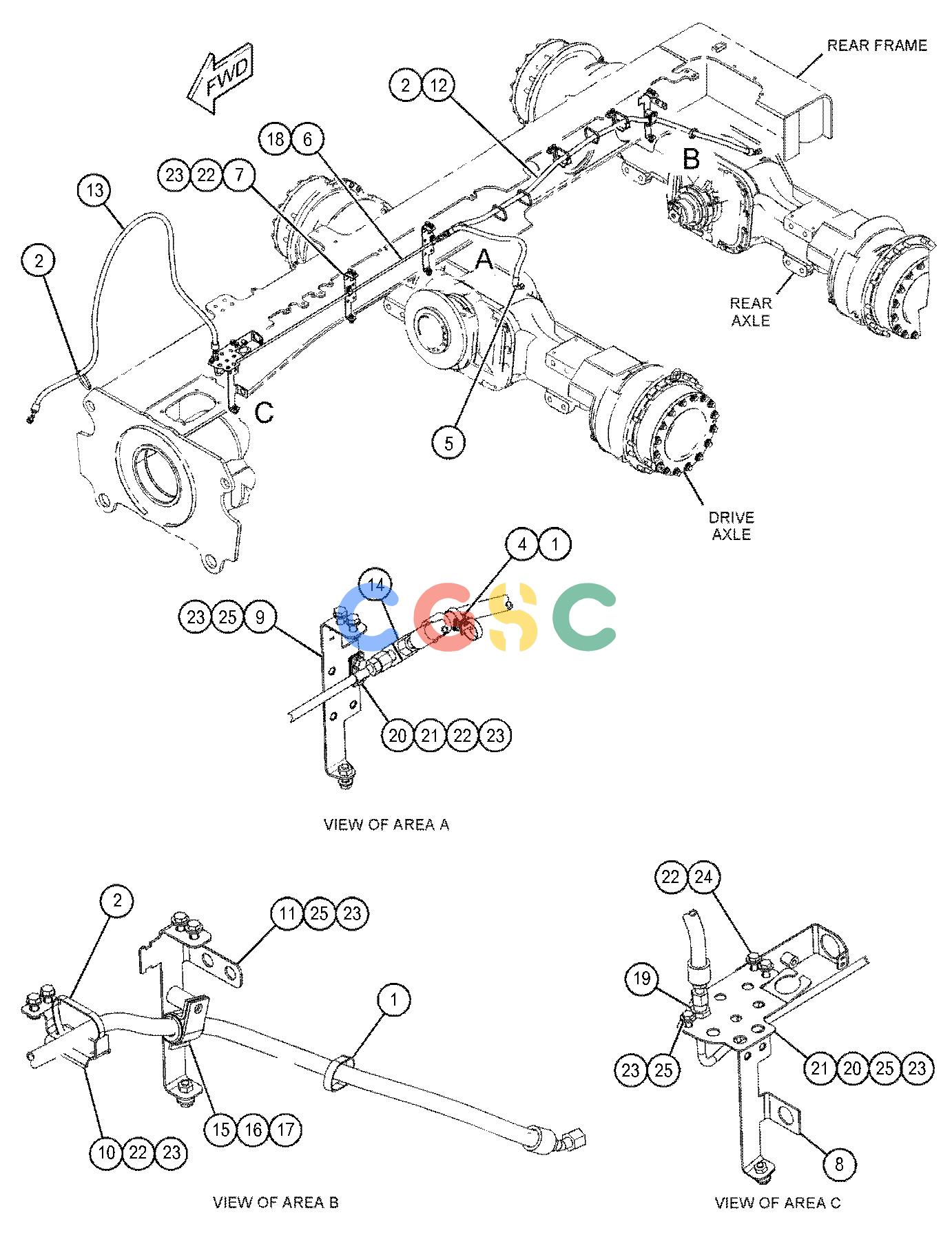

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [3] | STRAP | |
| 2. | 6U-0456 | [6] | STRAP | |
| 4. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 5. | 307-8800I | [1] | HOSE AS | |
| 6. | 383-1327 | [1] | TUBE AS | |
| 7. | 383-1447 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 8. | 494-1469 | [1] | BRACKET AS | |
| 9. | 395-0147 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 10. | 454-0475 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 11. | 495-4690 | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 9R-3845M | [1] | BOSS(M12X1.75X38-MM) | |
| 12. | 446-9100I | [1] | HOSE AS | |
| 13. | 447-0297I | [1] | HOSE AS | |
| 14. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 15. | 5P-7464 | [1] | CLIP(SLOT) | |
| 16. | 5P-7465 | [1] | CLIP(TAB) | |
| 17. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 18. | 6V-8398 | [2] | SEAL-O-RING | |
| 19. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 20. | 8T-1885 | [3] | CLIP(SLOT) | |
| 21. | 8T-1886 | [3] | CLIP(TAB) | |
| 22. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4195M | [18] | BOLT(M10X1.5X30-MM) | |
| 24. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 25. | 7X-7729 | [13] | WASHER(11X25X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
