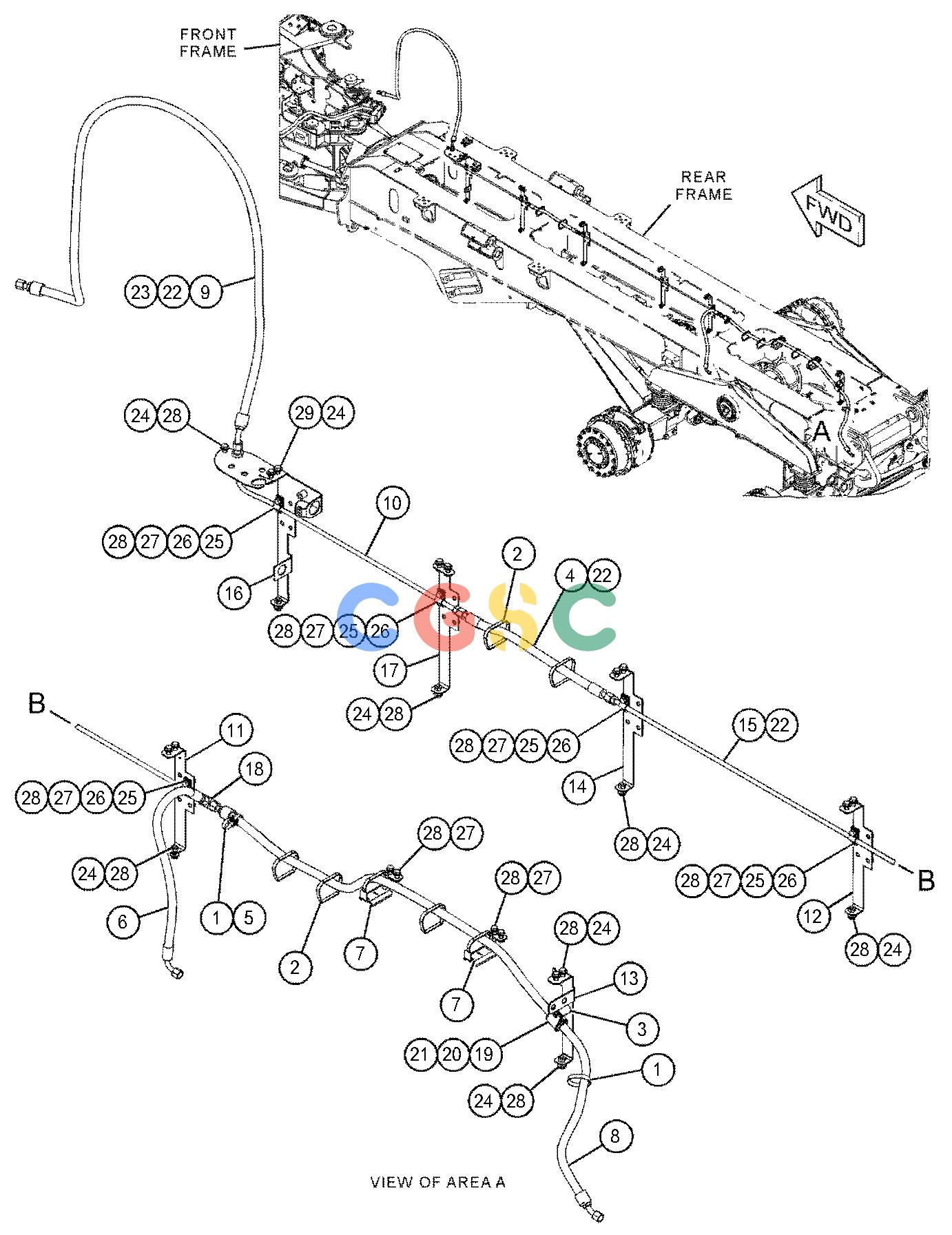

卡特零件查询（725C） 444-9018: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
221 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [3] | STRAP | |
| 2. | 6U-0456 | [7] | STRAP | |
| 3. | 209-7530 | [1] | SPACER(14X25X40-MM THK) | |
| 4. | 256-7508I | [1] | HOSE AS | |
| 5. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 6. | 307-8800I | [1] | HOSE AS | |
| 7. | 454-0475 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 8. | 446-9100I | [1] | HOSE AS | |
| 9. | 447-0297I | [1] | HOSE AS | |
| 10. | 454-7447 | [1] | TUBE AS | |
| 11. | 471-0945 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 12. | 471-0943 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 13. | 471-0941 | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 14. | 471-0947 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 15. | 454-8213 | [1] | TUBE AS | |
| 16. | 471-0937 | [1] | BRACKET AS | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2672M | [1] | BOSS-THREADED(M10X1.5X120-MM) | |
| 17. | 471-0939 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 18. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 19. | 5P-7464 | [1] | CLIP(SLOT) | |
| 20. | 5P-7465 | [1] | CLIP(TAB) | |
| 21. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 22. | 6V-8398 | [4] | SEAL-O-RING | |
| 23. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 24. | 7X-7729 | [19] | WASHER(11X25X3-MM THK) | |
| 25. | 8T-1885 | [5] | CLIP(SLOT) | |
| 26. | 8T-1886 | [5] | CLIP(TAB) | |
| 27. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4195M | [26] | BOLT(M10X1.5X30-MM) | |
| 29. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
