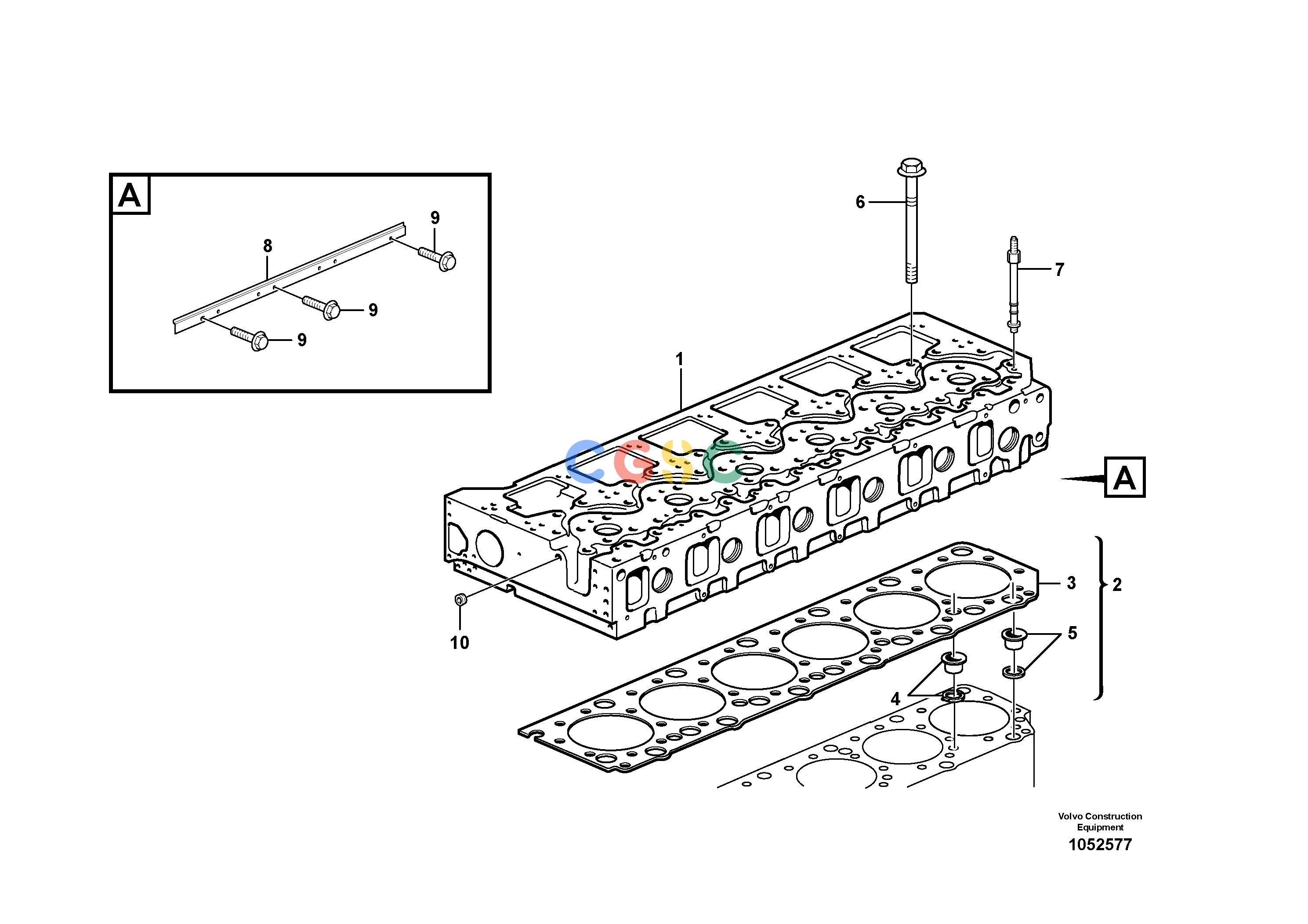

沃尔沃零件查询PL4608 Cylinder head with fitting partsS/N 110001 - 1100868279675-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
VOE3099100
|
[1] |
Gasket kit
|
|
| 3. |
VOE20412953
|
[1] |
Gasket
|
|
| 4. |
|
[18] |
Seal Ring
|
|
| 5. |
|
[4] |
Seal Ring
|
|
| 6. |
VOE21345131
|
[38] |
Flange screw
|
ENG - 649456
|
| 6. |
VOE21345131
|
[38] |
Flange screw
|
ENG 649457 -
|
| 7. |
VOE21344784
|
[9] |
Stud
|
ENG - 651827
|
| 7. |
VOE21344784
|
[9] |
Stud
|
ENG 651828 -
|
| 8. |
VOE20566300
|
[1] |
Heat shield
|
|
| 9. |
VOE946441
|
[4] |
Flange screw
|
L = 20 MM
|
| 10. |
VOE990831
|
[1] |
Plug
|
M16
|
