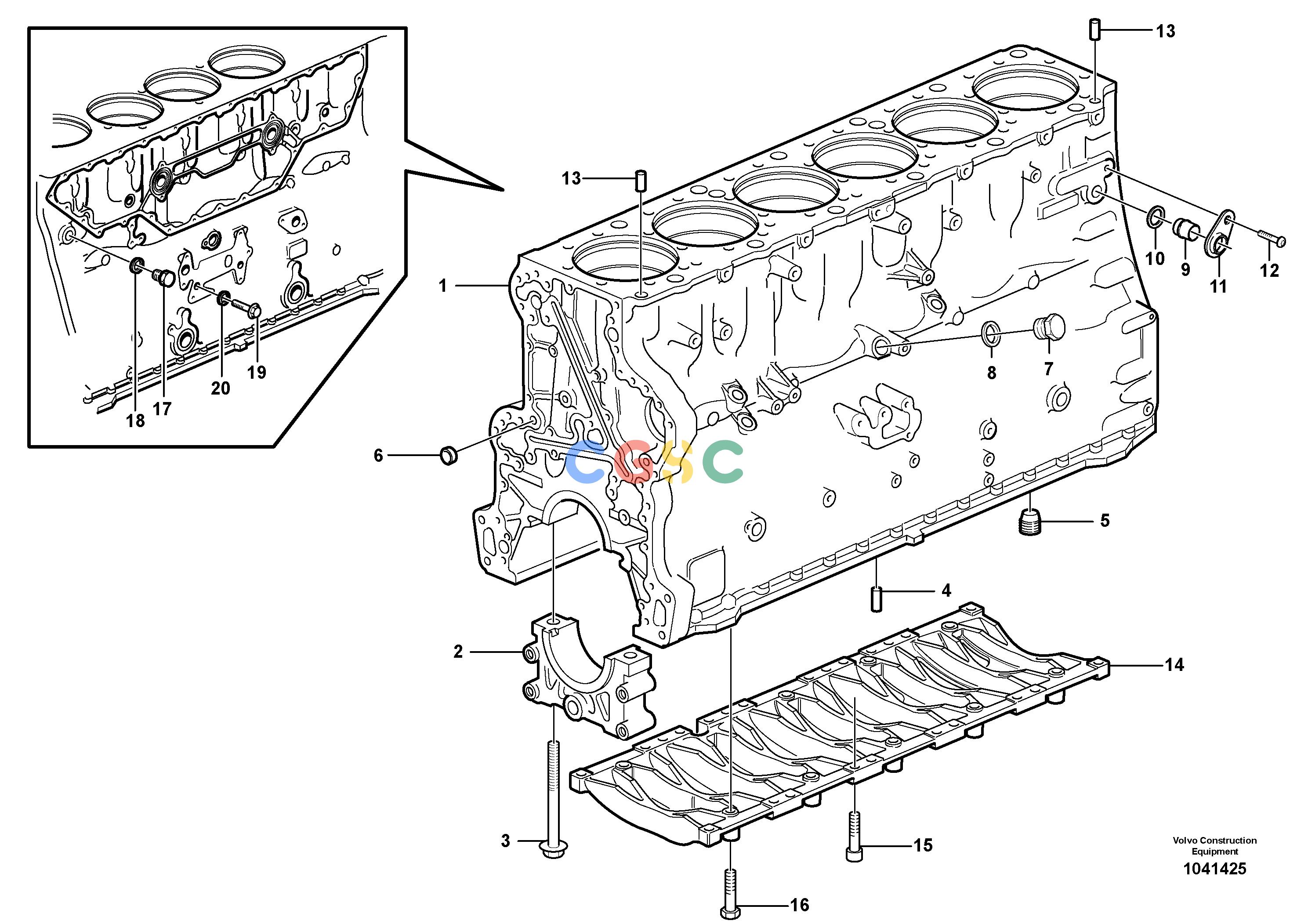

沃尔沃零件查询PL4608 Cylinder blockS/N 110001 - 1100868279675-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
675 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE8130120
|
[1] |
Cylinder block
|
|
| 1. |
VOE8130121
|
[1] |
Cylinder Block
|
|
| 2. |
|
[7] |
Cap
|
|
| 3. |
VOE21345129
|
[14] |
Flange screw
|
|
| 4. |
VOE422426
|
[1] |
Pin
|
|
| 5. |
VOE8170666
|
[1] |
Plug
|
|
| 6. |
VOE981735
|
[1] |
Cap plug
|
|
| 7. |
VOE960631
|
[1] |
Plug
|
|
| 8. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 9. |
VOE1546528
|
[1] |
Plug
|
|
| 10. |
VOE1547252
|
[1] |
Sealing ring
|
|
| 11. |
VOE20718731
|
[1] |
Yoke
|
|
| 12. |
VOE13972542
|
[1] |
Six point socket screw
|
|
| 13. |
VOE8170389
|
[2] |
Guide sleeve
|
|
| 14. |
VOE3183414
|
[1] |
Frame
|
|
| 15. |
VOE973523
|
[20] |
Hex. socket screw
|
|
| 16. |
VOE13965187
|
[6] |
Screw
|
|
| 17. |
VOE13960634
|
[1] |
Plug
|
|
| 18. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 19. |
VOE946440
|
[1] |
Flange screw
|
|
| 20. |
VOE7011992
|
[1] |
Gasket
|
|
