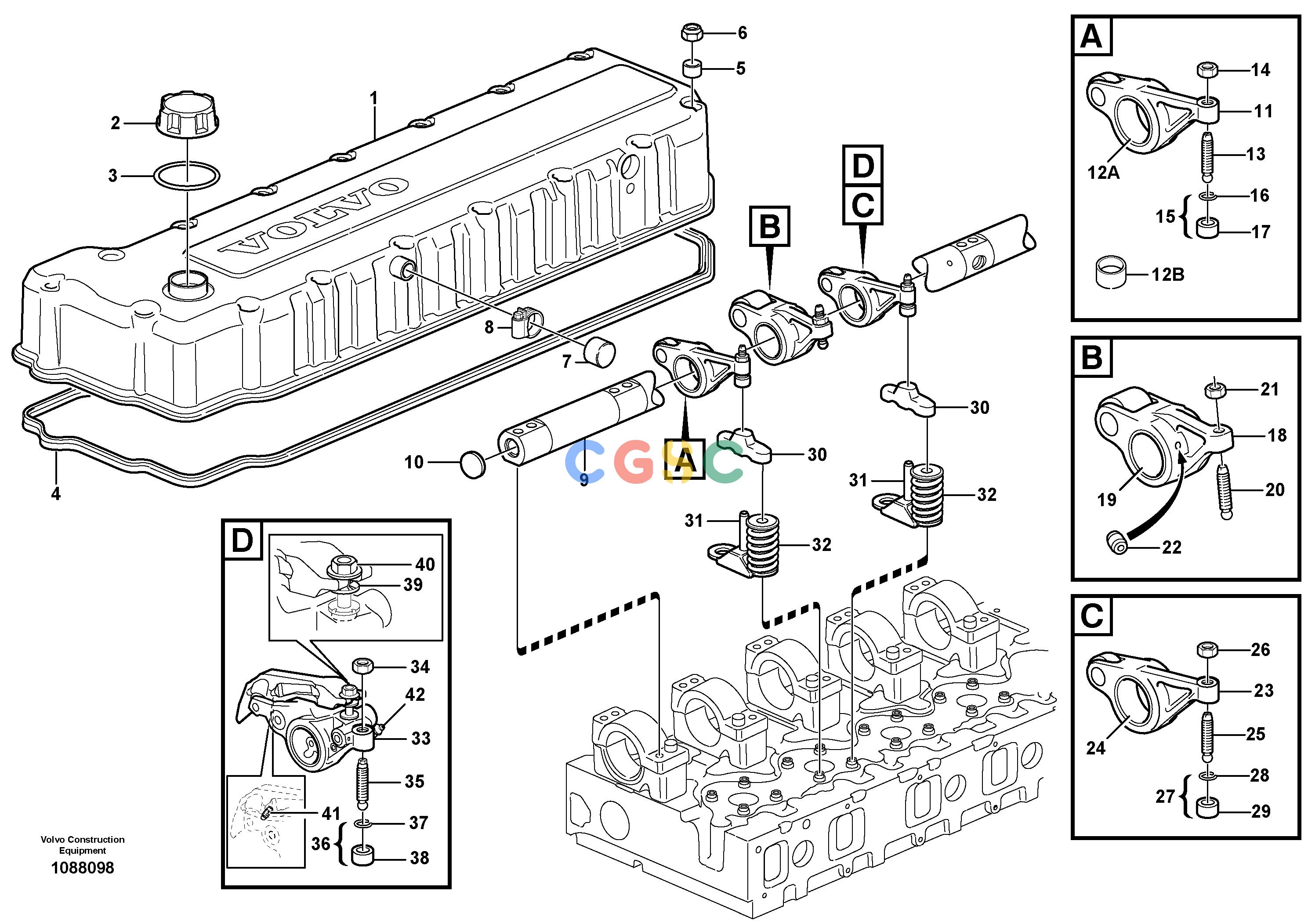

沃尔沃零件查询PL4611 Valve mechanismNone8279675-NoneVOE8279675NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE21052622
|
[1] |
Valve cover
|
(VOE 8130100)
|
| 1. |
VOE20545681
|
[1] |
Valve Cover
|
|
| 2. |
VOE20807510
|
[1] |
Oil filler cap
|
|
| 3. |
|
[1] |
Gasket
|
|
| 4. |
VOE21123014
|
[1] |
Sealing strip
|
|
| 5. |
VOE3964604
|
[16] |
Bushing
|
|
| 6. |
VOE8148488
|
[16] |
Lock nut
|
|
| 7. |
VOE424543
|
[1] |
Rubber cap
|
E PROD
|
| 8. |
VOE943476
|
[1] |
Hose clamp
|
E PROD
|
| |
|
|
None
|
|
| |
VOE8170158
|
[1] |
Rocker arm shaft
|
|
| 9. |
VOE8170159
|
[1] |
Rocker arm shaft
|
|
| 10. |
VOE980176
|
[2] |
Expansion plug
|
|
| |
|
|
None
|
|
| |
VOE21024794
|
[6] |
Rocker arm
|
INLET
|
| |
VOE1547965
|
[6] |
Rocker arm
|
|
| 11. |
VOE1546690
|
[6] |
Rocker arm
|
|
| 12A. |
VOE17262561
|
[6] |
Bushing
|
|
| 12B. |
VOE1546046
|
[6] |
Bushing
|
|
| 13. |
VOE1546458
|
[6] |
Ball stud
|
|
| 14. |
VOE13946911
|
[6] |
Nut
|
|
| 15. |
VOE20441753
|
[6] |
Ball socket
|
|
| 16. |
VOE944364
|
[6] |
O-ring
|
|
| 17. |
VOE20441755
|
[6] |
Ball socket
|
|
| |
|
|
None
|
|
| |
VOE21089229
|
[6] |
Rocker arm
|
INJECTOR
|
| 18. |
VOE3155126
|
[6] |
Rocker arm
|
|
| |
VOE20381704
|
[6] |
Rocker arm
|
|
| 19. |
VOE3155127
|
[6] |
Bushing
|
|
| |
VOE1546685
|
[6] |
Bushing
|
|
| 20. |
VOE1546775
|
[6] |
Ball stud
|
|
| 21. |
VOE1677396
|
[6] |
Hexagon nut
|
|
| 22. |
VOE3964817
|
[12] |
Jet
|
|
| |
|
|
None
|
|
| |
VOE21024789
|
[6] |
Rocker arm
|
EXHAUST
|
| |
VOE1547964
|
[6] |
Rocker Arm
|
|
| 23. |
VOE1546688
|
[6] |
Rocker arm
|
|
| 24. |
VOE17262561
|
[6] |
Bushing
|
|
| 25. |
VOE1546458
|
[6] |
Ball stud
|
|
| 26. |
VOE13946911
|
[6] |
Nut
|
|
| 27. |
VOE20441753
|
[6] |
Ball socket
|
|
| 28. |
VOE944364
|
[6] |
O-ring
|
|
| 29. |
VOE20441755
|
[6] |
Ball socket
|
|
| |
|
|
None
|
|
| 30. |
VOE3183207
|
[6] |
Valve cap
|
INLET
|
| |
VOE3183207
|
[6] |
Valve cap
|
OUTLET
|
| |
|
|
None
|
|
| 31. |
|
|
Guide Pin
|
|
| 32. |
|
[24] |
Valve spring
|
|
| |
|
|
None
|
|
| 33. |
VOE20941606
|
[6] |
Rocker arm
|
EXHAUST
|
| 34. |
VOE13946911
|
[6] |
Nut
|
|
| 35. |
VOE1546458
|
[6] |
Ball stud
|
|
| 36. |
VOE20441753
|
[6] |
Ball socket
|
|
| 37. |
VOE944364
|
[6] |
O-ring
|
|
| 38. |
|
[6] |
Ball Socket
|
|
| 39. |
VOE20524954
|
[6] |
Sleeve
|
|
| 40. |
VOE20524958
|
[6] |
Nut
|
|
| 41. |
VOE3964817
|
[6] |
Jet
|
|
| 42. |
VOE20916960
|
[6] |
Nipple
|
|
